MadgeTech IFC200 Data Logger Software Interface Package
|
Item Number: IFC200
Manufacturer: MadgeTech
Part Number: IFC200
* Whole number only
|
|

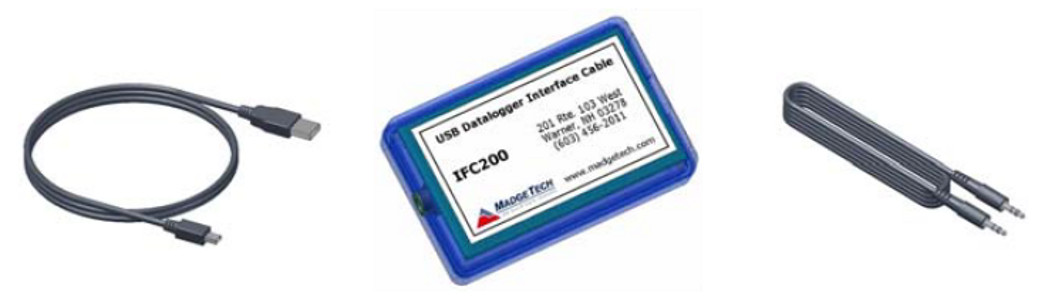

MadgeTech IFC200 Data Logger Software Interface Package
MadgeTech’s IFC200 interface cable communicates between stand alone data loggers and the MadgeTech software. Through this interface, loggers can be started, stopped or downloaded.
The IFC200 has been redesigned, and is now “plug and play”. It can be directly connected to a computer without installing any drivers and is compatible with Windows XP SP3, Windows Vista (32 and 64 bit), and Windows 7 (32 and 64 bit) operating systems. The improved IFC200 can now operate at up to 500 Volts RMS relative to the computer’s earth ground when attached.
The IFC200 is equipped with communication LEDs, that provide a quick indication of the device status. The blue light illuminates when the device is plugged in and successfully recognized by Windows. The red light flashes when data is sent, and the green light flashes when data is received.
Features
- USB enables most Madgetech data loggers
- Fully integrated into the MadgeTech software eliminating the need for complex Virtual COM port configuration
- Fast and user-friendly
- USB 2.0 compliant
- No power adapter required
- Allows for multiple devices on the same system
* Device drivers must be installed prior to connecting to a PC.Technical Specifications
| OS Compatibility: |
Compatible with Windows 2000/XP |
| USB Compatibility: |
USB 2.0, 1.1, 1.0 |
| USB Connection: |
Mini Type B |
| Logger Connection: |
3.5mm 3-pin audio input |
| Provided Cabling: |
6 ft (1.8m) Type A to Mini Type B USB cable;
6 ft (1.8m) 3.5mm audio plug to 3.5mm audio plug |
| Operating Environment: |
10 to 40°C, 10 to 80 %RH (non-condensing) |
| Storage Environment: |
-20 to 70°C, 0 to 90 %RH (non-condensing) |
|
