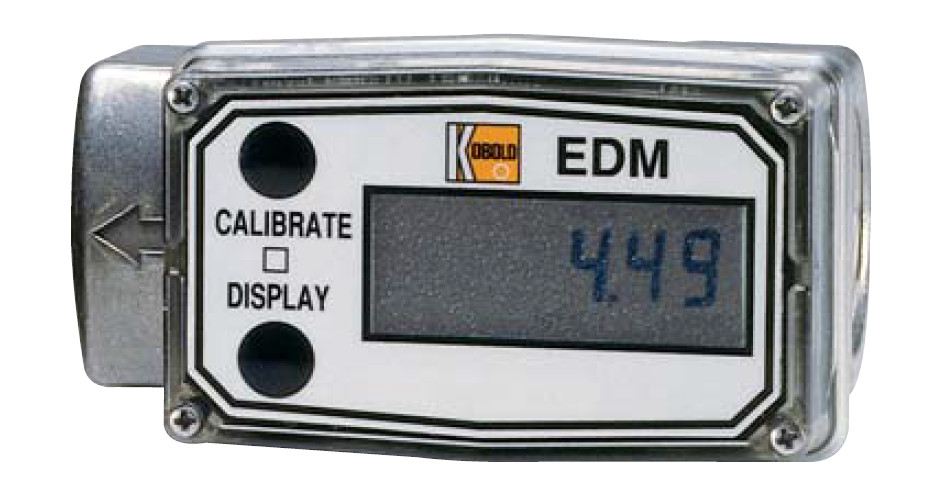

Kobold EDM Battery-Powered Flow Rate Meter and Totalizer (Stainless Steel)
|
Item Number: EDM-4200
Manufacturer: Kobold Instruments, Inc.
Part Number: EDM-4200
Product Options
* denotes required field
Kobold EDM Stainless Steel Model Selection*
You must select an option for 'Kobold EDM Stainless Steel Model Selection'.
Output Signal Options
Flanged & Sanitary Fitting Options
* Whole number only
|
|
Kobold EDM Battery-Powered Flow Rate Meter and Totalizer (Stainless Steel)
The KOBOLD EDM Series battery-powered turbine flowmeter measures the flow of water and low viscosity liquids ranging from 0.3 GPM to 600 GPM. Its replaceable lithium battery powers an on-board flow rate meter/totalizer, allowing installation in virtually any location, regardless of power availability. Results are displayed on a highly visible LCD readout. Versatile and easy to use, the EDM Series flowmeter and totalizer’s modular design allows KOBOLD to offer a variety of electronic modules to further enhance its versatility. Available options for most models include remote display, frequency output or a 4-20 mA analog signal output. Nylon, aluminum, PVC, PVDF or stainless steel body construction make the EDM Series battery-powered flow rate meter and totalizer compatible with a wide variety of process media. The upgraded computer electronics feature one rate and two totalizing LCD displays. Standard measuring units are field switchable between GPM and LPM.
Features
- Brass, SS, Aluminum, PVDF, or Nylon Bodies
- Battery Powered
- Compact and Portable
- Ranges: 0.3-3 GPM to 30–300 GPM
- Rate and Totaling Displays
- Analog or Frequency Outputs
- New and Improved Computer Electronics
Accuracy (% of Reading)
See ordering information
|
Wetted Materials
|
Fittings
Standard: NPT
Optional: ISO, fl anges, Tri-clamp®
|
SS Body: 316 SS, Ceramic,
PVDF, Tungsten Carbide |
Maximum Pressure
Stainless Steel
Threaded: 1500 PSIG
Flanged: 285 PSIG
Tri-clamp: 450 PSIG
Nylon: 150 PSIG
Aluminum: 300 PSIG
PVDF: 150 PSIG |
Nylon Body: Nylon, Ceramic,
Tungsten Carbide,
Manganese/zinc, 316 SS
Aluminum Body: Aluminum, 316 SS,
Tungsten Carbide,
Ceramic, Manganeze/zinc
PVDF Body: PVDF, Ceramic, Viton
|
Temperature Range (Operating)
Onboard Display: +14 to +140°F
Remote Display
SS/Aluminum: -40 to +250°F
Nylon/PVDF: -20 to 180°F
Display + Output: +14 to +140°F |
Electrical Ratings
Onboard Display/Computers
Input Power: Two 3 VDC lithium batteries
Battery Life: 9000 hours
Protection: NEMA 4
Option -RD: Remote Display Kit
Input Power: Self-powered magnetic pickup
Cable Length: 10 ft supplied,
100 ft maximum |
|
Kobold EDM (PVC) water flow range GPM is 1 - 600; LPM is 3.8 - 2271.
|
Kobold EDM (Aluminum) water flow range GPM is 1 - 300; LPM is 3.8 - 1000.
|
