Kobold EDM Battery-Powered Flow Rate Meter and Totalizer (PVC)

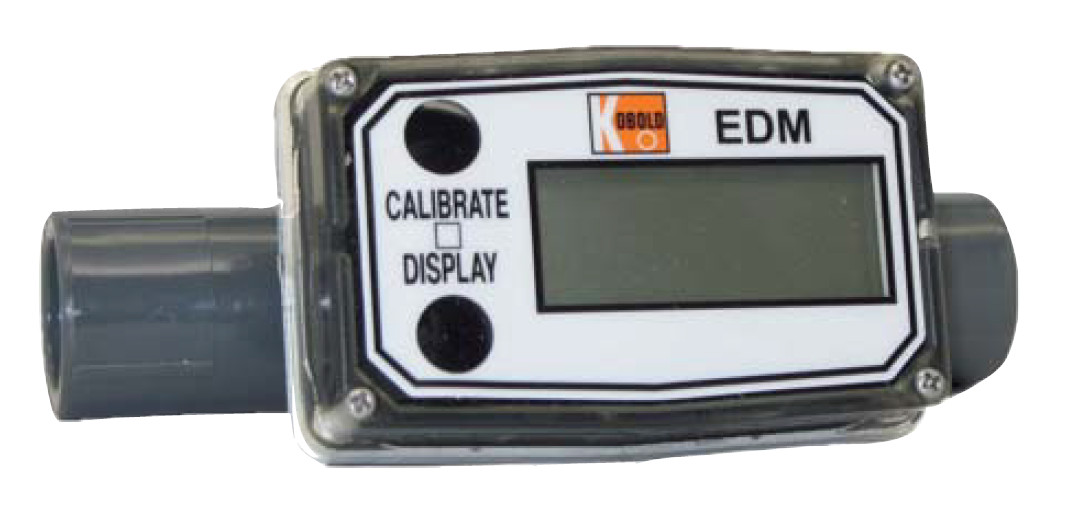

The EDM series water flowmeter is excellent for accurately totalizing water and other low viscosity liquids. It features an economical PVC body and lithium battery powered LCD display. The display has a resettable batch totalizer and a non-resettable grand totalizer, as well as rate indication. These displays are accessed by a toggle push button on the face. The EDM is factory calibrated for water flow. This calibration is valid for low viscosity liquids up to 10 centistokes viscosity. For higher viscosity liquids, a field calibration mode exists allowing the user to dispense a known volume of liquid in order to calibrate the EDM’s computer for the higher viscosity liquid.
The EDM electronic water meter is available in line sizes from 1/2 to 4 inches. Fittings available are PVC socket or NPT threads (150 LB ANSI Flanged connections also available for 3" and 4" units). The EDM series combines economy with a full featured electronics making it an excellent and economical replacement for metal body mechanical water totalizers.
Features
- Economical PVC Construction
- Flow rate Indication with Resettable and Non-Resettable Totalizers
- Flow Ranges 1-10 GPM through 60-600 GPM/ 3.8-38 LPM through 227-2271 LPM Water
- Lithium Battery Powered Indicator Requires no Local Supply Power
- Excellent Replacement for Mechanical Totalizers
Available Flow Ranges: 1-10 GPM to 60-600
GPM/ 3.8-38 LPM to
227-2271 LPM water
Allowable Liquids: Clean non-coating
liquids compatible
the with wetted parts
Accuracy: ±3% of reading
Repeatability: ±0.1% of reading
Max. Pressure: 225 PSIG at 70°F
Oper. Temp. Range: 32 to 140°F
Straight Piping Rqmt: 10 x D upstream,
5 x D downstream
|
Wetted Parts
Body: PVC
Rotor: PVDF (Kynar®),
Acetal (for 3" & 4" units)
Bearings: Ceramic,
PEEK (for 3" & 4" units)
Axle: Tungsten carbide
SS (for 3" & 4" units)
Retaining Ring: 316 SS
Display Power Source: 2 x 1.5V lithium batteries
Battery Life: 5 years
Power Saver Feature: Display blanks when fl ow
ceases for longer than one
minute.
Filtration Required: 60 mesh
Pulse Output Option: Open Collector (NPN)
|
|
Kobold EDM (Aluminum) water flow range GPM is 1 - 300; LPM is 3.8 - 1000.
|
Kobold EDM (Stainless Steel) water flow range GPM is 1 - 200; LPM is 3.8 - 760.
|
