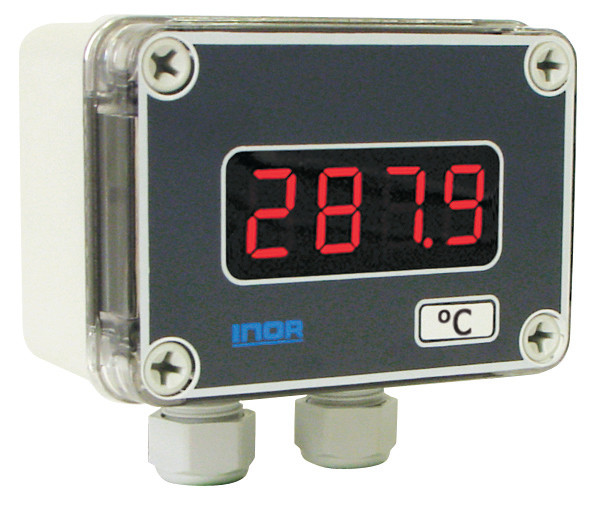

INOR LED-W11 Loop Powered LED Indicators for Field Mounting
|
Item Number: 70LEDW1101
Manufacturer: Inor Transmitter
Part Number: 70LEDW1101
Product Options
* denotes required field
INOR Model Selection*
You must select an option for 'INOR Model Selection'.
INOR Pipe Mounting Kit*
You must select an option for 'INOR Pipe Mounting Kit'.
INOR DIN-Rail Mounting Kit*
You must select an option for 'INOR DIN-Rail Mounting Kit'.
* Whole number only
|
|
INOR LED-W11 Loop Powered LED Indicators for Field Mounting
LED-W11 is equipped with bright, easy-to-read LED digits, and LCD-W11 comes with a high-contrast LCD display. Both indicators are designed for field mounting on wall, pipe or DIN rail and have a rugged and splash proof housing. The scale is easily programmable without reference signal. A temperature transmitter can be integrated for direct sensor input.
Features
-
Installation directly in a 4-20 mA loop without need for separate power supply
-
Simple pushbutton scaling without reference signal
-
Any range between -1999 to 9999 for 4 to 20 mA input
-
Labels for different engineering units are included
-
Typical accuracy of 0.05 % allows for high precision read-outs
-
HART transparent
-
Integrated transmitter as added option
-
Field mounting in rugged IP 65 / NEMA 4X housing with double cable conduits
-
LED-W11: Bright, 4-digit LED display with red 14.2 mm / 0.56 ” digits
Technical Specifications
LED-W11: Field mount, 4-digit loop powered LED indicator. 4-20 mA input. Scalable with push buttons.
Indicator LED-W11:

Dimensions:
|
INOR LCD-W11 is a digital indicators for installation directly in a 4-20 mA loop without need for external power. Also comes with a high-contrast LCD display.
|
INOR LED-W11X is an ATEX-approved, Intrinsically Safe 4-digit indicator for installation directly in a 4-20 mA loop without need for external power. The indicator is equipped with bright, easy-to-read LED digits.
|
