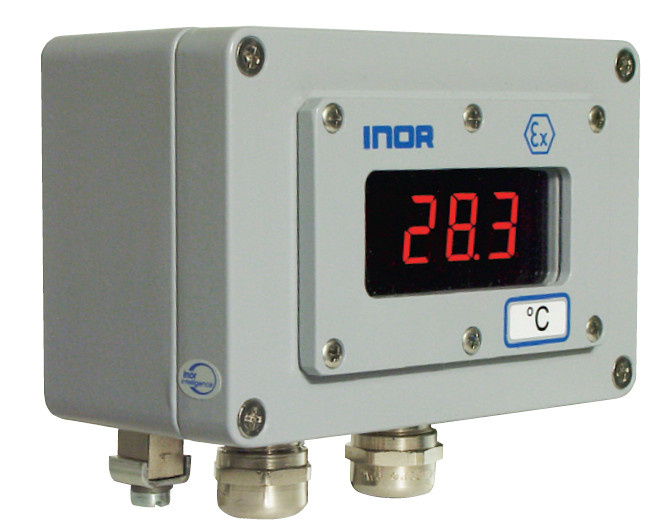

INOR LED-W11X Loop Powered, Ex-approved LED Indicator for Gas Zone 1 & 2 (Intrinsically Safe)
|
Item Number: 70LEDW11X1
Manufacturer: Inor Transmitter
Part Number: 70LEDW11X1
Product Options
* denotes required field
INOR Pipe Mounting Kit*
You must select an option for 'INOR Pipe Mounting Kit'.
INOR DIN-Rail Mounting Kit*
You must select an option for 'INOR DIN-Rail Mounting Kit'.
* Whole number only
|
|
INOR LED-W11X Loop Powered, Ex-approved LED Indicator for Gas Zone 1 & 2 (Intrinsically Safe)
LED-W11X is an ATEX-approved, Intrinsically Safe 4-digit indicator for installation directly in a 4-20 mA loop without need for external power. The indicator is equipped with bright, easy-to-read LED digits. LED-W11X is designed for field mounting on wall, pipe or DIN-rail and has a rugged and splash proof housing with protection IP65/NEMA 4X. The scale is easily programmable, without reference signal. A temperature transmitter can be integrated for direct sensor input.
Features
- Intrinsically Safe for gas Zone 1 & 2
- Bright, 4-digit LED display with red 14.2 mm (0.56 ”) digits
- Installation directly in a 4-20 mA loop without need for power supply
- Simple pushbutton scaling without reference signal
- Any range between -1999 to 9999 for 4 to 20 mA input
- Labels for different engineering units are included
- Typical accuracy of 0.05 % allows for high precision read-outs
- HART transparent
- Built-in temperature transmitter as an option
- Field mounting in rugged IP65 / NEMA 4X housing with double cable conduits

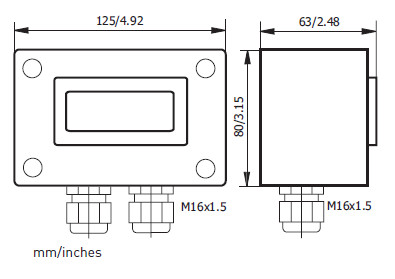

Dimensions

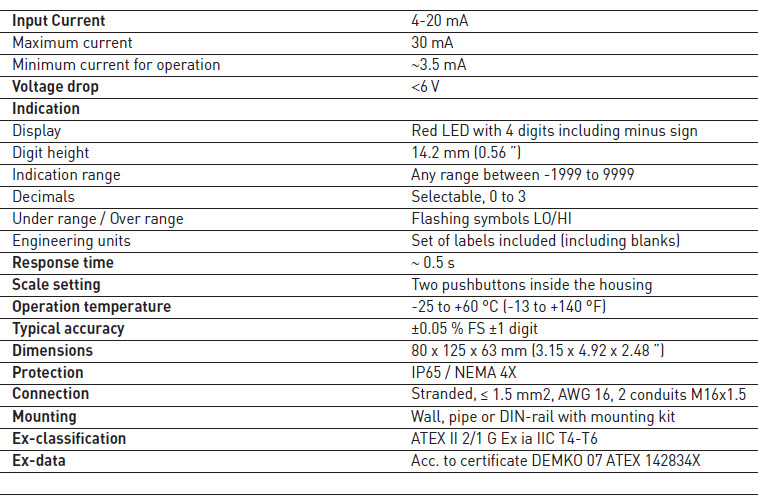

Technical Specificant
|
INOR LED-W11 is a digital indicators for installation directly in a 4-20 mA loop without need for external power.
| |
