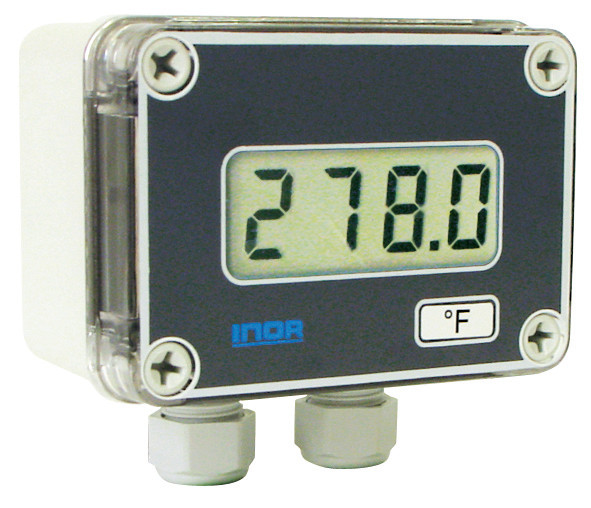

INOR LCD-W11 Loop Powered LCD Indicators for Field Mounting

INOR LCD-W11 Loop Powered LCD Indicators for Field Mounting

LED-W11 is equipped with bright, easy-to-read LED digits, and LCD-W11 comes with a high-contrast LCD display.  Both indicators are designed for field mounting on wall, pipe or DIN rail and have a rugged and splash proof housing. The scale is easily programmable without reference signal.  A temperature transmitter can be integrated for direct sensor input.

Features

• Installation directly in a 4-20 mA loop without need for separate power supply
• Simple pushbutton scaling without reference signal
• Any range between -1999 to 9999 for 4 to 20 mA input
• Labels for different engineering units are included
• Typical accuracy of 0.05 % allows for high precision read-outs
• HART transparent
• Integrated transmitter as added option
• Field mounting in rugged IP 65 / NEMA 4X housing with double cable conduits
• LCD-W11:  High-contrast, 4-digit LCD display with 17.8 mm / 0.7 ” digits

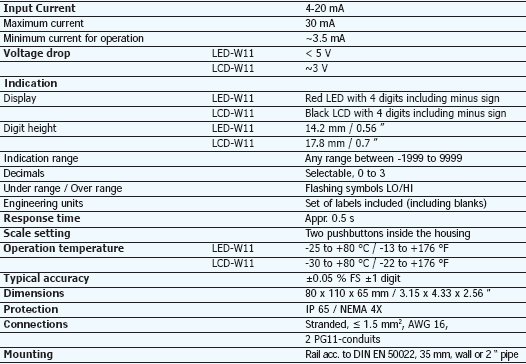

Technical Specifications

LCD-W11: Field mount, 4-digit loop powered LCD indicator. 4-20 mA input. Scalable with push buttons. IP65. 3 V drop.

Indicator LCD-W11:

Dimensions:

INOR LCD-W11 Data Sheet
