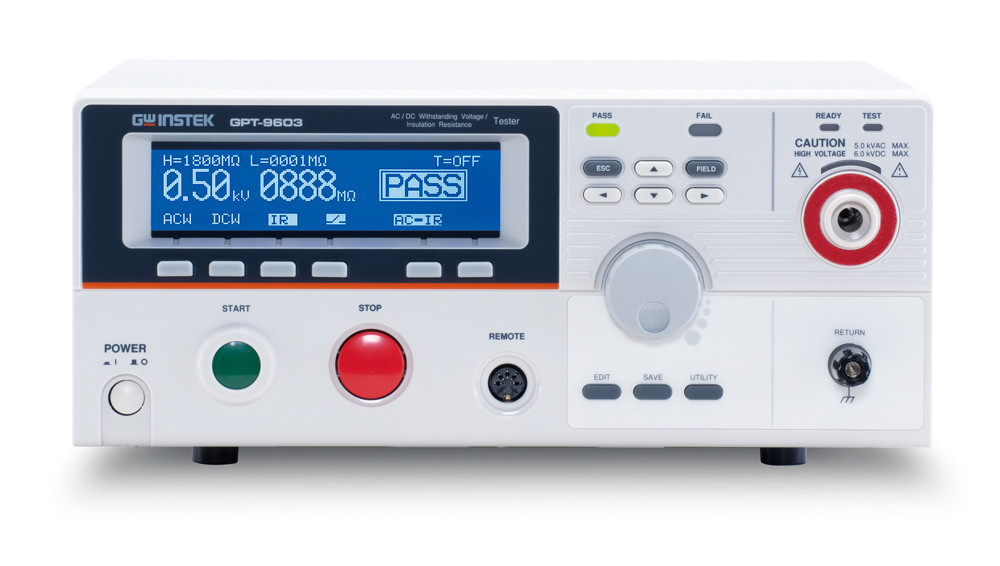

GW Instek GPT-9602 100VA AC/DC Withstanding Voltage Tester
|
Item Number: GPT-9602
Manufacturer: GW Instek
Part Number: GPT-9602
* Whole number only
|
|
GW Instek GPT-9602 100VA AC/DC Withstanding Voltage Tester
The GPT-9602 hipot voltage breakdown tester is capable of performing AC voltage testing up to 5000 volts and and DC withstandi tests to 6000 volts. It has never been easirer to meet safety standards to IEC, EN, UL, ETL, CSA, GB, JIS and others. The GPT-9601, GPT-9602, GPT-9603, and GPT-9612 are all equipped with the high-efficiency PWM amplifier.
Features
- 100VA AC Test Capacity
- 240x48 Ice Blue Dot matrix LCD
- Auto W-I or I-W Mode (IR Models)
- ARC Detection
- True RMS Current Measurement
- Zero Crossing Turn-on Operation
- Safety INTERLOCK function
- PWM amplifier to enhance the power efficiency and reliable testing
- Automatically Switching Input Source for Universal Input Voltage
- Interface : Remote terminal and Signal I/O
Technical Specifications
AC WITHSTANDING (All Models)
|
|
Output-Voltage Range
|
0.10kV~ 5.00kV ac
|
|
Output-Voltage Resolution
|
10V
|
|
Output-Voltage Accuracy
|
± (1.5% of setting + 2 counts) with no load
|
|
Maximum Rated Load
|
100 VA (5kV/20mA)
|
|
Maximum Rated Current
|
20mA (0.5kV < V ≦ 5kV)
5mA (0.1kV ≦ V≦ 0.5kV)
|
|
Output-Voltage Waveform
|
Sine wave
|
|
Output-Voltage Frequency
|
50 Hz / 60 Hz selectable
|
|
Voltage regulation
|
± (1.5% + 2 counts) [full load → no load]
|
|
Voltmeter Accuracy
|
± (1.5% of reading + 2 counts)
|
|
Current Measurement Range
|
0.01mA~20.0mA
|
|
Current Best Resolution
|
0.01mA / 0.1mA
|
|
Current Measurement Accuracy
|
±(2.0% of reading + 5 counts) when HISET < 1.00mA
±(2.0% of reading + 3 counts) when HISET ≧ 1.00mA
|
|
Current Judgment Accuracy
|
±(3.0% of setting + 5 counts) when HISET < 1.00mA
±(3.0% of setting + 3 counts) when HISET ≧ 1.00mA
|
|
Window Comparator Method
|
Yes
|
|
ARC Detect
|
Yes
|
|
RAMP (Ramp-Up Time)
|
0.1s fixed
|
|
TIMER (Test Time)
|
OFF, 1s~180s
|
|
GND
|
ON
|
DC WITHSTANDING (GPT-9602 & GPT-9603)
|
|
Output-Voltage Range
|
0.10kV~ 6.00kV dc
|
|
Output-Voltage Resolution
|
10V
|
|
Output-Voltage Accuracy
|
± (1.5% of setting + 2 counts) with no load
|
|
Maximum Rated Load
|
25W (5kV/5mA)
|
|
Maximum Rated Current
|
6mA (0.5kV < V ≦ 6kV)
2mA (0.1kV ≦ V≦ 0.5kV)
|
|
Voltage regulation
|
± (1.5% + 2 counts) [full load → no load]
|
|
Voltmeter Accuracy
|
± (1.5% of reading + 2 counts)
|
|
Current Measurement Range
|
0.01mA~6.00mA
|
|
Current Best Resolution
|
0.01mA
|
|
Current Measurement Accuracy
|
±(2.0% of reading + 5 counts) when HISET < 1.00mA
±(2.0% of reading + 3 counts) when HISET ≧ 1.00mA
|
|
Current Judgment Accuracy
|
±(3.0% of setting + 5 counts) when HISET < 1.00mA
±(3.0% of setting + 3 counts) when HISET ≧ 1.00mA
|
|
Window Comparator Method
|
Yes
|
|
ARC Detect
|
Yes
|
|
RAMP (Ramp-Up Time)
|
0.1s fixed
|
|
TIMER (Test Time)
|
OFF, 1s~180s
|
|
GND
|
ON
|
INSULATION RESISITANCE (GPT-9603 & GPT-9612)
|
|
Output-Voltage
|
50V, 100V, 250V, 500V, 1000V dc
|
|
Output-Voltage Accuracy
|
± (3.0% of setting + 1 count) [no load]
|
|
Resistance Measurement Range
|
1MOhm~ 2000M-Ohm
|
|
|
Test voltage
|
Measurable Range
|
Accuracy
|
|
|
50V/100V/250V
|
1~ 50M-Ohm
51~ 2000M-Ohm
|
±(5% of reading + 2M-Ohm)
±(10% of reading + 2M-Ohm)
|
|
|
500V/1000V
|
1~ 500M-Ohm
501~ 2000M-Ohm
|
±(5% of reading + 2M-Ohm)
±(10% of reading + 2M-Ohm)
|
|
Window Comparator Method
|
Yes
|
|
Output Impedance
|
600k-Ohm
|
|
RAMP (Ramp-Up Time)
|
0.1s fixed
|
|
TIMER (Test Time)
|
OFF, 1s~180s
|
|
GND
|
OFF (fixed)
|
TEST MODE*
|
|
SINGLE
|
ACW, DCW, IR
|
|
AUTO
|
AC-IR, IR-AC, DC-IR, IR-DC
|
INTERFACE
|
|
Remote Terminal (Front)
|
Standard
|
|
SIGNAL IO
|
Standard
|
General
|
|
DISPLY
|
240 x 48 Ice Blue dot matrix LCD
|
|
POWER SOURCE
|
AC 100V-120V/220V-240V ±10%, 50/60Hz
|
|
POWER COMSUMPTION
|
400VA max.
|
|
DIMENSIONS & WEIGHT
|
330(W) x 148(H) x 385(D) mm
approx.9kg(Max)
|
* The available “Test Mode” depends on selected model
|
The GW Instek GPT-9601 provides voltage breakdown testing to 5 KV AC. The GPT-9601 is the ideal hipot for quick AC only electrical voltage withstand safety testing.
|
The GW Instek GPT-9612 provides AC hipot output up to 5000 Volts AC and insulation resistance (IR) tests to 2000 Meg Ohms.
|
The GW Instek GPT-9603 provides AC (5000 Volt) and DC (6000 Volt) and insulation resistance (IR) tests to 2000 Meg Ohms.
| |
