GE Druck DPI 104IS Intrinsically Safe Pressure Test Kit
|
Item Number: DPI104IS-PV
Manufacturer: Druck (GE)
Part Number: DPI104IS-PV
Product Options
* denotes required field
GE Druck DPI 104IS Pump Kit Selection*
You must select an option for 'GE Druck DPI 104IS Pump Kit Selection'.
GE Druck DPI 104IS Pressure Range Selections*
You must select an option for 'GE Druck DPI 104IS Pressure Range Selections'.
GE Druck DPI 104IS Calibration Options
GE Druck DPI 104IS Accessories
* Whole number only
|
 GE Druck DPI 104IS Test Kit with PV212 Pump GE Druck DPI 104IS Test Kit with PV211 Pump GE Druck DPI 104IS Test Kit with PV210 Pump GE Druck DPI 104IS Test Kit with PV411A Pump |
|
GE Druck DPI 104IS Intrinsically Safe Pressure Test Kit
Pneumatic and Hydraulic Test Kits
The DPI 104-IS is included as a standard component in these test and calibration kits:
- Low Pressure Pneumatic Test Kit
Includes: DPI 104-IS; ranges to 30 psi (2 bar), PV
210 low pressure pneumatic test pump, hose,
adaptors, seal kit and case.
Includes: DPI 104-IS; ranges to 300 psi (20 bar), PV
211 pneumatic test pump, hose, adaptors, seal kit
and case.
Includes: DPI 104-IS; ranges to 15,000 psi (1000
bar), PV 212 hydraulic test pump, hose, adaptors,
seal kit and case.
- Pneumatic and Hydraulic Test Kit
Includes: DPI 104-IS; ranges to 10,000 psi (700 bar),
PV 411A combined pneumatic and hydraulic test
pump, hydraulic reservoir, hose, adaptors, seal kit
and case.
DPI 104IS Pressure Gauge Features
- O.05% full scale accuracy
- Pressure ranges 10 to 20,000 psi (1400 bar)
- ATEX, IECEx and CSA intrinsically safe approvals
- 11 selectable pressure units
- Large easy to read display with five-digit resolution
- % pressure indication and additional bar graph for quick visual reference
- Pressure switch test
- Minimum/maximum, tare and alarm functions
- Stainless & Inconel wetted parts for aggressive media
- Pump Kits available
DPI 104IS Pressure Gauge Applications
- Process monitoring and control
- Test and calibration
The DPI 104 can function either as a stand alone process indicator or as a test device with our extremely popular line of hand pumps - With the DPI 104 we offer a bundled test and calibration kit including pump, gauge, test hose, case and accessories at an exceptional price.
DPI 104IS Pressure Gauge Technical Specifications Display
Pressure reading: 5 digits with 0.5 in (12.7 mm) character heightFull scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height
Pneumatic and Hydraulic Test Kits
The DPI 104-IS is included as a standard component in these test and calibration kits:
| Low Pressure Pneumatic Test Kit |
Includes DPI 104-IS; ranges to 30 psi (2 bar), PV 210 low pressure pneumatic test pump, hose, adaptors, seal kit and case |
|---|
| Pneumatic Test Kit |
Includes DPI 104-IS; ranges to 300 psi (20 bar), PV 211 pneumatic test pump, hose, adaptors, seal kit and case |
|---|
| Hydraulic Test Kit |
Includes DPI 104-IS; ranges to 15,000 psi (1000 bar), PV 212 hydraulic test pump, hose, adaptors, seal kit and case |
|---|
| Pneumatic and Hydraulic Test Kit |
Includes DPI 104-IS; ranges to 10,000 psi (700 bar),PV 411A combined pneumatic and hydraulic test pump, hydraulic reservoir, hose, adaptors, seal kit and case |
|---|

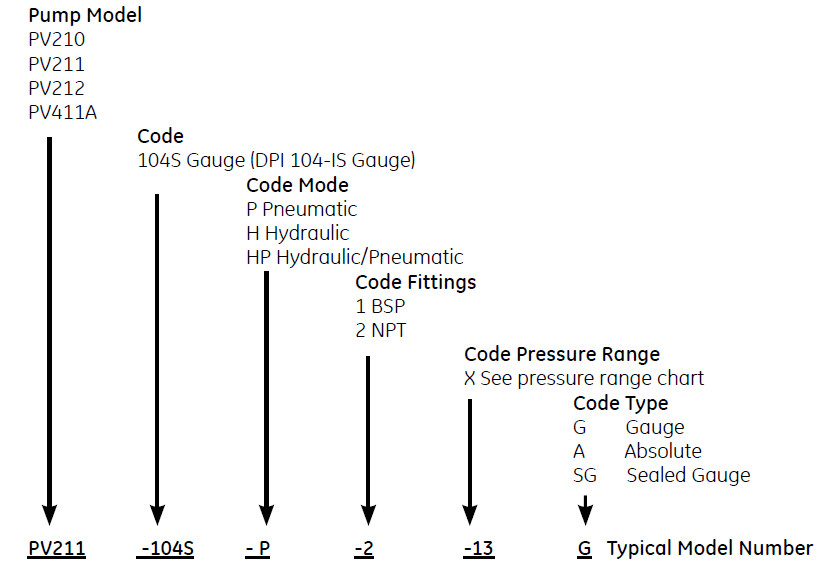

Pressure Range Chart Test Kit Ordering Information
|
GE Druck DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package.
|
GE Druck DPI 104-IS is an intrinsically safe version of the microprocessor-controlled DPI 104-digital pressure gauge.
|
GE Druck DPI 104 is included as a standard component in low pressure pneumatic, pneumatic, and hydraulic test kits.
| |
