GE Druck DPI 104 Pressure Test Kit
|
Item Number: DPI104-PV
Manufacturer: Druck (GE)
Part Number: DPI104-PV
Product Options
* denotes required field
GE Druck DPI 104 Pump Kit Selection*
You must select an option for 'GE Druck DPI 104 Pump Kit Selection'.
GE Druck DPI 104 Pressure Range Selections*
You must select an option for 'GE Druck DPI 104 Pressure Range Selections'.
GE Druck DPI 104 Calibration Options
GE Druck DPI 104 Accessories
* Whole number only
|
 GE Druck DPI 104 Test Kit with PV212 Pump GE Druck DPI 104 Test Kit with PV211 Pump GE Druck DPI 104 Test Kit with PV210 Pump GE Druck DPI 104 Test Kit with PV411A Pump |
|
GE Druck DPI 104 Pressure Test Kit
Pneumatic and Hydraulic Test Kits
The DPI 104 is included as a standard component in these test and calibration kits:

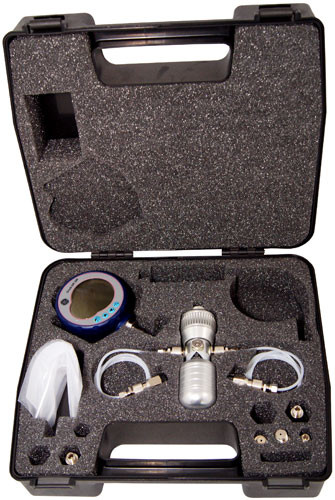

- Low Pressure Pneumatic Test Kit
Includes: DPI 104; ranges to 30 psi (2 bar), PV 210
low pressure pneumatic test pump, hose, adaptors,
seal kit and case.

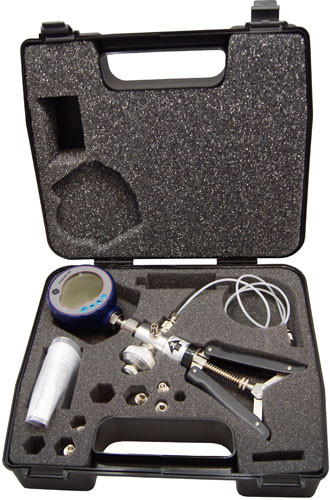

Includes: DPI 104; ranges to 300 psi (20 bar), PV 211
pneumatic test pump, hose, adaptors, seal kit and
case.

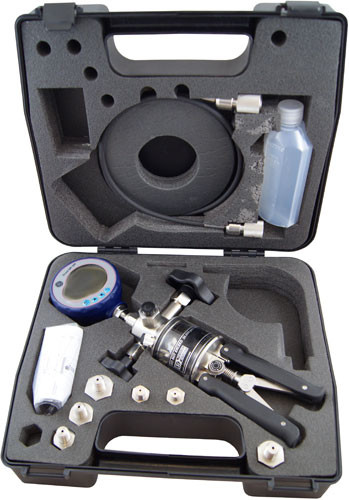

Includes: DPI 104; ranges to 15,000 psi (1000 bar),
PV 212 hydraulic test pump, hose, adaptors, seal
kit and case.

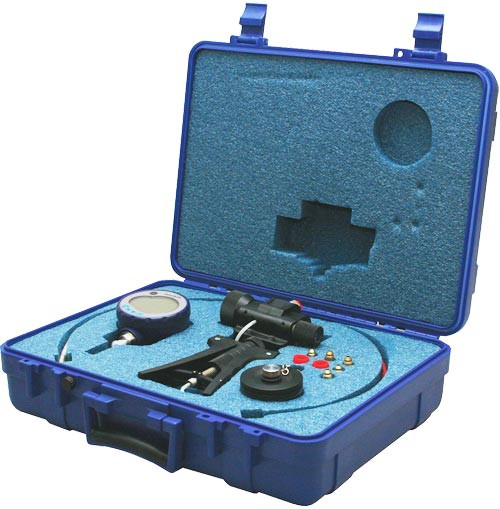

- Pneumatic and Hydraulic Test Kit
Includes: DPI 104; ranges to 10,000 psi (700 bar),
PV 411A combined pneumatic and hydraulic test
pump, hydraulic reservoir, hose, adaptors, seal kit
and case.
DPI 104 Pressure Gauge Features
- 11 selectable pressure units
- O.05% full scale accuracy
- Pressure ranges 10 to 20,000 psi (1400 bar)
- Large, easy to read display with five digit resolution
- % pressure indication with bar graph for visual reference
- Temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
- Pressure switch test, Min/Max, tare and alarm functions
- Adjustable mounting positions
- IDOS compatible with RS 232 interface and networking capability
- Stainless & Inconel wetted parts for aggressive media
- 0-5V analogue output
- Pump Kits available
DPI 104 Pressure Gauge Applications
- Process monitoring and control
- Test and calibration
DPI 104 Pressure Gauge Technical Specifications
| Burst Pressure |
Burst pressure is 2x working pressure (exception, 20,000 psi (1400 bar); burst pressure 29,000 psi (2000 bar). |
|---|
| Selectable Pressure Units |
kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg |
|---|
| Display |
Pressure reading: 5 digits with 0.5 in (12.7 mm) character height
Full scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height |
|---|
| Pressure Bar Graph |
In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular twenty segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100% full scale output. The bar graph increments represent 5% of the user-selectable range. |
|---|
| Display Update |
Two times per second |
|---|
| Minimum/Maximum Values |
The minimum and maximum pressure values can be displayed on the DPI 104. This function can be enabled/disabled, and reset by the user. |
|---|
| Switch Test |
The DPI 104 features a switch test function that will capture and display the open and closed values from an external pressure switch. Maximum switch impedance 200 O. |
|---|
| Voltage Output |
The DPI 104 can be programmed to provide a 0 to 5 V output signal that can be configured as directly proportional to the pressure shown in the display or set to a fixed value. The voltage output mode provides 0.1% FS accuracy from 50 mV to 5 V. |
|---|
| Alarm Output |
The alarm output consists of an open drain field effect transistor (maximum current 250 mA, maximum voltage 24 VDC) |
|---|
| Adjustable Mounting Positions |
For added convenience, the DPI 104 housing will rotate 320° around the pressure fitting and the faceplate can be rotated in any orientation for optimum visibility. |
|---|
| Menu Lock |
To guard against unauthorized menu access, the DPI 104 features a menu and tare lock function |
|---|
| RS232 Interface |
Serial communications are provided to allow transfer of data to a PC with the optional serial lead (IA4090-2- V0). Using this link all menu commands and display data are available via an ASCII command set or the optional SiCal Pro Software. |
|---|
| Network Capability |
Up to 99 DPI 104 instruments can be connected together in a daisy chain-configured network. |
|---|
| Universal Pressure Module (UPM) Capability |
UPM modules can be connected to the DPI 104 to enhance the accuracy and extend the pressure range. |
|---|
| Battery |
The DPI 104 is supplied with a 9V alkaline battery, type MN1604. Battery life is approximately six months when used daily for one hour per day. For increased performance a 9V lithium battery (not supplied by GE) is suggested. |
|---|
| Pressure Port |
1/4 NPT or BSP male for units to 10,000 psi (700 bar)
9/16 x 18 UNF male cone connection 15,000 psi (1000 bar) and 20,000 psi (1400 bar) units |
|---|
| Enclosure |
Case material: ABS/PC plastic sealed to Type 4/IP65
Wetted parts: All stainless steel (316) or Inconel welded pressure cavity for compatibility with aggressive media. |
|---|
| European Compliance |
CE marked |
|---|
| SiCalPro Software |
This software package allows the user to control the DPI 104 remotely through a virtual instrument panel on the computer screen. The calibration data can be logged, viewed and printed in graphical format or as a calibration certificate. |
|---|
| System Requirements |
Minimum Intel Pentium with Windows® 95 or higher |
|---|
| General |
|---|
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
|---|
| Dimensions |
Diameter: 3.74 in (95 mm) excluding pressure fittings
Depth: 2.17 in (55 mm) |
|---|
| Weight |
13 oz (350 g) approximate |
|---|
| Mechanical Vibration |
To Def Stan 66-31, 8.4 Cat III |
|---|
| Mechanical Shock |
To BS EN 61010:2001 |
|---|
| Electrical Environments |
EMC: BS EN61326-1:1998 + A2:2001
Electrical Safety: BS EN 61010:2001
Mechanical Safety Pressure Equipment Directive_Class: Sound Engineering Practice (SEP) |
|---|
| Options |
DPI 104 external power supply unit with lead p/n 191-350
PC serial lead for connection to PC p/n IA4090-2-V0. (Note: Option A is recommended with PC serial lead.)
SiCalPro software p/n 1S-SiCALPRO-DPI104 (includes IA4090-2-V0)
Mating plug for eight-pin socket for switch test, voltage output, external power and alarm function (customers wishing to make their own connections/leads) p/n 1S-04-0027
9/16 x 18 UNF to 3/8 BSP adapter for connection to PV 212 p/n 182-190
DPI 104 UPM power lead for use with UPM IDOS Sensor p/n IA4101-1-V0. Requires Option H.
Universal 12V external power supply for use with the UPM IDOS remote sensor p/n 191-129 |
|---|

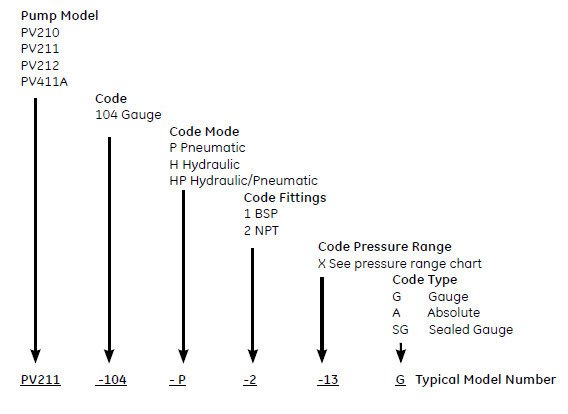

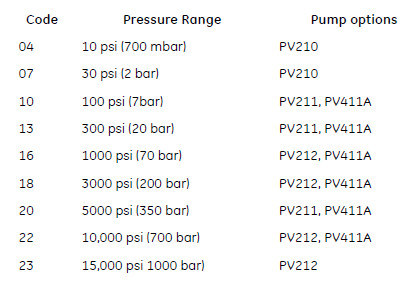

Pressure Range Chart Test Kit Ordering Information
|
GE Druck DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package.
|
GE Druck DPI 104-IS is an intrinsically safe version of the microprocessor-controlled DPI 104-digital pressure gauge.
|
GE Druck DPI 104-IS is included as a standard component in low pressure pneumatic, pneumatic, and hydraulic test kits.
| |
