GE Druck DPI 104 Digital Pressure Gauge
|
Item Number: DPI104
Manufacturer: Druck (GE)
Part Number: DPI104
Product Options
* denotes required field
GE Druck DPI 104 Pressure Range Selections*
You must select an option for 'GE Druck DPI 104 Pressure Range Selections'.
GE Druck DPI 104 Calibration Options
GE Druck DPI 104 Accessories
* Whole number only
|
|

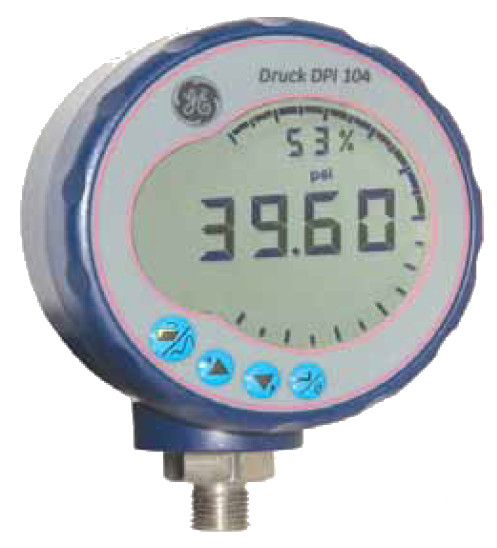

GE Druck DPI 104 Digital Pressure Gauge
The DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact, robust and simple-to-use package. The DPI 104 matches advanced silicon sensor technology with several convenient design features resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a standalone process indicator or in a kit with the widely proven hand pumps, the DPI 104 digital pressure gauge provides a reliable and economic solution for a wide range of pressure sensing applications.
Features

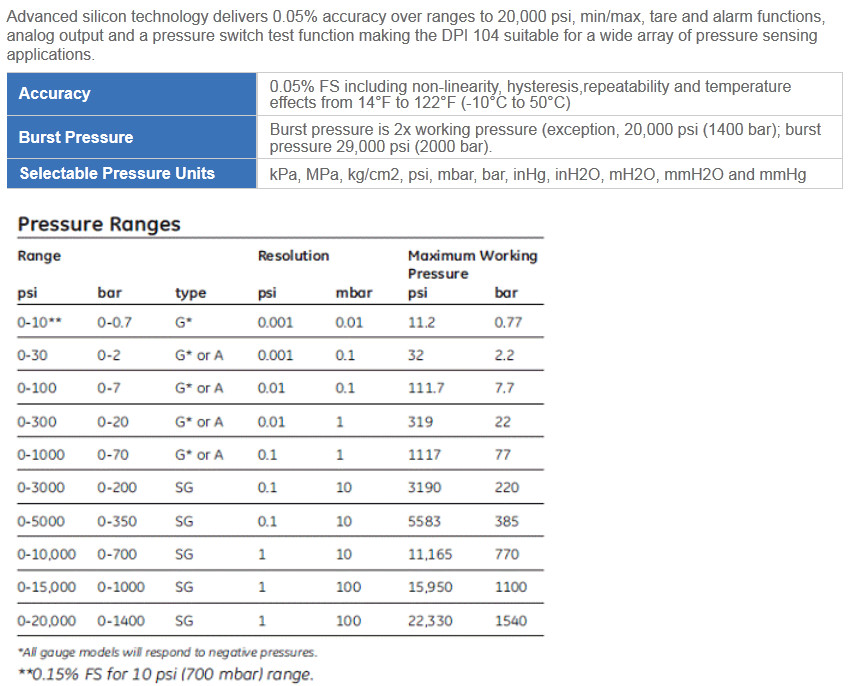

- 11 selectable pressure units
- 0.05% full scale accuracy
- Pressure ranges 10 to 20,000 psi (1400 bar)
- Large, easy to read display with five digit resolution
- % pressure indication with bar graph for visual reference
- Temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
- Pressure switch test, Min/Max, tare and alarm functions
- Adjustable mounting positions
- IDOS compatible with RS 232 interface and networking capability
- Stainless & Inconel wetted parts for aggressive media
- 0-5V analogue output
- Pump Kits available
Applications
- Process monitoring and control
- Test and calibration
The DPI 104 can be used as a stand-alone process indicator or as a pressure reference for use with our widely popular hand pumps.

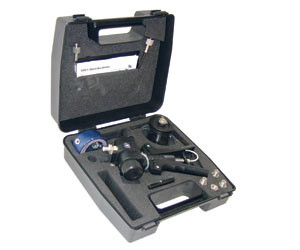

 Shown with Optional Test KitTechnical Specifications
| Burst Pressure |
Burst pressure is 2x working pressure (exception, 20,000 psi (1400 bar); burst pressure 29,000 psi (2000 bar). |
|---|
| Selectable Pressure Units |
kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O, mH2O, mmH2O and mmHg |
|---|
| Display |
Pressure reading: 5 digits with 0.5 in (12.7 mm) character height
Full scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height |
|---|
| Pressure Bar Graph |
In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular twenty segment bar graph to provide the user with a quick visual estimation of pressure from 0 to 100% full scale output. The bar graph increments represent 5% of the user-selectable range. |
|---|
| Display Update |
Two times per second |
|---|
| Minimum/Maximum Values |
The minimum and maximum pressure values can be displayed on the DPI 104. This function can be enabled/disabled, and reset by the user. |
|---|
| Switch Test |
The DPI 104 features a switch test function that will capture and display the open and closed values from an external pressure switch. Maximum switch impedance 200 O. |
|---|
| Voltage Output |
The DPI 104 can be programmed to provide a 0 to 5 V output signal that can be configured as directly proportional to the pressure shown in the display or set to a fixed value. The voltage output mode provides 0.1% FS accuracy from 50 mV to 5 V. |
|---|
| Alarm Output |
The alarm output consists of an open drain field effect transistor (maximum current 250 mA, maximum voltage 24 VDC) |
|---|
| Adjustable Mounting Positions |
For added convenience, the DPI 104 housing will rotate 320° around the pressure fitting and the faceplate can be rotated in any orientation for optimum visibility. |
|---|
| Menu Lock |
To guard against unauthorized menu access, the DPI 104 features a menu and tare lock function |
|---|
| RS232 Interface |
Serial communications are provided to allow transfer of data to a PC with the optional serial lead (IA4090-2- V0). Using this link all menu commands and display data are available via an ASCII command set or the optional SiCal Pro Software. |
|---|
| Network Capability |
Up to 99 DPI 104 instruments can be connected together in a daisy chain-configured network. |
|---|
| Universal Pressure Module (UPM) Capability |
UPM modules can be connected to the DPI 104 to enhance the accuracy and extend the pressure range. |
|---|
| Battery |
The DPI 104 is supplied with a 9V alkaline battery, type MN1604. Battery life is approximately six months when used daily for one hour per day. For increased performance a 9V lithium battery (not supplied by GE) is suggested. |
|---|
| Pressure Port |
1/4 NPT or BSP male for units to 10,000 psi (700 bar)
9/16 x 18 UNF male cone connection 15,000 psi (1000 bar) and 20,000 psi (1400 bar) units |
|---|
| Enclosure |
Case material: ABS/PC plastic sealed to Type 4/IP65
Wetted parts: All stainless steel (316) or Inconel welded pressure cavity for compatibility with aggressive media. |
|---|
| European Compliance |
CE marked |
|---|
| SiCalPro Software |
This software package allows the user to control the DPI 104 remotely through a virtual instrument panel on the computer screen. The calibration data can be logged, viewed and printed in graphical format or as a calibration certificate. |
|---|
| System Requirements |
Minimum Intel Pentium with Windows® 95 or higher |
|---|
| General |
|---|
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
|---|
| Dimensions |
Diameter: 3.74 in (95 mm) excluding pressure fittings
Depth: 2.17 in (55 mm) |
|---|
| Weight |
13 oz (350 g) approximate |
|---|
| Mechanical Vibration |
To Def Stan 66-31, 8.4 Cat III |
|---|
| Mechanical Shock |
To BS EN 61010:2001 |
|---|
| Electrical Environments |
EMC: BS EN61326-1:1998 + A2:2001
Electrical Safety: BS EN 61010:2001
Mechanical Safety Pressure Equipment Directive_Class: Sound Engineering Practice (SEP) |
|---|
| Options |
DPI 104 external power supply unit with lead p/n 191-350
PC serial lead for connection to PC p/n IA4090-2-V0. (Note: Option A is recommended with PC serial lead.)
SiCalPro software p/n 1S-SiCALPRO-DPI104 (includes IA4090-2-V0)
Mating plug for eight-pin socket for switch test, voltage output, external power and alarm function (customers wishing to make their own connections/leads) p/n 1S-04-0027
9/16 x 18 UNF to 3/8 BSP adapter for connection to PV 212 p/n 182-190
DPI 104 UPM power lead for use with UPM IDOS Sensor p/n IA4101-1-V0. Requires Option H.
Universal 12V external power supply for use with the UPM IDOS remote sensor p/n 191-129 |
|---|
|
GE Druck DPI 104-IS is an intrinsically safe version of the microprocessor-controlled DPI 104-digital pressure gauge.
|
GE Druck DPI 104 is included as a standard component in low pressure pneumatic, pneumatic, and hydraulic test kits.
|
GE Druck DPI 104-IS is included as a standard component in low pressure pneumatic, pneumatic, and hydraulic test kits.
| |
