Flowline Thermo-Flo XT10 Liquid & Gas Flow Switch
Our Price: Starting at $185.00
Manufacturer: Flowline
Part Number: XT10
Product Options
| Application media: |
|
| Sensor material: |
|
| Sensor length: |
|
| Process mount: |
|
Product Options
Flowline Thermo-Flo XT10 Accessory Option
* Whole number only
|
|

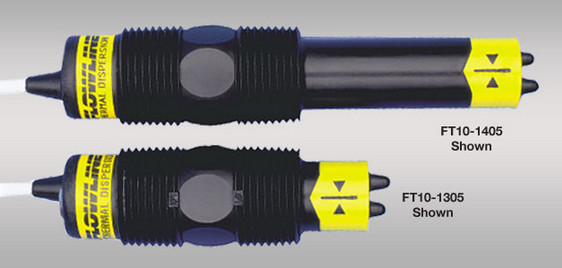

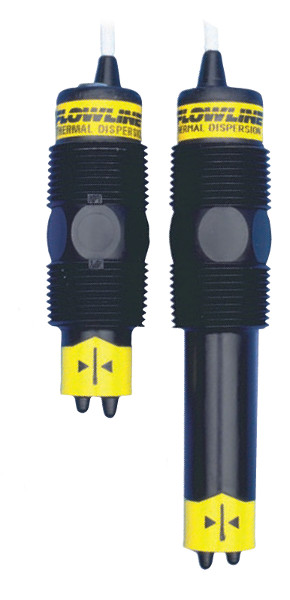

Flowline Thermo-Flo XT10 Liquid & Gas Flow Switch
Application
Offered in liquid and gas sensor types, the general purpose flow switch provides reliable low or no-flow detection of relatively clean, non-coating media with one 1A relay output. Liquid examples include water and acetic acid. Available in Polypropylene-Ryton® and PVDF, the short flow sensor is used in pipe or ducting from 1/2" to 1 1/2", and the long flow sensor is used in 2" and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.
Features
- Rugged Polypropylene-Ryton® or PVDF sensor for corrosive liquids and gase
- Adjustable set point with LED for flow or no-flow status indication
- 60VA relay selectable NO or NC via power supply wiring polarity
- Solid state sensor is not damaged by over-ranging flow velocities

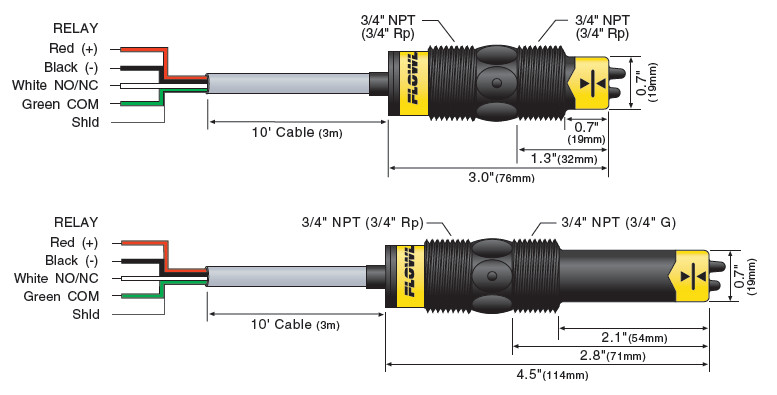

Dimensions
Technical Specifications
| Set point range: |
FT10: 0.04 to 3 fps
(0.012 to 0.91 mps)
GT10: 1 to 90 fps
(0.3 to 27 mps) |
| Factory set point: |
FT10: 2 fps (.06 mps)
GT10: 10 fps (27 mps) |
| Repeatability: |
± 0.5% of set point
@ fixed temperature |
| Response time: |
1-10 seconds |
| Set point adjust.: |
Potentiometer |
| Viscosity range: |
FT10: 1-200 centipoise |
| LED indication: |
Flow status |
| Supply voltage: |
12-36 VDC |
| Consumption: |
70 mA maximum |
| Contact type: |
(1) SPST relay |
| Contact rating: |
60 VA, 1A maximum |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: 32° to 140°
C: 0° to 60° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
150 psi (10 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per ºC
above 25º C |
| Sensor rating: |
NEMA 4X (IP65) |
| Wetted material: |
-1XX5: PP-Ryton®
-5XX5: PVDF |
| Cable jack. mat.: |
-1XX5: PP
-5XX5: PFA |
| Cable type: |
4-conductor, shielded
#22 AWG |
| Cable length: |
10' (3m) |
| Process mount: |
3/4" NPT (3/4" G) |
| Mount. gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE |
|
