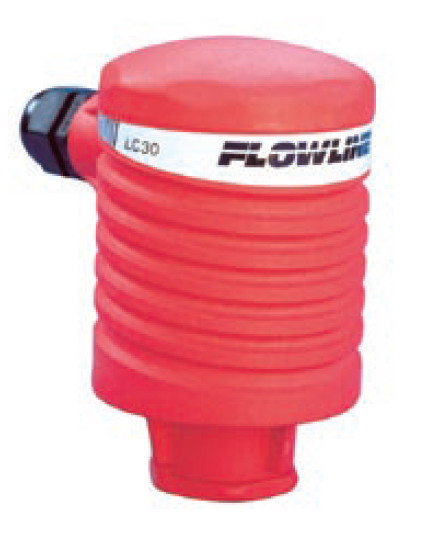

Flowline Thermo-Flo LC30 Compact Flow Controller
Our Price: Starting at $205.00
Manufacturer: Flowline
Part Number: LC30
Product Options
| Enclosure mount: |
|
| Configuration: |
|
* Whole number only
|
|
Flowline Thermo-Flo LC30 Compact Flow Controller
Application
The general purpose flow controller accepts one flow sensor input, and provides one 16A relay for low-flow pump or process protection. The optional flash alarm brings attention to low-flow alarm conditions. Package this flow controller with our liquid or gas flow switch sensors.
Features
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Optional strobe brings immediate attention to flow alarm conditions
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
- Easy setup with LED indicators for sensor, power and relay status
- Invert switch changes relay state from NO to NC without rewiring
- Compatible with Flowline liquid and gas flow switch sensors
Dimensions
Technical Specifications
| Supply voltage: |
120 / 240 VAC @ 50-60 Hz. |
| Consumption: |
0.25A maximum |
| Sensor input: |
(1) flow switch |
| Sensor supply: |
24 VDC @ 50 mA |
| LED indication: |
Sensor, power & relay |
| Strobe type: |
-10X1: N/A
-10X2: Xenon tube |
| Strobe flash: |
-10X1: N/A
-10X2: (1) per second |
| Contact type: |
(1) SPDT relay |
| Contact rating: |
250 VAC @ 10A |
| Contact output: |
Selectable NO / NC |
| Contact delay: |
0-60 seconds |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
10X1: PP, UL94VO
10X2: PP, UL94VO & PC |
| Conduit entrance: |
1/2" NPT |
| Enclosure mount: |
3/4" NPT (3/4" Rp) |
| Classification: |
General purpose |
| Compliance: |
CE |
| Approvals: |
CSA, LR 79326 |
|
