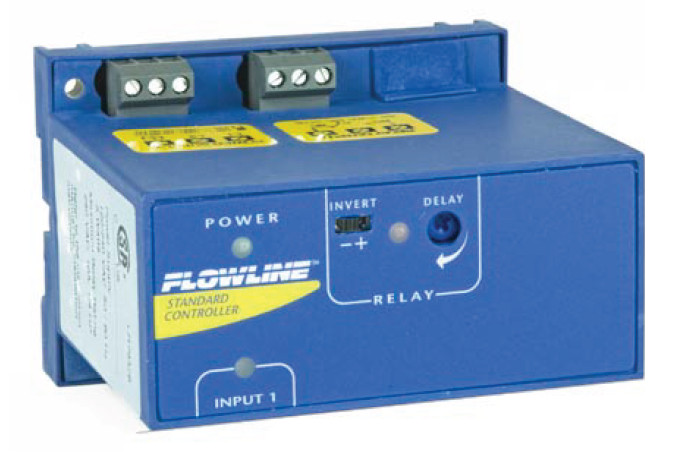

Flowline Thermo-Flo LC8X Remote Flow Controller
Application
The general purpose flow controller is offered in two configurations for low-flow pump and process protection. The LC80 accepts one flow sensor input and provides one 10A relay for low flow control. The LC82 accepts two flow sensor inputs and provides two 10A relays for dual low flow control. Package this flow controller with our liquid or gas flow switch sensors. For field mount installation, add a single or dual controller NEMA box.
Features
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Easy setup with LED indicators for sensor, power and relay status
- 35 mm DIN rail mount polypropylene enclosure with removable terminal strips
- Invert switch changes relay state from NO to NC without rewiring

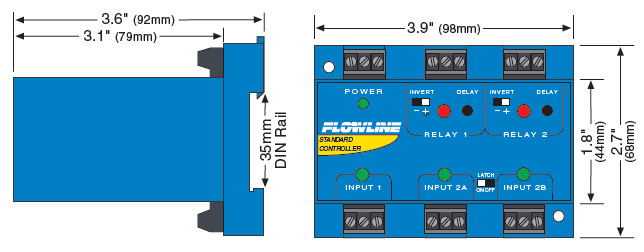

Dimensions
Technical Specifications
| Supply voltage: |
120 / 240 VAC, 50-60 Hz |
| Consumption: |
5 watts maximum |
| Sensor inputs: |
LC80: (1) four-wire flow switch
LC82: (2) four-wire flow swiitches |
| Sensor supply: |
24 VDC @ 50 mA |
| LED indication: |
Sensor, power & relay |
| Contact type: |
LC80: (1) SPDT relay
LC82: (2) SPDT relays |
| Contact rating: |
250 VAC @ 10A |
| Contact output: |
Selectable NO / NC |
| Contact latch: |
LC80: N/A
LC82: Selectable ON / OFF |
| Contact delay: |
0-60 seconds |
| Ambient temp: |
F: -40° to 140°
C: -40° to 60° |
| Enclosure type: |
35mm DIN rail |
| Enclosure mat.: |
PP, UL94VO |
| Classification: |
General purpose |
| Compliance: |
CE |
| Approvals: |
CSA, LR 79326 |
Accessories
Protect your level controller from the elements by using the below recommended single or two indicator NEMA box.
Single & Two Controller NEMA Box
P/N Description
LM94-1001 Single Controller, Windowed, 35mm Rail, Polycarbonate
LM95-1001 Two Controller, Windowed, 35mm Rail, Polycarbonate
|
