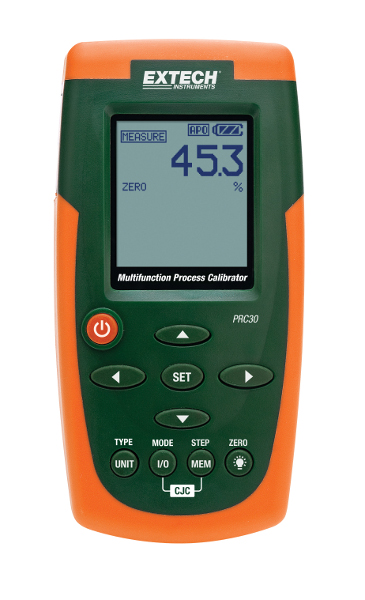

Extech PRC30 Multifunction Process Calibrator
|
Item Number: PRC30
Manufacturer: Extech
Part Number: PRC30
Product Options
Extech PRC30 Calibration Options
* Whole number only
|
|
Extech PRC30 Multifunction Process Calibrator
Features
- 0 to 24mA (-25 to 125%) readout
- 24V DC power source for 2-wire current loop
- 0 to 20V DC calibration source
- Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
- CJC - Cold Junction Compensation function
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix backlit LCD
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Displays output in terms of millivolts or temperature based on thermocouple tables
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports and mini thermocouple connector
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle

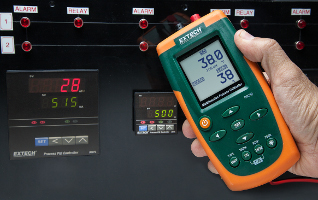

Applications
- Lab and Field Calibration and Verifi cation Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing tools.
- Temperature Control Process Troubleshooting
- Process devices calibration and simulation: Transducers, Transmitters, Indicators, Controllers, and Recorders
- Field test and service
- Bench research and development

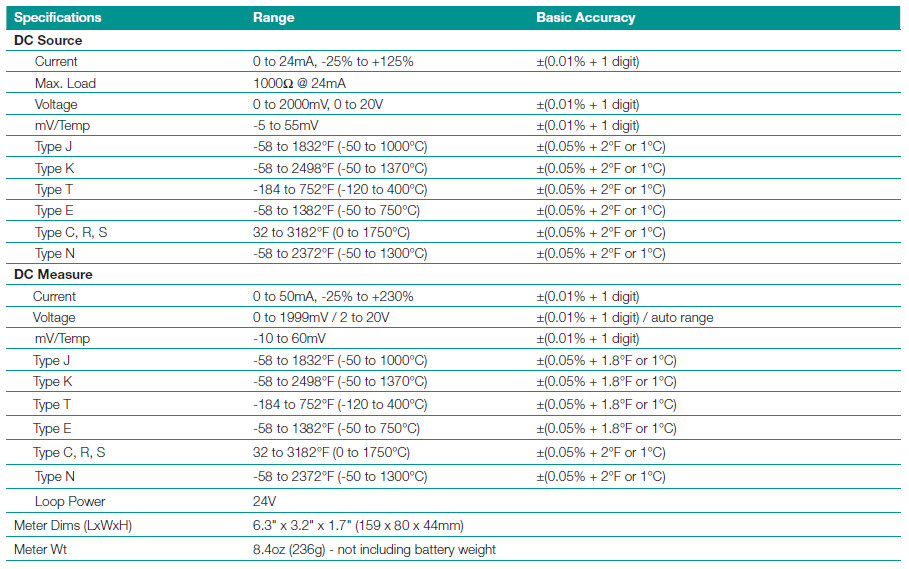

Technical Specifications
|
Extech PRC10 has a 24V DC power source for 2-wire current loop.
|
Extech PRC15 has a 0 to 20V DC calibration source.
|
Extech PRC20 sources and measures 8 thermocouple type devices (J, K, T, E, C, R, S and N).
| |
