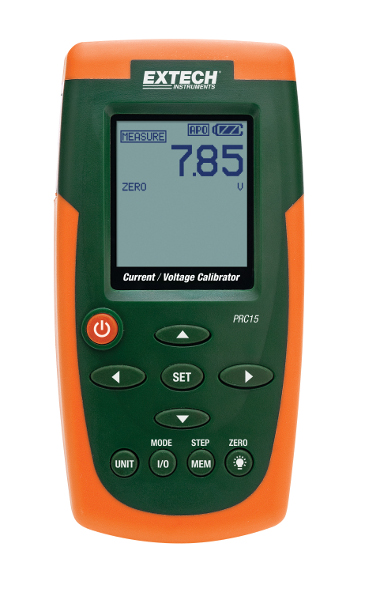

Extech PRC15 Current and Voltage Calibrator/Meter
|
Item Number: PRC15
Manufacturer: Extech
Part Number: PRC15
Product Options
Extech PRC15 Calibration Options
* Whole number only
|
|
Extech PRC15 Current and Voltage Calibrator/Meter
Features
- 0 to 24mA (-25 to 125%) readout
- 24V DC power source for 2-wire current loop
- 0 to 20V DC calibration source
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix digital backlit LCD
- Standard banana I/O ports
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
Precision “source” for calibrating process devices.
Applications
- Process devices calibration and simulation
- Transducers
- Transmitters
- Indicators
- Controllers
- Recorders
- Field test and service
- Bench research/development
Technical Specifications
| Specifications |
Range |
| Source |
Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%); Output 0 to 20V (PRC15 only) |
| Measure |
0 to 50mA current signal (-25 to 230%); 0 to 19.99V (PRC15 only) |
| Power/Measure |
Provides power (24VDC) to loop & measures current (PRC10 only) |
| Input/Output |
Ranges and Displays |
Resolution |
|
0 to 19.99mA |
0.01mA |
|
0 to 24.0mA |
0.1mA |
|
0 to 1999mV |
1mV |
|
0 to 20.00V |
10mV |
| Accuracy |
0.01% ±1 digit |
|
| Meter Dims (LxWxH) |
6.3" x 3.2" x 1.7" (159 x 80 x 44mm) |
|
| Meter Wt |
8.2oz (232g) - not including battery weight |
|
|
Extech PRC10 has a 24V DC power source for 2-wire current loop.
|
Extech PRC20 sources and measures 8 thermocouple type devices (J, K, T, E, C, R, S and N).
|
Extech PRC30 has a 0 to 24mA (-25 to 125%) readout.
| |
