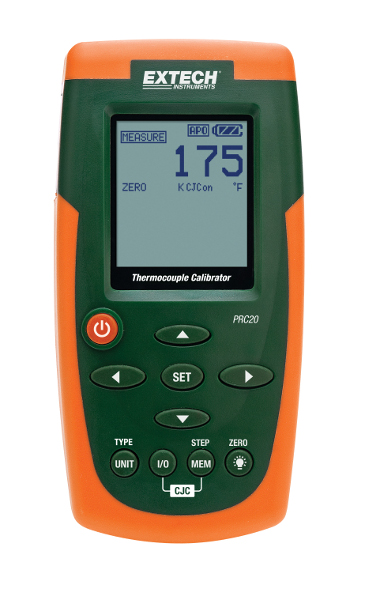

Extech PRC20 Thermocouple Calibrator
|
Item Number: PRC20
Manufacturer: Extech
Part Number: PRC20
Product Options
Extech PRC20 Calibration Options
* Whole number only
|
|
Extech PRC20 Thermocouple Calibrator
Features
- Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
- CJC - Cold Junction Compensation function
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix digital backlit LCD with thermocouple type indication
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Displays output in terms of millivolts or temperature based on thermocouple tables
- Mini thermocouple connector
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
Applications
- Lab and Field Calibration and Verifi cation Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing tools.
- Engineering Research and Design
- Manufacturing and Test Engineering
- HVAC
- Temperature Control Process Troubleshooting

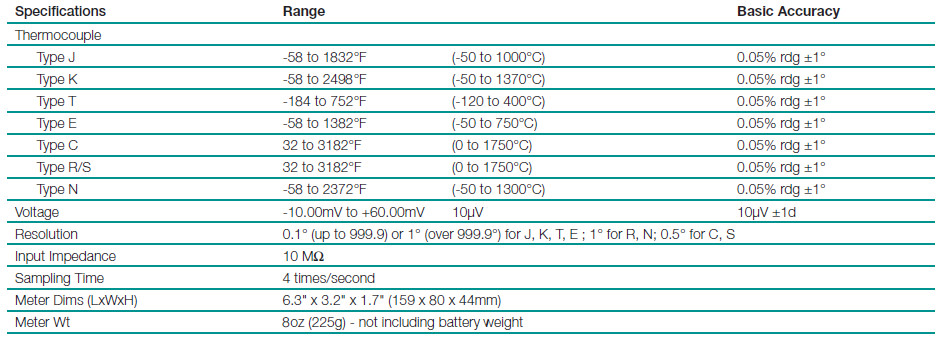

Technical Specifications
|
Extech PRC10 has a 24V DC power source for 2-wire current loop.
|
Extech PRC15 has a 0 to 20V DC calibration source.
|
Extech PRC30 has a 0 to 24mA (-25 to 125%) readout.
| |
