Extech HDV640W: HD VideoScope with Wireless Handset/Articulating Probe
|
Item Number: HDV640W
Manufacturer: Extech
Part Number: HDV640W
* Whole number only
|
|
Extech HDV640W: HD VideoScope with Wireless Handset/Articulating Probe
Extech's HDV600 series of High Definition VideoScope Inspection Cameras. Designed for use in practically any environment, these rugged, waterproof and drop-proof industrial videoscopes deliver images and video with remarkable sharpness and clarity. The HDV600’s narrow diameter cameras deliver high image resolution to its 5.7” high definition color LCD monitor. Store both images and video on SD memory card, and choose from a range of camera probes to fit your application. Probes come in a an array of sizes to fit your application and are available wireless or wired . Some probes are equipped with 240° articulating tip!
Water and Drop Proof
|
USB, microphone,
SD, video out, reset
and AC inputs |
Macro (Short Focal Length) Lenses permit you to examine
features and attributes that are up-close to the optical camera
tip as illustrated above. For detail-intensive applications, such as
turbine blade or boiler tube inspections, where up-close viewing
is essential, select a macro tip with a diameter that is compatible
with the width of access points or orifi ces available. |
Long Focus Lenses permit you to see further in confi ned
areas. These are ideal for viewing concealed areas or large,
otherwise inaccessible locations where areas needing inspection
may not be immediately adjacent to the optical tip. |
Features
- Includes wireless handset with nondetachable 6mm semi-rigid probe (1m) with macro lens
- Wireless transmitter allows to transmit video up to 100ft (30m) from the measurement point to your monitor
- Articulating probe tip adjusts up to 240° viewing angle
- 5.7" color LCD TFT with high definition 640 x 480 VGA pixel resolution
- Compact, high-resolution water-proof camera probe
- Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
- Glare-free close-up field of view
- SD memory card included to store more than 15,000 images
- Video recording (up to 4 hours) with voice annotation
- AV output for viewing images and video directly on a monitor
- Video and images can be transferred to a PC via the SD card or USB output
- Includes wireless handset with articulating probe, SD card, 3.7V rechargable Li-Polymer battery, patch cable, 100/240V AC adaptor, USB and AV cables, and carrying case
Applications
- Industrial Processing & Manufacturing
- Heavy Equipment
- HVAC/Boilers
- Aerospace
- Government & Security
- Insurance
- Mining and Aggregate
- Aviation AOG and FBO
- Power Generation
- Building Inspection & Commissioning
- PetroChem/Refineries
- Infrastructure
IncludesVideoScope, wireless transmitter, SD memory card,
wireless handset with articulating camera probe and
1m cable (Probe accessories: magnet, 45° mirror, and
anti-snag tip), 3.7V rechargable, Li-Polymer battery, patch
cable, Universal AC adapter (110-240V, 4 plugs), USB and

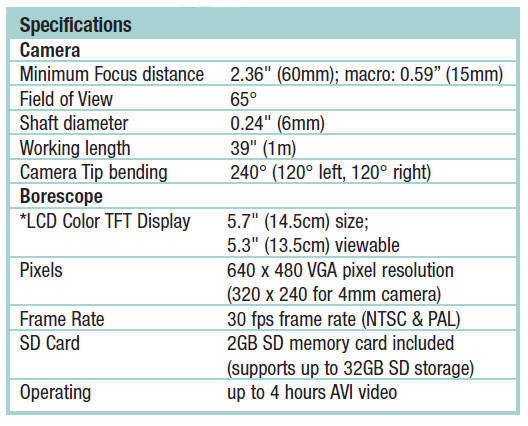

AV cables, and hard carrying caseTechnical Specifications
|
Extech HDV600 series of High Definition VideoScope Inspection Cameras are designed for use in practically any environment, these rugged, waterproof and drop-proof industrial videoscopes deliver images and video with remarkable sharpness and clarity.
|
Extech HDV620 includes 5.8mm semi-rigid, 60° FOV, macro probe (1m).
|
Extech HDV610 includes 5.5mm flexible, 60° FOV, macro probe (1m).
|
Extech HDV640 includes wired handset with nondetachable 6mm semi-rigid probe (1m) with macro lens.
|
