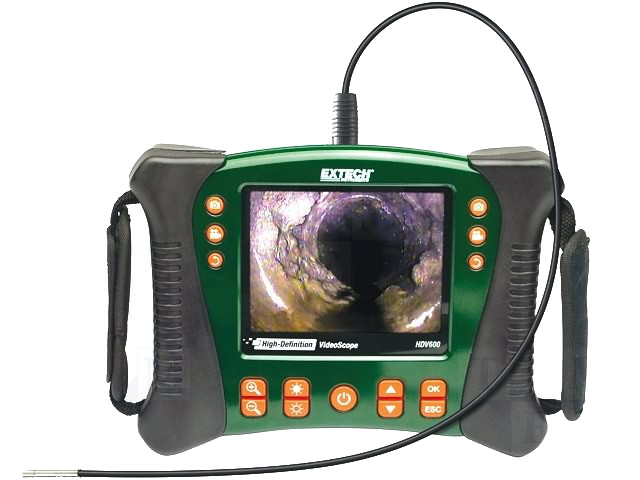

Extech HDV610: HD VideoScope with 5.5mm Flexible Probe
|
Item Number: HDV610
Manufacturer: Extech
Part Number: HDV610
* Whole number only
|
|
Extech HDV610: HD VideoScope with 5.5mm Flexible Probe
Extech's HDV600 series of High Definition VideoScope Inspection Cameras. Designed for use in practically any environment, these rugged, waterproof and drop-proof industrial videoscopes deliver images and video with remarkable sharpness and clarity. The HDV600’s narrow diameter cameras deliver high image resolution to its 5.7” high definition color LCD monitor. Store both images and video on SD memory card, and choose from a range of camera probes to fit your application. Probes come in a an array of sizes to fit your application and are available wireless or wired . Some probes are equipped with 240° articulating tip!
Water and Drop Proof
|
USB, microphone,
SD, video out, reset
and AC inputs |
Macro (Short Focal Length) Lenses permit you to examine
features and attributes that are up-close to the optical camera
tip as illustrated above. For detail-intensive applications, such as
turbine blade or boiler tube inspections, where up-close viewing
is essential, select a macro tip with a diameter that is compatible
with the width of access points or orifi ces available. |
Long Focus Lenses permit you to see further in confi ned
areas. These are ideal for viewing concealed areas or large,
otherwise inaccessible locations where areas needing inspection
may not be immediately adjacent to the optical tip. |
Features
- Includes 5.5mm flexible, 60° FOV, macro probe (1m)
- 5.7" color LCD TFT with high definition 640 x 480 VGA pixel resolution
- Compact, high-resolution water-proof camera probe
- Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
- Glare-free close-up field of view
- SD memory card included to store more than 15,000 images
- Video recording (up to 4 hours) with voice annotation
- AV output for viewing images and video directly on a monitor
- Video and images can be transferred to a PC via the SD card or USB output
- Optional wireless transmitter allows you to transmit video up to 100ft (30m) from the measurement point to your monitor
- Includes handset & camera probe, SD card, 3.7V rechargable Li-Polymer battery, patch cable, 100/240V AC adaptor, USB and AV cables, and carrying case
Applications
- Industrial Processing & Manufacturing
- Heavy Equipment
- HVAC/Boilers
- Aerospace
- Government & Security
- Insurance
- Mining and Aggregate
- Aviation AOG and FBO
- Power Generation
- Building Inspection & Commissioning
- PetroChem/Refineries
- Infrastructure
IncludesVideoScope, SD memory card, handset with camera probeand 1m cable (Probe accessories: magnet, 45° mirror, andanti-snag tip), 3.7V rechargable Li-Polymer battery, patchcable, Universal AC adapter (110-240V, four plugs), USBand AV cables, and hard carrying caseTechnical Specifications
|
Extech HDV600 series of High Definition VideoScope Inspection Cameras are designed for use in practically any environment, these rugged, waterproof and drop-proof industrial videoscopes deliver images and video with remarkable sharpness and clarity.
|
Extech HDV620 includes 5.8mm semi-rigid, 60° FOV, macro probe (1m).
|
Extech HDV640 includes wired handset with nondetachable 6mm semi-rigid probe (1m) with macro lens.
|
Extech HDV640W includes wireless handset with nondetachable 6mm semi-rigid probe (1m) with macro lens.
|
