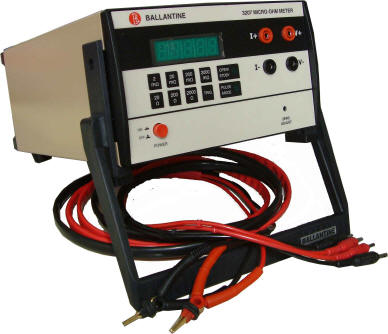

Ballantine 3207 Micro-Ohmmeter
The Ballantine 4-1/2 Digit Micro-ohm Meter 3207 measures Low Resistance in Milli and micro-ohms with
precise accuracy. It employs the proven 4-wire measurement technique and eliminates the lead resistance
inherent in 2-wire technique to give accurate readings.
Applications:
Cables, Components, Skin and Frame Bonds, PC Boards, Bus Bars &
Contactors, Electrodes, Motors & Transformers Systems
Features:
• 4-1/2 Digit LED Display
• True 4-Wire Measurement Technique to Eliminate Lead Resistance error
• Pulse Mode Operation for Basic Accuracy of 0.05%
• Rechargeable Internal Battery-Optional
• 2 milli-Ohm to 2000 Ohm Full Scale Ranges
• Resolution to 0.1 micro Ohm on 2 milli-Ohm Range
• RS-232 PC Interface
Technical Specifications:
Ranges
| Range (Ohms) |
Maximum
Reading |
Resolution |
Maximum
Current |
Accuracy |
| 2 milli-Ohm |
1.9999 milli-Ohm |
.1 micro-Ohm |
1 A |
+/- 0.5% +/- 5 dgts. |
| 20 milli-Ohm |
19.999 milli-Ohm |
1 micro-Ohm |
1 A |
+/- 0.05% +/- 5 dgts. |
| 200 milli-Ohm |
199.99 milli-Ohm |
10 micro-Ohm |
100 mA |
+/- 0.05% +/- 5 dgts. |
| 2000 milli-Ohm |
1999.9 milli-Ohm |
100 micro-Ohm |
10 mA |
+/- 0.05% +/- 5 dgts. |
| 20 Ohm |
19.999 Ohm |
1 milli-Ohm |
10 mA |
+/- 0.05% +/- 5 dgts. |
| 200 Ohm |
199.99 Ohm |
10 milli-Ohm |
1 mA |
+/- 0.05% +/- 5 dgts. |
| 2000 Ohm |
1999.9 Ohm |
100 milli-Ohm |
0.1 mA |
+/- 0.05% +/- 5 dgts. |
Reference Condition: 25 Deg C, 50% RH, Temp. Co. (+/-5 ppm of reading per Deg C)
Input Termination
4-Wire (2 voltage and 2 current terminals)
Input Protection
Maximum input voltage 250 V rms AC/DC
Current terminals protected by 1 A fuse, accessible on rear panel
Zero Adjust
Front panel screwdriver adjustment
Warm-up
15 minutes for specified accuracy
Environmental Characteristics
0 Deg C to 45 Deg C, RH less than 95%
Storage
-40 Deg C to 55 Deg C, RH no Condensation
Dimensions
340 mm (D) x 258 mm (W) x 145 mm (H), approx.
Weight 3.2
Power
90-132 V, 60 Hz |
True wire four wire lead set with gold plated alligator clips that open to a wide .800” (20.3mm).
|
Four wire measurement using the Kelvin Clip reduces the IR drop in test leads that can cause measurement inaccuracies on 5.5 and 6.5 digit DMMs
|
