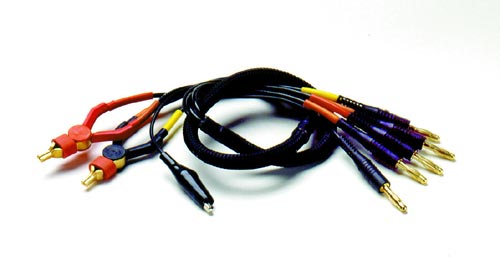

Pomona 5940 Kelvin Clip Cable Assembly with Banana Plugs

Pomona 5940 Kelvin Clip Cable Assembly with Banana Plugs

Features

• Ideal for resistant measurements below 1 ohm.
• Compatible with Fluke and Keithley 4 wire test instruments.
• Four wire measurement using the Kelvin Clip reduces the IR drop in test leads that can cause measurement inaccuracies on 5 ½ and 6 ½ digit DMM’s
• Additional banana plug and alligator clip are connected to the
• shield of the coaxial cables for added shield protection.
• Clamps and banana plugs are color coded for ease of testing.

Materials

• Banana plugs: Gold plated Beryllium
• Copper for low contact resistance.

Ratings

Operating Voltage:
          Hands free usage in controlled voltage
          environments: 45 Vrms maximum. For CE
          compliance: not intended for hand-held use
          at voltages above 33 Vrms/45 Vdc.
Current: 5 Amps
Operating Temperature: +122° F (+50° C)

Pomona 5940 Data Sheet
