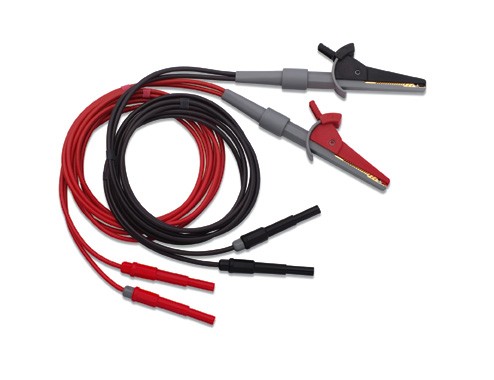

Pomona Model 6730 Wide Jaw Kelvin Lead Set

Pomona 6730 Wide Jaw Kelvin Lead Set

Features

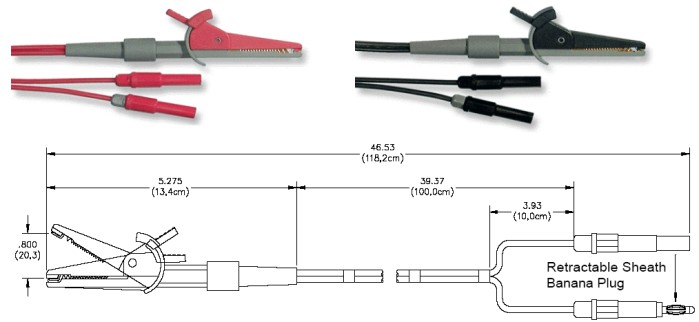

• True wire four wire lead set with gold plated alligator clips that open to a wide .800” (20.3mm).
• Long leads, over 46” (188 cm).
• Standard banana plugs with retractable sheath allows versatility in connecting to equipment.
• Color coded for easy source and sense identification.

• Alligator Contacts: Gold Plated Brass
• Banana Plugs: Nickel Plated Beryllium Copper
• Spring: Steel
• Insulation: Nylon 65, Nylon 6, Lucel, PVC
• Wire: Silicone

• Operating Voltage: 33 Vrms / 70 Vdc Max.
• Current: 2A Max.
• Temperature: -10º to +55ºC

Pomona 6730 Data Sheet
