Ashcroft Type L Series NEMA 4 Watertight Enclosure Temperature Switch
|
Item Number: LT
Manufacturer: Ashcroft
Part Number: LT
Product Options
* denotes required field
Enclosure/Function Selection*
You must select an option for 'Enclosure/Function Selection'.
Switch Element Selection*
You must select an option for 'Switch Element Selection'.
Thermal System Selection*
You must select an option for 'Thermal System Selection'.
Temperature Range Selection*
You must select an option for 'Temperature Range Selection'.
* Whole number only
|
|

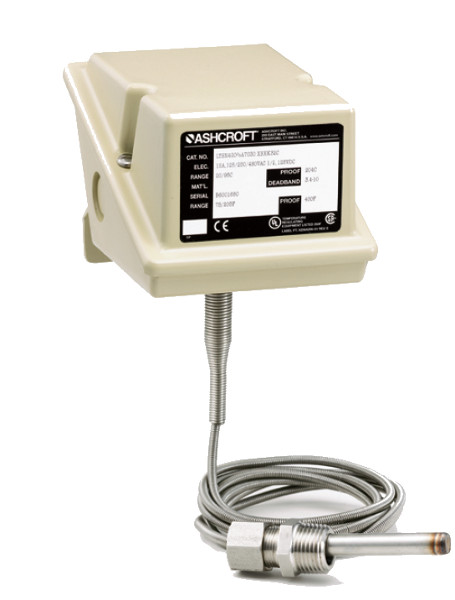

Ashcroft Type L Series NEMA 4 Watertight Enclosure Temperature Switch
This broad Ashcroft® temperature switch series is easy to use and readily retrofits to virtually all process, industrial and OEM applications.
Features
- Single or dual independently adjustable setpoint(s) meet all setpoint requirements
- Watertight NEMA 4X, IP66 enclosure
- Choice of switch elements for all applications, including hermetically sealed (NEMA 4 meets Class I, Div. 2, Groups A, B, C, & D with hermetically sealed switch)
- Fixed or fully adjustable deadband
- Readily available
- UL, CSA listings standard
- Setpoints adjustable from 15-100% of range

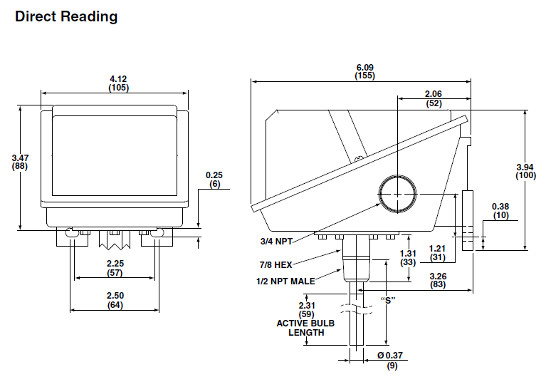

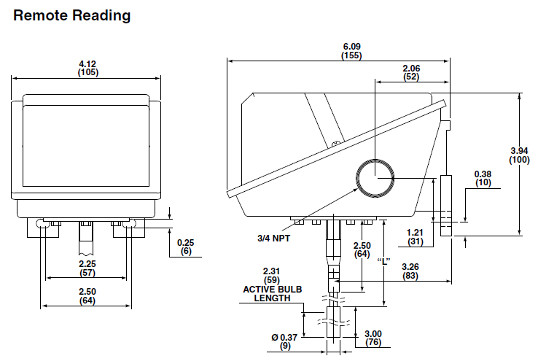

Dimensions
|
Ashcroft LP Watertight Enclosure Pressure Switch ranges from -30˝ Hg Vacuum to 3000 psi.
|
Ashcroft GP Watertight 316 SS Enclosure Pressure Switch ranges from -30˝ Hg Vacuum to 3000 psi.
|
Ashcroft LD Watertight Enclosure Differential Pressure Switch ranges from 30˝ H2O to 400 psid.
|
Ashcroft GT Watertight 316 SS Enclosure Temperature Switch ranges from –40/60°F to 500/750°F.
|
Ashcroft GD Watertight 316 SS Enclosure Differential Pressure Switch ranges from 30˝ H2O to 400 psid.
| |
