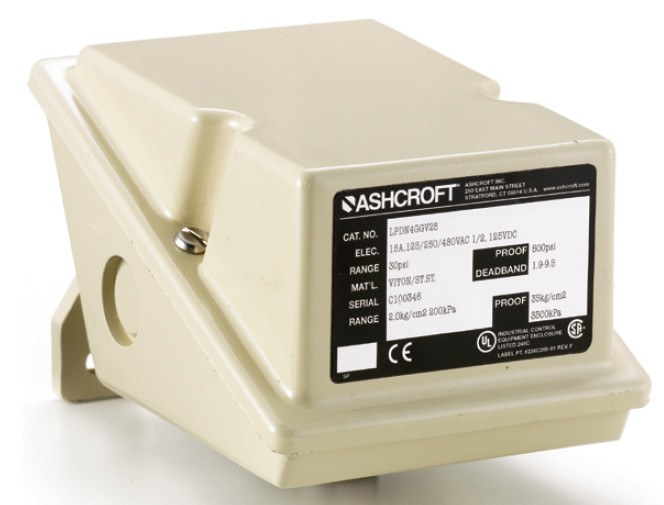

Ashcroft Type L Series NEMA 4 Watertight Enclosure Pressure Switch
Ashcroft Type L Series NEMA 4 Watertight Enclosure Pressure Switch
Our Price:
$245.50
Item Number:
LP
Manufacturer:
Ashcroft
Part Number:
LP
Product Options
* denotes required field
Enclosure/Function Selection
*
Select ...
Epoxy Coated/Single Setpoint, Fixed Deadband
Epoxy Coated/Single Setpoint, Adj. Deadband (+ $38.93)
Epoxy Coated/Dual Setpoint, Fixed Deadband (+ $38.93)
You must select an option for 'Enclosure/Function Selection'.
Switch Element Selection
*
Select ...
Heavy Duty – AC (+ $18.50)
Manual Reset, Actuates on Decreasing Pressure (+ $87.50)
Sealed Environment Proof (+ $25.74)
General Purpose
General Purpose – AC-DC
Hermetically Sealed – AC-DC (+ $102.09)
Narrow Deadband – AC (+ $14.82)
Hermetically Sealed Gold Contacts (+ $116.80)
Low Level (Gold) Contacts (+ $43.81)
Hermetically Sealed – AC (+ $102.09)
Heavy Duty – DC (+ $56.02)
Manual Reset, Actuates on Increasing Pressure (+ $48.78)
Ammonia Service (+ $20.88)
High Temp. 300°F Ambient (+ $15.90)
Dual Heavy Duty – AC (+ $43.81)
Dual Manual Reset, Actuates on Decreasing Pressure (+ $158.98)
Dual Sealed Environment Proof (+ $48.78)
Dual General Purpose
Dual General Purpose – AC-DC
Dual Hermetically Sealed – AC-DC (+ $206.57)
Dual Narrow Deadband (+ $29.31)
Dual Hermetically Sealed Gold Contacts (+ $244.42)
Dual Low Level (Gold) Contacts (+ $86.30)
Dual Hermetically Sealed – AC (+ $206.57)
Dual Manual Reset, Actuates on Increasing Pressure (+ $97.23)
Dual Ammonia Service (+ $41.43)
Dual High Temp. 300°F Ambient (+ $41.43)
You must select an option for 'Switch Element Selection'.
Actuator Seal Selection
*
Select ...
Buna-N – Included in Base (Enclosure) Price
Viton (Only available up to 1000 psi range) (+ $12.33)
Viton – ˝H2O Ranges (+ $54.84)
Teflon – psi, Vac. and Compound Ranges (+ $18.50)
Teflon – ˝H2O Ranges (+ $30.61)
Stainless Steel, Welded – psi Ranges to 1000 psi only (+ $54.84)
Monel, Welded – psi Ranges to 1000 psi only (+ $123.29)
You must select an option for 'Actuator Seal Selection'.
Pressure Connection Selection
*
Select ...
Standard – 1⁄4 NPT Female
7⁄16-20 SAE Female (+ $73.01)
1⁄2 NPT Male and 1⁄4 NPT Female (+ $36.55)
1⁄2 NPT Female – psi Ranges (+ $54.84)
You must select an option for 'Pressure Connection Selection'.
Range Selection
*
Select ...
-30˝ Hg Vacuum (+ $24.44)
-30˝ Hg/15 psi Compound (+ $24.44)
30˝ H2O (+ $36.55)
60˝ H2O (+ $36.55)
100˝ H2O (+ $36.55)
150˝ H2O (+ $36.55)
15 psi
30 psi
60 psi
100 psi
200 psi
400 psi
600 psi
1000 psi (+ $54.84)
2000 psi (+ $54.84)
3000 psi (+ $54.84)
You must select an option for 'Range Selection'.
Switch Options (psi, in. H2O)
Chained Cover (psi) (+ $18.50)
Chained Cover ("H2O) (+ $18.50)
FM Approval (psi) (+ $21.74)
FM Approval ("H2O) (+ $21.74)
Fungus Proofing (psi) (+ $35.80)
Fungus Proofing ("H2O) (+ $35.80)
Factory Adjusted Setpoint – Single or Dual (psi) (+ $21.74)
Factory Adjusted Setpoint – Single or Dual ("H2O) (+ $21.74)
Gas/Oil UL Limit Control to 600 psi (+ $60.89)
Steam Limit Control to 300 psi (+ $24.44)
Fire Safe Actuator, 1⁄4˝ NPTF (psi) (+ $97.23)
High Static Pressure Actuator for ˝H2O Ranges (+ $25.09)
3⁄4˝ to 1⁄2˝ Reducing Bushing (psi) (+ $6.39)
3⁄4˝ to 1⁄2˝ Reducing Bushing ("H2O) (+ $6.39)
Terminal Block – Single/Dual (psi) (+ $28.12)
Terminal Block – Single/Dual ("H2O) (+ $28.12)
Terminal Block – F-Series (psi) (+ $179.53)
Stainless Steel Tag (psi) (+ $13.74)
Stainless Steel Tag ("H2O) (+ $13.74)
Pilot Light(s) Top Mounted Single or Dual (psi) (+ $20.55)
Pilot Light(s) Top Mounted Single or Dual ("H2O) (+ $20.55)
Wire Leads Potted in Conduit Single or Dual (psi) (+ $57.43)
Wire Leads Potted in Conduit Single or Dual ("H2O) (+ $57.43)
1⁄4˝ NPTF 316 SS Pressure Conn. for "H2O Ranges (+ $54.84)
DPDT w/Single Setpoint Adjustment (psi) (+ $42.72)
DPDT w/Single Setpoint Adjustment ("H2O) (+ $42.72)
1 1⁄2˝ Sanitary Seal with Glycerin Fill (psi) (+ $195.75)
2˝ Sanitary Seal with Glycerin Fill (psi) (+ $195.75)
Cleaned for Oxygen Service (psi) (+ $50.08)
Quantity:
* Whole number only
Email this page to a friend
Ashcroft Type L Series NEMA 4 Watertight Enclosure Pressure Switch
This broad Ashcroft® switch series is easy to use and readily retrofits to virtually all process, industrial and OEM applications.
Features
Single or dual independently adjustable setpoints meet all setpoint requirements
Watertight NEMA 4X, IP66 enclosure
Choice of switch elements for all applications, including hermetically sealed
Fixed or adjustable deadband
Standard pressure connection materials:
Pressure psi ranges - 316L Stainless Steel
Differential psid ranges - Nickel-plated brass
Pressure and differential inches of water ranges - Epoxy coated carbon steel
Approved for UL, CSA and FM ratings
Wide choice of actuators, including designs for fire-safe and NACE applications
Readily available
Setpoints adjustable from 15-100% of range
Dimensions

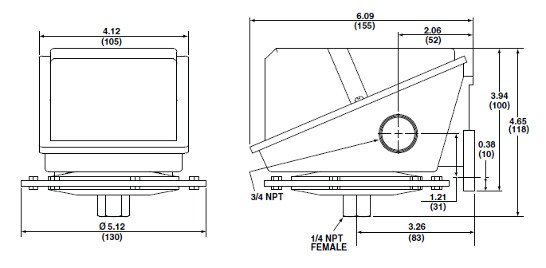

H2O Pressure Switch

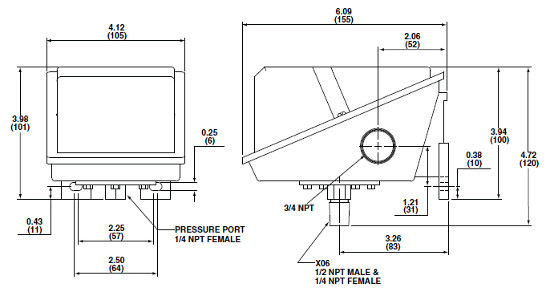

Vac 15-600 psi Pressure Switch
Ashcroft G&L Series Data Sheet
