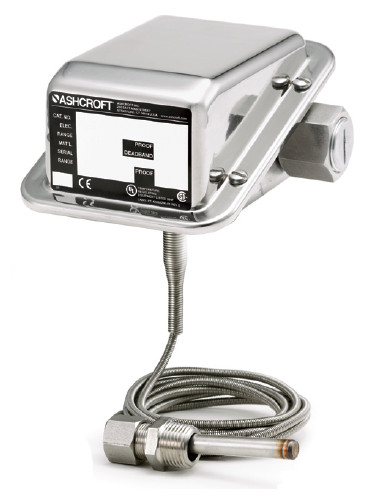

Ashcroft Type G Series NEMA 4 Watertight 316 SS Enclosure Temperature Switch
|
Item Number: GT
Manufacturer: Ashcroft
Part Number: GT
Product Options
* denotes required field
Enclosure/Function Selection*
You must select an option for 'Enclosure/Function Selection'.
Switch Element Selection*
You must select an option for 'Switch Element Selection'.
Thermal System Selection*
You must select an option for 'Thermal System Selection'.
Temperature Range Selection*
You must select an option for 'Temperature Range Selection'.
* Whole number only
|
|
Ashcroft Type G Series NEMA 4 Watertight 316 SS Enclosure Temperature Switch
This Ashcroft® specialty temperature switch series is ideally suited for harsh and corrosive environments often found in many process, industrial and OEM applications.
Features
- Watertight NEMA4X, IP65 enclosure
- 316 Stainless Steel construction
- Choice of switch elements for all applications, including hermetically sealed (NEMA 4 meets Class I, Div. 2, Groups A, B, C, & D with hermetically sealed switch)
- Single or dual independently adjustable setpoints meet all setpoint requirements
- Fixed or fully adjustable deadband
- Readily available
- UL, CSA listings standard
- Setpoints adjustable from 15-100% of range

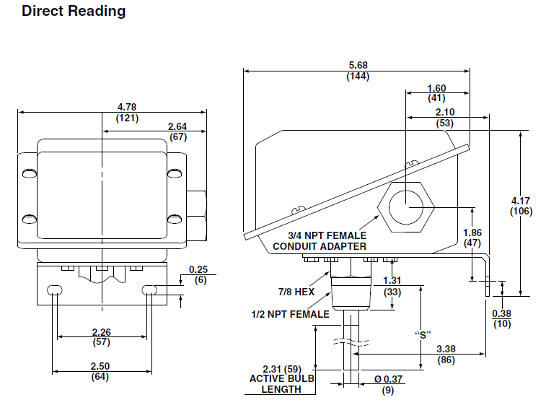

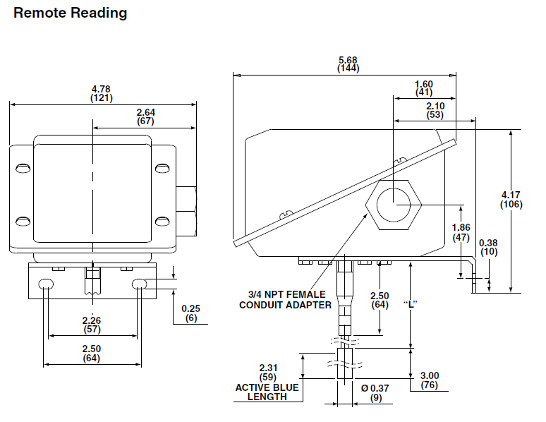

Dimensions
|
Ashcroft LP Watertight Enclosure Pressure Switch ranges from -30˝ Hg Vacuum to 3000 psi.
|
Ashcroft GP Watertight 316 SS Enclosure Pressure Switch ranges from -30˝ Hg Vacuum to 3000 psi.
|
Ashcroft LT Watertight Enclosure Temperature Switch ranges from –40/60°F to 500/750°F.
|
Ashcroft LD Watertight Enclosure Differential Pressure Switch ranges from 30˝ H2O to 400 psid.
|
Ashcroft GD Watertight 316 SS Enclosure Differential Pressure Switch ranges from 30˝ H2O to 400 psid.
| |
