Ashcroft ST-2A Pressure, Temperature, Voltage, & Current Indicator
|
Item Number: ST-2A
Manufacturer: Ashcroft
Part Number: ST-2A
Product Options
* denotes required field
Base Unit- Optional Features
RTD Probe Interface Module Options
Thermocouple Interface Module Options
* Whole number only
|
|

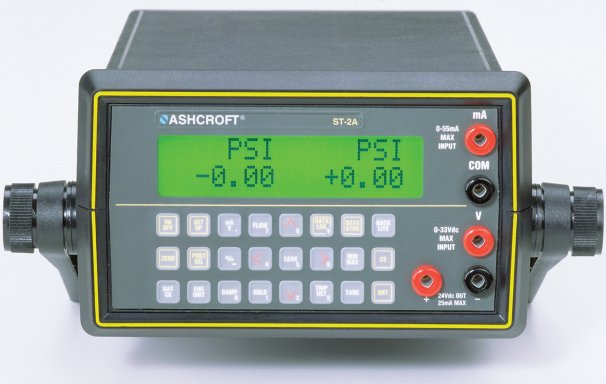

Ashcroft ST-2A Pressure, Temperature, Voltage, & Current Indicator
The ST-2A is the perfect bench com-panion product to the Ashcroft® ATE-100 fi eld handheld calibrator. This bench top (or panel mounting) package shares the same pressure and temperature modules and interfaces with the same software packages as the Ashcroft ATE-100. An intuitive, menu-driven user interface puts all of the ST-2A’s power at the simple press of a key. It uses the AQS (Ashcroft Quick-Select™) modular sensor system to provide the ultimate in measurement flexibility.
Features
-
Dual display – simultaneous measurement and display of pressure, temperature, voltage or current in any combination
-
Accuracy ratings of ±0.1%,±0.05% and ±0.025 of span (pressure)
-
Pressure ranges from 0.25 inches of water to 10,000 psi
-
Interchangeable pressure and temperature modules
-
Multiple engineering units – 12
-
High static DP measurement capability
-
Temperature measurement with most common RTDs and thermocouples
-
Programmable damping
-
Tare capability
-
Display hold
-
RS232 two way communications
-
Standard NIST traceable certificate of calibration
Optional Features
-
24 Vdc power supply
-
Data logging – Automatic, manual and delayed actuation
-
Data logging formatted for cert generation and computer based maintenance record keeping
-
Relays – hi/lo programmable configurations – N/O and N/C
-
Battery power – 5 AA NiCads with built-in charger
Applications
-
Switch testing including trip, reset and deadband.
-
Leak detection in either leak rate or pressure decay modes.
-
Flow velocity and volume measurement using standard pitot tubes and anubars.
-
Automatic % error calculation simplifies transmitter or transducer calibration.
-
Valve test and set using the Min/Max tracking feature.
Physical Specifications

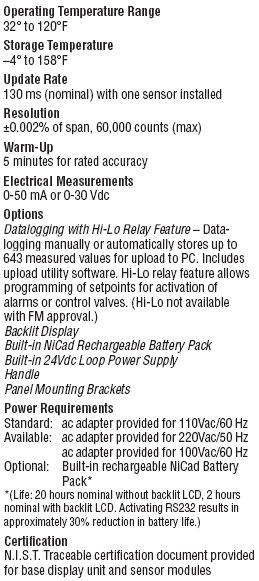

Operating Specifications
Temperature Interface Modules
AQS (Ashcroft Quick-Select) modules offer the ultimate in “plug-and-play” flexibility. They can be inserted and removed at the push of a button. The ST-2A automatically recognizes the sensor with no need for adjustments.
The AQS-1 pressure module provides ultralow pressure measurement solutions from 0/0.25 inches of water to 0/200 inches of water in gauge, compound and differential. They are designed for clean dry gas service and are durable with up to 1440 inches of water (50 psi) overpressure capability.
The AQS-2 pressure module provides ranges from 5 to 10,000 psi in gauge, vacuum, absolute and compound with 316SS isolation for severe media service available.
The AQS-RT temperature module provides an interface for 2, 3, and 4 wire RTDs. It is factory programmed with standard curves to support Pt100 (385 and 392), Ni 120, Cu 10. Another module supports Pt1000 temperature probes. Both can be programmed to support eight RTD curves.
The AQS-TC1 thermocouple interface module allows the ST-2A to measure temperature with types J, K, T, E, R, S, B and N thermocouples and includes an automatic reference junction.
|
The Ashcroft 840X010 probes measures temperature with common RTD measurement devices.
|
The Ashcroft AQS-2 inches water pressure module incorporates a piezoresistive, micromachined silicon sensor.
|
The Ashcroft AQS-2 gauge pressure module incorporates a piezoresistive, micromachined silicon sensor.
|
The Ashcroft AQS-1 low pressure gauge and differential pressure module is based on a proprietary, Dresser engineered, variable-capacitance sensor.
|
The Ashcroft AQS-2 quick-Select pressure module incorporates a piezoresistive, micromachined silicon sensor.
|
The Ashcroft AQS-2 quick-Select pressure module incorporates a piezoresistive, micromachined silicon sensor.
|
The Ashcroft AQS-2 quick-Select pressure module incorporates a piezoresistive, micromachined silicon sensor.
|
The Ashcroft AQS-1 low pressure compound module is based on a proprietary, Dresser engineered, variable-capacitance sensor.
|
