Ashcroft AQS-1 Low Pressure Compound Module
|
Item Number: AQS-1
Manufacturer: Ashcroft
Part Number: AQS-1
Product Options
* denotes required field
Compound Accuracy*
You must select an option for 'Compound Accuracy'.
Compound (Inches of Water)*
You must select an option for 'Compound (Inches of Water)'.
* Whole number only
|
|
Ashcroft AQS-1 Low Pressure Compound Module
These Quick-Select pressure modules are available for gauge, differential and compound measurement requirements. The variable-capacitance sensing element in the AQS-1 incorporates a micromachined silicon diaphragm. Silicon provides optimum repeatability with minimal hysteresis. The sensor is extremely stable, since the sputtered metal capacitance plates are molecularly bonded to the silicon. This design allows for the elimination of epoxies and other types of bonding and adhesive agents from the sensor assembly. The AQS-1 sensor is also extremely rugged. It can withstand extreme overpressure without significant error or calibration offset. In addition, the sensor is capable of withstanding significant shock and vibration without damage or loss of measurement output integrity.

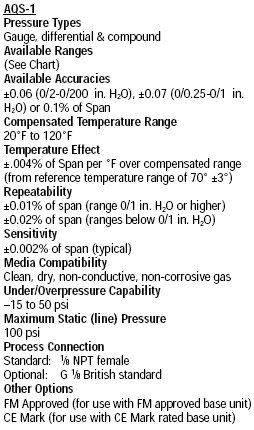

Technical Specifications
*Accuracy limited to 0.07% of span
Many Other Ranges Available, Please Call (732) 632-6400 with Needs
|
