Ashcroft AQS-2 Gauge Pressure Modules
|
Item Number: AQS-2
Manufacturer: Ashcroft
Part Number: AQS-2
Product Options
* denotes required field
Select Gauge Accuracy*
You must select an option for 'Select Gauge Accuracy'.
Range Selection (all ranges include 316SS isolation)*
You must select an option for 'Range Selection (all ranges include 316SS isolation)'.
* Whole number only
|
|
Ashcroft AQS-2 Gauge Pressure Modules
The AQS-2 Quick-Select pressure module incorporates a piezoresistive, micromachined silicon sensor. These sensors are available in ranges from 0/100 inches H2O through 0/10,000 psi and are also offered in absolute, vacuum and compound variants.
AQS-2 sensors are available for gauge and absolute pressure or vacuum measurement. 316 SS sensor isolation is provided on most ranges for applications involving fluids or corrosive gases. AQS-2 Quick-Select pressure modules are available in a variety of accuracies from ±0.1% of span through ±0.025% of span.

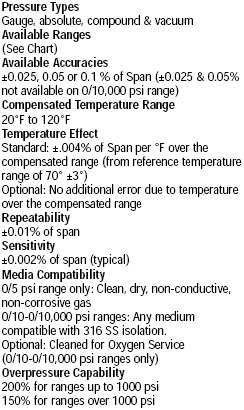

Technical Specifications
Many Other Ranges Available, Please Call (732) 632-6400 with Needs
|
