Ametek Jofra APM MK II Advanced Pressure Module
|
Item Number: APMMKII
Manufacturer: Ametek (JOFRA)
Part Number: APMMKII
|
|

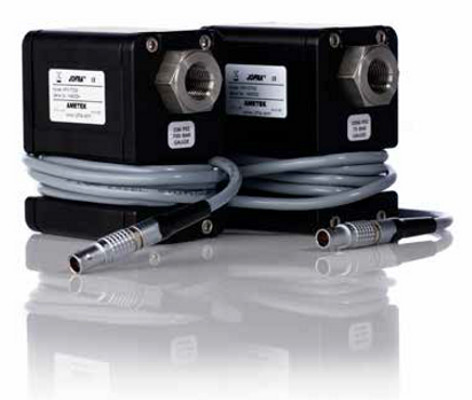

Ametek Jofra APM MK II Advanced Pressure Module
The APM Mk.II series of pressure modules are compatible with current AMC910, ASC300, ASC301 or HPC calibrators, and the former AMC900 and APC calibrators. The pressure model span across a wide pressure range and are available for all pressure types. From vacuum to absolute pressure, AMETEK covers any application with the pressure modules to meet your calibration needs.
These rugged modules are engineered for in-plant, field, or laboratory use. They are ready-to-use with the JOFRA calibrators and the protocol allows for immediate recognition and use of the module once it is connected to the calibrator.
The APM Mk.II is temperature compensated from 0 to 50°C / 32 to 122°F for on-site operation. It is a truly superior pressure module for laboratory and field use, bringing laboratory accuracy into the field. When combined with the calibrators and pump systems these modules makes powerful calibration tools. And, it is always possible to add modules as the calibration needs changes.
Features
- Accuracies to 0.025% RDG + 0.01 FS
Performance to meet almost any calibration
and measurement task.
Wide range of pressure ranges, from 25
mbar to 700 bar (0.4 to 10,000 psi) Full
Scale.
Gauge, differential, absolute, and vacuum
pressure modules available.
Cast aluminium housing. Engineered for
rough field use, almost unbreakable.
JOFRA calibrators recognize the modules
for ease of use, just plug it in…
- Self contained intelligent module
Calibration data are stored and processed
inside the APM. Enabling use of the APM
with any JOFRA calibrator, without initial
calibration of the “system”. Calibration and
traceability follows the module!
- Compatible with your JOFRA
The APM Mk.II modules are compatible
with your AMC900, AMC910, ASC300,
ASC301, APC or HPC500, HPC502 or
HPC600 calibrators.

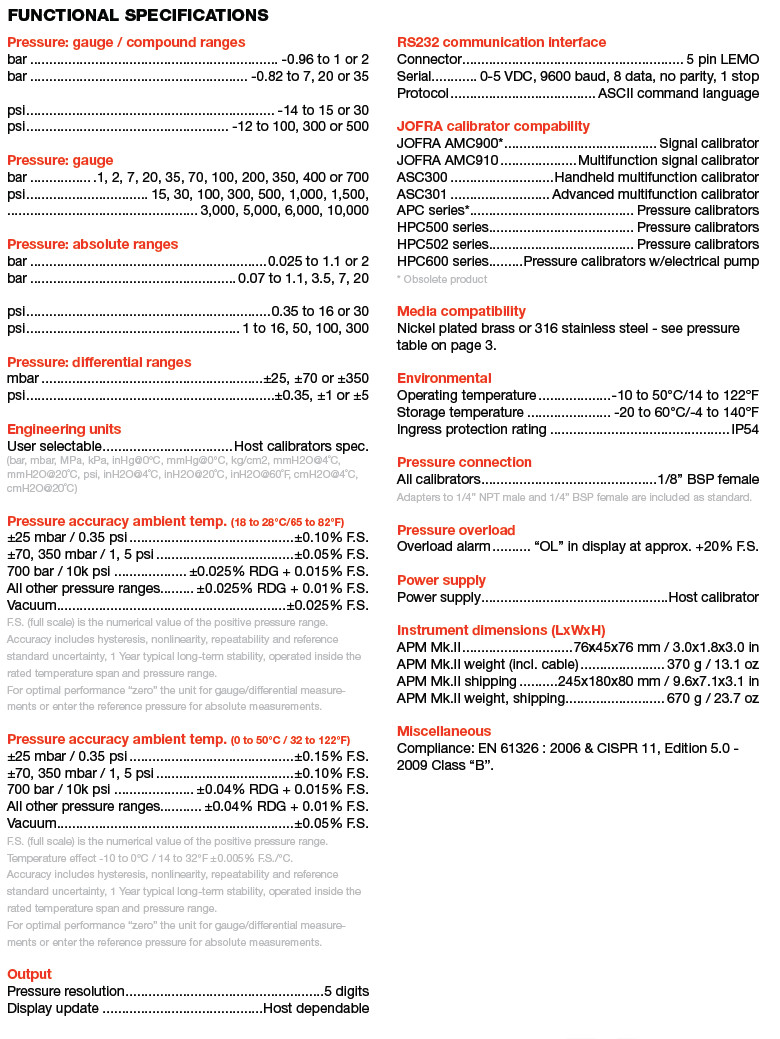

Technical Specifications

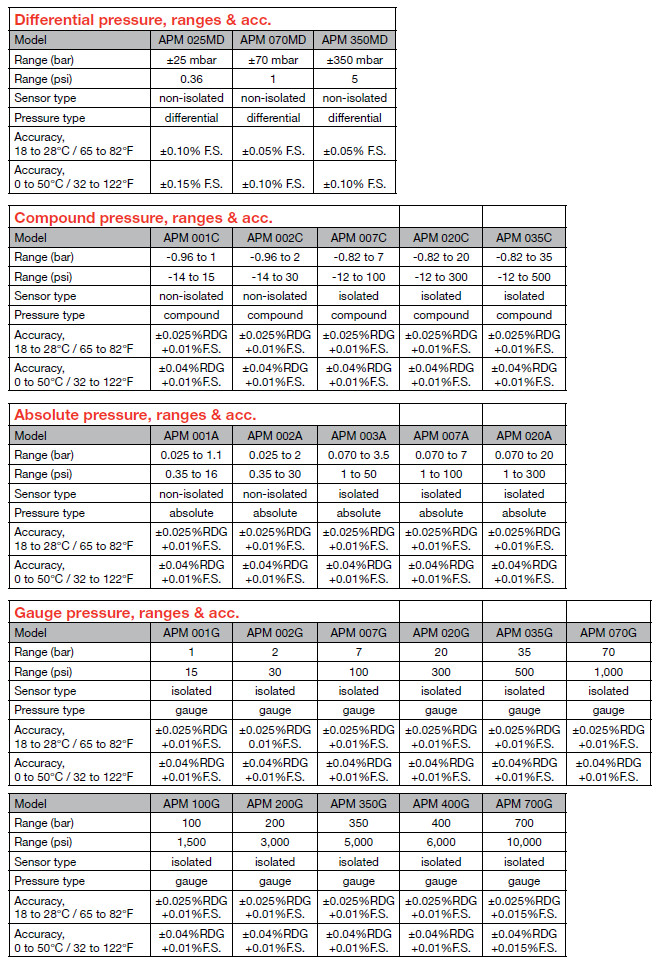

APM MK II Ranges
|
