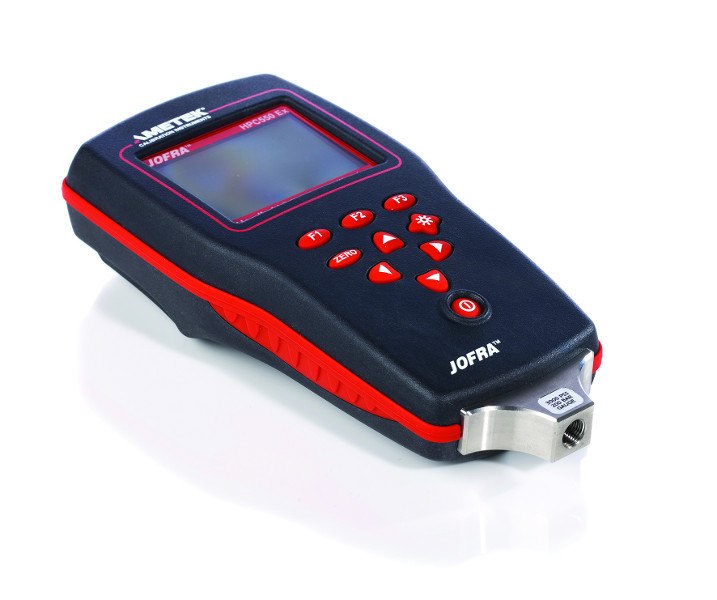

Ametek JOFRA HPC550Ex Family Handheld Pressure Calibrator, Single Range

Ametek JOFRA HPC550Ex Family Handheld Pressure Calibrator


     JOFRA HPC550/552Ex calibrators feature deadweight tester accuracy in a modern digital package. The HPC550/552Ex can be used in a very broad range of applications from simple tool type jobs to complex calibration jobs in custody transfer systems. Including potential hazardous areas in Oil, Gas and Chemical industries.

     The HPC550/552Ex series has been designed to meet high accuracy pressure calibration applications and faciliate your tasks. HPC550/552Ex offers features such as user configurable information display, 15 different pressure units, transmitter supply, mA input, % error calculation, voltage measurement, serial communication, and external pressure module capability. The accuracy of the HPC550/552Ex calibrators is specified in % of reading to ensure an even better accuracy and wider applicable pressure range. The HPC is temperature compensated from 0 to 45ºC/32 to 113ºF for on-site operation. It is a truly superior pressure calibrator for laboratory and field use, bringing laboratory accuracy into the field.

• Ex Safety Certifications
• Wide pressure range

25 mbar to 700 bar FS (0.35 to 10,000 psi)

• High accuracy

±0.025% of reading +0.01% F.S.

• True field calibrator

Fully temperature compensated

• Single or dual sensor versions

Chose between HPC550Ex single sensor calibrator, or HPC552Ex dual sensor calibrator. A HPC552Ex might be an alternative to two separate calibrators, saving investment and cost of ownership

• Full set of intelligent features

Wide selection of useful functions and features. Damping, leak test, % error calculation, min/max, switch test, etc.

• Thermometer

High accuracy thermometer, Pt100 sensor.

• Intrinsically Safety - Apparatus - IECEx and EU Ex standards

JOFRA HPC550/552Ex are intended for use in explosively hazardous areas and designed to prevent ignition by electrical, sparking or heating effects.

Technical Specifications

Ametek HPC550Ex Data Sheet
