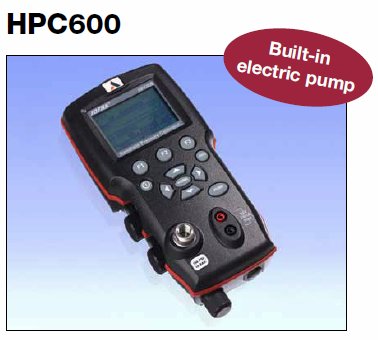

Ametek Jofra HPC600 Automatic Pressure Calibrator

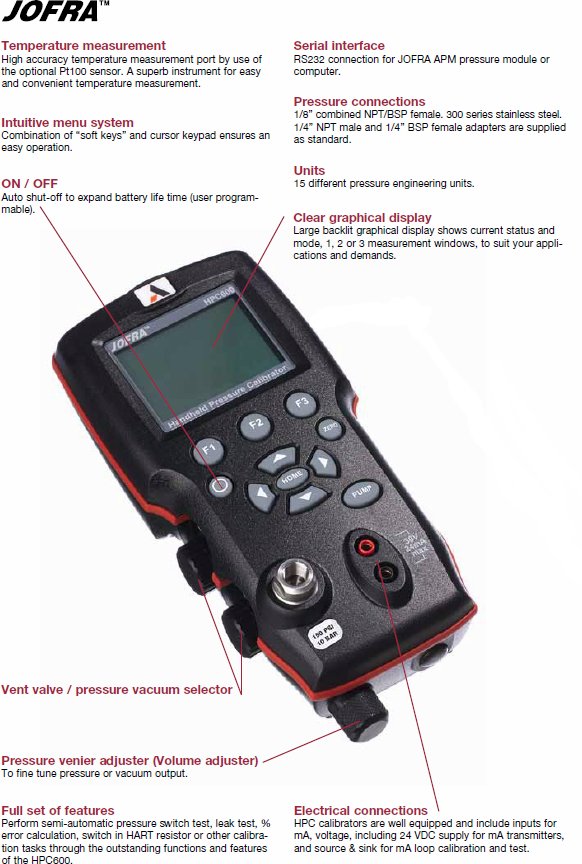

The JOFRA HPC600 calibrator features a built-in electrical pump system for generation of pressure and vacuum by a touch of a single key! Besides the unique pump system, the HPC600 offers a complete choice of features and functions making it an ideal tool and calibrator. A true multifunction solution designed to save time, money and space… HPC600 is a pressure indicator, a pressure calibrator, a complete mA loop calibrator, including 24 volt supply, a voltmeter, a thermometer and a pressure/vacuum generator. All supplied in a ruggedized housing with an easy intuitive operating system in the palm of your hand.
The HPC600 is delivered as a ready-to-test system, complete with hose, fittings, and a padded soft case, equipped to meet any need for pressure calibration. An international traceable calibration certificate, including vacuum and electrical parameters is part of the standard delivery to make the HPC600 a truly ready-to-use solution. The HPC600 can be used in a very wide range of applications from simple tool type jobs to complex calibration jobs in custody transfer systems. A time and money saver! HPC600 is a multifunction tool designed to meet high accuracy pressurecalibration applications.
The HPC600 offers features such as a user configurable information display, 15 different pressure units, transmitter supply, mA input/output, % error calculation, voltage measurement, serial communication, and an external pressure module capability. The accuracy of the HPC600 calibrator is specified in % of reading to ensure an even better accuracy and more applicable pressure range. The HPC600 is temperature compensated from -10 to 50 ºC / 14 to 122 ºF for on-site operations. It is a truly superior pressure calibrator for laboratory and field use, bringing laboratory accuracy into the field. The JOFRA APM series of pressure modules extends the application base of the HPC calibrators by allowing calibrations in additional ranges. The APM modules are compatible with several other JOFRA calibrators.

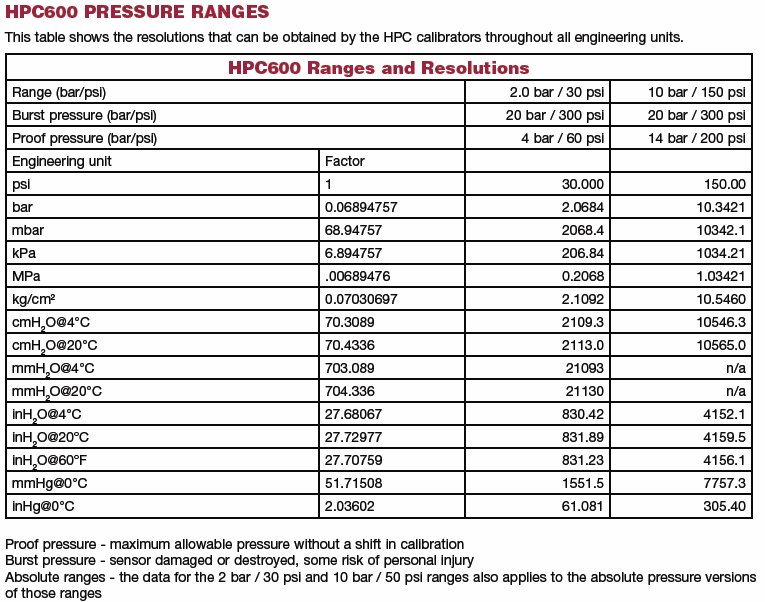

Pressure ranges
- HPC600-2A 0 to 30 PSIA (2 Bar Abs)
- HPC600-2C Vacuum to 30 PSIG (2 Bar)
- HPC600-10A 0 to 150 PSIA (10 Bar Abs)
- HPC600-10C Vacuum to 150 PSIG (10 Bar)
- HPC600-020C Vacuum to 300 PSIG (20 Bar)

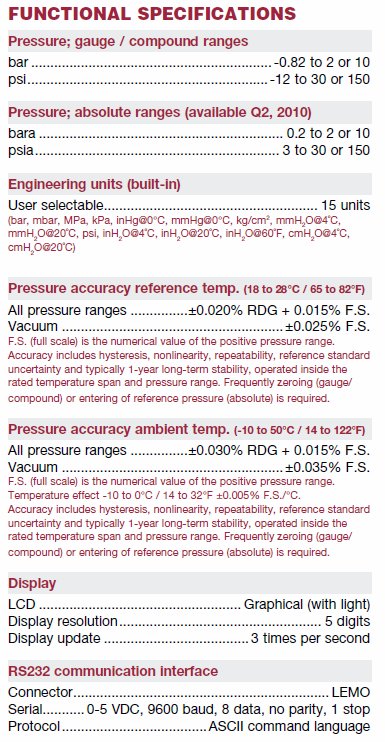

High accuracy
±0.020% of reading +0.015% F.S.
True field calibration
Fully temperature compensated
Unique built-in electrical pump
HPC600 has a built-in automatic pressure system, based on an electrical pressure and vacuum pump.
Complete 4-20 mA loop calibrator
HPC600 features a complete mA loop calibrator with all common loop calibrator features: measure, source & sink mA, and supply 24 volt for transmitters.

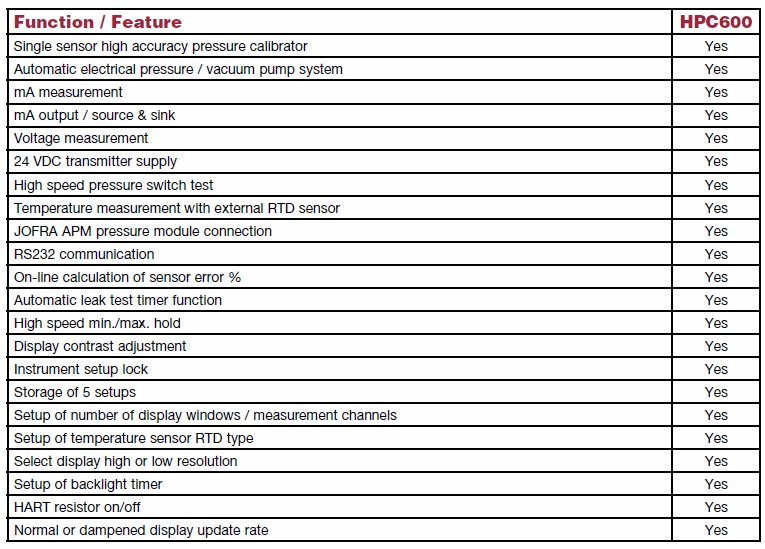

Comprehensive set of features
Wide selection of useful functions and features. Damping, leak test, error calculation, min/max, switch test, etc.
Thermometer
High accuracy thermometer, Pt100 sensor.
External pressure modules
More tham 60 different pressure modules, accuracy up to 0.01% F.S.
|
JOFRACAL CALIBRATION SOFTWARE
Compatible with 2010 software release
JOFRACAL calibration software ensures easy calibration of RTD´s, thermocouples, transmitters, thermoswithes,pressure gauges and pressure switches. JOFRACAL can be used with JOFRA DPC-500, HPC600, HPC500, HPC502 and IPI pressure calibrators, all JOFRA temperature calibrators, as well as JOFRA AMC910, ASC300 multi signal calibrator and ASM-800 signal multi scanner. When used with JOFRA ASM-800 signal multi scanner, JOFRACAL can perform a simultaneous semiautomatic calibration of up to 24 pressure and/or temperature devices under test in any combination. JOFRACAL software controls the complete calibration procedure, stores the results and provides a calibration audit trail through hard-copy certificates. All calibration data are stored for each sensor to monitor drift and optimize recalibration intervals. A scheduler feature allows planning of future calibrations. The JOFRACAL temperature calibration software may be downloaded free of charge.
|
|
 |
JOFRA APM Pressure Module
The JOFRA APM external pressure modules extend the range of the JOFRA HPC. There are more than 60 models available with gauge, absolute, differential, and vacuum pressure references, in metric and imperial engineering units. The modules are engineered for on-site or laboratory use. They are ready-to-use with the JOFRA HPC and the protocol allows for immediate recognition and use of the module once it is plugged into the calibrator.
|
|
Ametek APM MK II has a wide range of pressure ranges, from 25 mbar to 700 bar (0.4 to 10,000 psi) Full Scale.
| |
