Extech 380560 / 380562 High Resolution Milliohm Meter
|
Item Number: 380560
Configuration: -380560
Manufacturer: Extech
Part Number: 380560
Product Options
* denotes required field
Extech Ohm Meter Power Supply Selection*
NIST Calibration - Ohm Meter*
* Whole number only
|
|

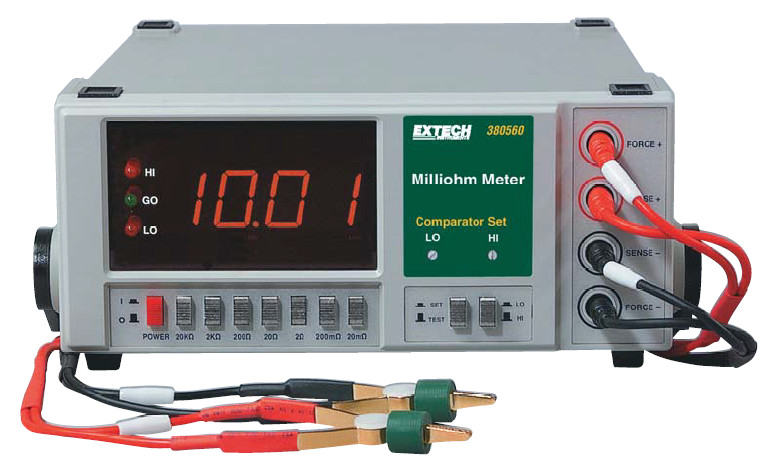

Extech 380560 Milliohm Meter
Features:
- Benchtop Milliohmmeter runs off AC Power
- 7 ranges for wide 20.00 milli-Ohm to 20.00 k-Ohm low resistance measurements
- High resolution to 0.01 milli-Ohm
- 1999 count display with large 0.8" digits
- 4-wire test cable with Kelvin clip connectors
- Automatic zero
- Built-in comparator for Hi/Lo/Go resistance testing or selection
- Complete with 4-wire cables with Kelvin clip connectors and power cord
Specifications:
 |
Replacement Kelvin Test Lead Set for Extech 380560 and 380460 milllohm meters. Will fit any meter that accepts standard shrouded banana plugs.
|
True wire four wire lead set with gold plated alligator clips that open to a wide .800” (20.3mm).
|
Four wire measurement using the Kelvin Clip reduces the IR drop in test leads that can cause measurement inaccuracies on 5.5 and 6.5 digit DMMs
|
The Extech 380460 offers 5 ranges of resistance measurement from 200 milliohms to 2 k-Ohms. Resolution is down to 0.1 milliohms.
|
