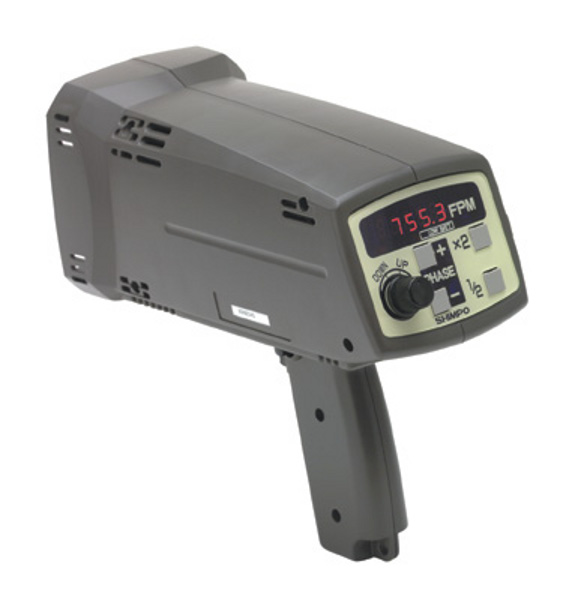

Shimpo Stroboscope DT 725 With Internal Battery
Our Price: CALL FOR PRICING
Item Number: DT-725
Manufacturer: Shimpo
Part Number: DT-725
|
|
Shimpo Stroboscope DT 725 with Internal Battery
The Shimpo DT 725 is packed with many of the same features as our famous DT-300 series but is lighter in weight. Constructed of strengthened high impact plastic, these rugged units are exceptionally reliable and withstand the same harsh conditions as more expensive units. Units are sold separately or as a convenient kit. The DT-725 KIT contains a strobe, extra flash bulb, charger and rugged carrying case. One year warranty.
Features
- Bright LED Display Aids viewing in poorly lit areas
- Light Weight Design
- External trigger allows unit to be automatically synchronized with equipment
- Continuous duty cycle eliminates need to shut down for cooling
- Phase shift allows visual analysis of rotating/reciprocating objects
- Easy adjust flash rate controller dial
- Synchronous output enables strobe to drive other strobes
- Easy tri-pod or permanent mounting with integral mounting thread
- Internal, fast-charge rechargeable battery supply
Technical Specifications
| Model |
DT-725 |
| Flashing Range |
40.0 – 12,500 fpm (flashes per minute) |
| Accuracy |
±0.02 % of reading |
| Resolution |
0.1 fpm: 40.0 – 4,999.9 fpm |
| 0.2 fpm: 5,000 – 7,999.9 fpm |
| 0.5 fpm: 8,000.0 – 9,999.5 fpm |
| 1 fpm: 10,000 – 12,5000 fpm |
| Phase Shift |
Use +/- push buttons (360° in 6 seconds) |
| Display Update Time |
Ext. mode : varies with flashing rate |
| Output Signal |
NPN open collector (24 VDC max., 50 mA), 150 μsec typical |
| Rate Multiplier/Divider |
Multiply by 2, divide by 2 |
| External Trigger Input Signal |
a) 12 – 24 VDC thru a 3-wire NPN output sensor (requires external power |
| b) 12 VDC thru a 2-wire proximity sensor (leakage current 1 mA max., load current 8 mA min.) |
| c) Switch or relay contact |
| Display |
5 digits, 0.3” (8 mm) high, LED |
| Flashtube Power/Life |
Xenon, 10 W max. (100 million flashes) |
| Flash Duration |
10 – 15 μsec |
| Low Battery Indicator |
Flashing LED |
| Battery Life |
1 – 2 hours depending on flash rate |
| Power Requirement |
115 VAC or 220 VAC ±10 % 60/50 Hz / Internal battery pack |
| Operating Temperature |
32° – 104°F ( 0 – 40°C ) |
| Dimensions |
7.28” L x 4.72” W x 4.72” H (185 mm x 120 mm x 120 mm) |
| Product Weight |
2.75 lbs (1.25 kg) |
| Package Weight |
4.45 lbs (2.02 kg) |
| Warranty |
1-Year |
| Included Accessories |
AC adapter |
|
