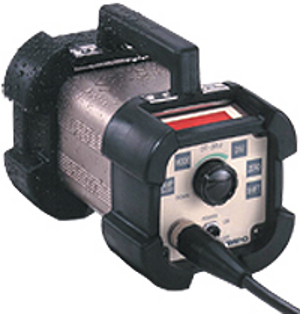

Shimpo DT-311J Stroboscope
Our Price: CALL FOR PRICING
Item Number: DT-311J
Manufacturer: Shimpo
Part Number: DT-311J
|
|
Shimpo DT-311J Stroboscope
Where powerful illumination and rugged speed measuring accuracy is required for the textile industry, the DT-311J will perform where other stroboscopes will not. The DT-311J is used to set injection timing, injection pressure, timing of shedding and weft running time of weaving machinery. Units combine rugged NEMA 4X (IP65) housing with high performance accuracy, special phase shifting, with shock absorbing components and top mounted handle, allows the equipment operator maximum flexibility when setting the timing of weaving machinery.
Features
- Internal signal “MODE” (flash), allow manual control and display of flash rate (rpm), deg (flash delay angle in degrees)
- External triggering control, automatically synchronizes to an input signal
- Phase “SHIFT” switch, single touch – changes flash timing, 0 – 359 degrees
- “ZERO” setting control, zeroing at any angle is easy-single touch
- Long life flashtubes, flash rates of 200-1500 fpm, the DT-311J flash tubes are designed for extra long life
- Angle division “DIV”, permits special flash interval ratio settings: 1/1, 1/2, 1/3, 1/4, and 2/4 flashes per rotation
Technical Specifications
| Model |
DT- 311J |
| Phase Shift |
0° – 359° / 1° increments |
| Flash Rate/Phase Angle Setter |
Rotary dial |
| Display |
4 digit 0.39 in (10 mm) high red LED |
| Divide Ratio |
1/1, ½, 1/3, ¼, 2/4 with shift |
| Input Signal |
High level: 5-24 V pulse; Low Level: 0-1 V pulse. 2 msec minimum. Impedance less than 10k Ω |
| Input Impedance |
47k |
| Display Mode |
Phase shift (degree), Tachometer |
| Accuracy |
±1 digit |
| Internal Signal Range |
200-1500 FPM |
| Flash Range |
200-1500 FPM |
| FlashTube |
Xenon lamp Max: 10w at 1,500 rpm. Life: 1,200 hours at 1,500 rpm |
| Power Requirement |
115VAC±5% 50/60Hz |
| Power Consumption |
20VA max |
| Operating Temperature |
32° to 104°F (0 to 40°C) |
| Dimensions |
N/A |
| Product Weight |
4.2 lbs (1.9 kg) |
| Package Weight |
6.2 lbs (2.81 kg) |
| Included Accessories |
19.68’ (6m) input/power cable with connector, rubber strobe guard w/ handle |
|
