Shimpo DT-900 Series TechStrobe Stroboscope
|
Manufacturer: Shimpo
Part Number: DT-900
Product Options
| Shimpo DT-900 Model: |
|
|
|
Shimpo DT-900 Series TechStrobe Stroboscope
The DT-900 TechStrobe and DT-900-PR TechStrobe Professional Kit from Shimpo Instruments is the perfect tool for slow motion, or stop action stroboscopic inspection. The Shimpo TechStrobe is the only palm size unit to include a Phase shift feature. Phase shifting allows the TechStrobe operator to advance or retard the flash timing by degrees° of angle, without changing the actual flash rate (FPM) of the TechStrobe.
Employing its unique Phase shifting feature, the TechStrobe “freezes” rotating or reciprocating machinery for visual inspection of covered gear teeth, shafts, oil/fuel/ink injector patterns, and print media; all without stopping production.
The TechStrobe is completely portable and operates up to 2.5 hours at 1600 FPM from its detachable, rechargeable battery. The ergonomically designed battery serves as the padded grip area. The battery is quickly detached and recharged while another battery is snapped into place.
Designed for right or left hand, all TechStrobe functions are intuitive and easy to use. Quality and Maintenance Professionals will appreciate the rotary and push button controls for internal flash (FPM/RPM) control, external triggering, tachometer mode and Phase shift control. The push buttons rapidly increase (x 2), or decrease (÷2) the flashes per minute (FPM) and change by degrees° the Flash phase.
Compact, impact resistant and rugged, with that balanced feeling for one-handed operation, the TechStrobe will quickly become one of the Quality and Maintenance Professionals’ favorite tools.
Shimpo DT-900 Series Features
-
Brightest flast of any strobe in its class
-
Long run per charge time
-
User adjustable flast rates
-
Buttons for easy times 2 and divided by 2 adjustment
-
Phase shift mode for full inspection of gears & rolls
-
Alphanumeric LCD display with easy user interface
-
Pne hand operation for right or left handed operators
-
Removable battery with built-in charge electronics
-
External trigger and clock output
-
Includes AC adapter and extra flashtube
-
TechStrobe kits includes free padded belt holster
| Features: |
Benefits: |
| Rechargeable Replaceable Battery |
Fast "Click in" battery replacement for recharging |
| Long Battery Charge Life |
Minimum of 2.5 hrs at 1600 FPM (flash per minute) |
| Ergonomic Design |
One handed operation |
| Intuitive Control Layout |
Simple to operate |
| Small Hand Held Design |
Fits most hands, easy to hold |
| Light Weight/Padded Handle |
Reduced tatigue, easy to hold |
| Tri-Pod Mount |
Hands free holding with (¼ x 20) mounting for swing arms, camera style tripods |
| Rotary and Push Button Flash Control |
Fast Up/Down push button, Fine tune with Rotary encoder |
| Flash Phase Shift |
Precise flash timing control (5° increments) push button or rotary control |
| Fast Charger |
No long wait for re-charging |
| Continuous Duty (adjustment) |
Full time flash with selectable "automatic off" |
| Tach Mode |
Provide RPM display when external sensor is attached. |

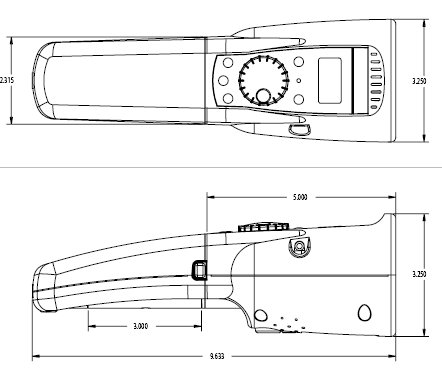

Shimpo DT-900 Series Dimensions:

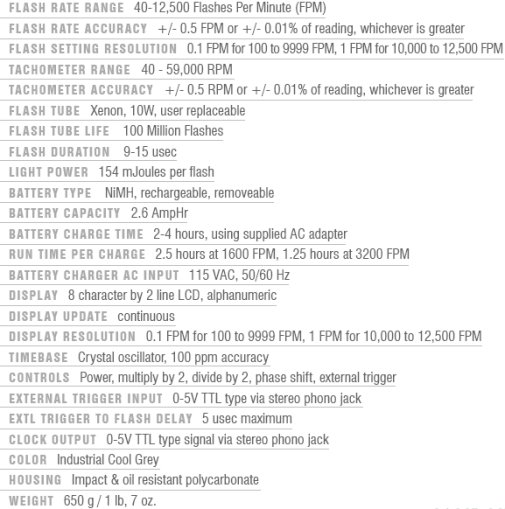

Shimpo DT-900 Series Specifications:
Shimpo DT-900 Series Configurations & Accessories:
DT-900: TechStrobe Stroboscope, with battery, 120VAC charger, spare flash tube
DT-900-U: TechStrobe Stroboscope, with battery, Universal AC charger, spare flash tube
DT-900-TR: Traveler Kit: TechStrobe Stroboscope, with battery, 120VAC charger, spare flash tube, carry case, padded belt holster
DT-900-UT: Traveller kit with universal charger
DT-900-PR: Professional Kit: TechStrobe Stroboscope, with 2 batteries, 120VAC charger, spare flash tube, carry case, padded belt holster
DT-900-UP: Professional kit with universal charger
|
Our Price: Starting at $68.00
