Rotronic HygroFlex5 Humidity & Temperature Transmitter
|
Item Number: HF5
Manufacturer: Rotronic
Part Number: HF5
Product Options
* denotes required field
Circuit Type / Supply Voltage / Output Signal Type (Probe Not Included)*
You must select an option for 'Circuit Type / Supply Voltage / Output Signal Type (Probe Not Included)'.
Installation Type*
You must select an option for 'Installation Type'.
Analog Output Parameters*
You must select an option for 'Analog Output Parameters'.
Standard Temperature Output Range*
You must select an option for 'Standard Temperature Output Range'.
ST: Custom Output Temperature Range
Optional Keypad and Display
Interface and Cable Fittings*
You must select an option for 'Interface and Cable Fittings'.
Parameter Output Range*
You must select an option for 'Parameter Output Range'.
SC: Custom Parameter Range
S: Custom Relative Humidity Range
* Whole number only
|
|
Rotronic HygroFlex5 Humidity & Temperature Transmitter
The HF5 is designed for fixed installation in HVAC and industrial applications. The HF5 transmitter is compatible with HygroClip2 probes with incorporated AirChip3000 technology. The HC2 (HygroClip2) probe achieves an unparalleled degree of accuracy that has never been seen before. With the combination of advances in sensor technology and integration, the HygroFlex HF52, HF53, HF54, HF55 and HF56 transmitters combined with a HC2-S probe provide superb precision and state-of-the-art functionality.
Features
- Relative humidity and temperature measurement
- Dew Point and other psychrometric calculations
- Interchangeable probe for easy maintenance
- Wide choice of probes to satisfy every application
- Low voltage and mains versions
- Freely scalable analogue signals
- Various digital outputs available
Easy to read display
• Display of the measured values on a clear,
backlit graphic display with trend indicators
• Configuration by keypad possible |
 |
Tried-and-tested housing
• Robust industrial housing
• Wall or duct mount versions |
Power supply
• 15 to 40 VDC/12 to 28 VAC
• 9 to 36 VDC/7 to 24 VAC (galvanically separated)
• 85 to 240 VAC (galvanically separated)
• Power over Ethernet (PoE) |
Output signals
• Two freely selectable and scalable analogue outputs
• Available as 2-wire (HF52), 3/4-wire (HF53)
3/4-wire (HF54, HF56 with galvanic isolation)
and digital (HF55) transmitter
• Optional digital outputs allow integration on a network
via or RS-485, Ethernet - wired or wireless
• Combined digital and analogue output signals,
allow control and monitoring of a device with one transmitter |
Wide selection of probes
• Compatible with all HygroClip2 probes
• Use of probe simulators allows easy system validation |
AirChip3000
• Compensates humidity and temperature over 30,000 reference points
• Dew/frost point calculation
• Active alarming and information
• ASIC (Application Specific Integrated Circuit), micro-controller and EEPROM on one chip |
Applications  Dimensions  Technical Specifications
|
HF52
2-wire
|
HF53/54/56
3/4-wire
|
HF55
Digital
|
| Probe type |
HygroClip2 probe, all models (1) |
| Probe cable extension |
Passive: max. 5 m, active 100 m |
| Accuracy at 23 ±5 °C |
probe dependent |
| Response time t 63 |
probe dependent |
| Start-up |
HF53/54/55/56: typically 3s, HF52: 10s |
| Measurement range |
probe dependent |
Electronics operating range
|
HF53/54/55/56: -40…60 °C / 0…100 %rh
HF52: -25...60 °C
(-10…60 °C with LCD) |
Display (option)
(HF52: no backlight)
|
Graphic display, backlit
Parameters configurable
|
| Trend indicators |
Yes |
Output signals (analogue)
|
Scalable by user
0...1 V, 0...5 V, 0...10 V, 0(4)...20 mA |
| Digital outputs (optional) |
Ethernet (LAN, WLAN), USB, RS-485 |
Power supply
|
HF52: 10...28 VDC: 10 V+(0.02x load)
HF53/55: 15…40 VDC /12…28 VAC
HF54 with galvanic isolation: 9...36 VDC
HF56 with galvanic isolation: 85...240 VAC |
| Power consumption |
HF52: max 40 mA |
|
HF53 <100mA, HF55 <300mA |
Circuit type
|
HF52: 2 x 2 wires, HF53/54/56: 3/4 wires
HF55: digital |
| Min. / Max. load |
V-signal: ≥1 kΩ/V / mA-signal: ≤500 Ω |
| Load compensation |
Yes |
| Firmware update |
Via service connector, requires HW4 software |
| Sensor diagnostics (drift, state) |
Programmable. Default: off |
| Humidity adjustment |
With keypad/software: multi point (HF53/54/55/56) |
Temperature adjustment
|
With keypad: 1 point
Software: 2 points (HF53/54/55/56) |
| Data logging function |
External, 2000 data point memory |
| Psychrometric calculations |
All selectable |
| PC interface |
With ROTRONIC interface cable HW4 compatible |
| Data processing by HW4 |
Graphs, statistical data and analysis, qualification etc. |
| Housing material |
ABS / Aluminium (HF5xxS) |
| Cable connections |
1 x M16x1.5, on terminals |
| Standards |
CE- compliant, 2007/108/EG |
| Audit trail, Electronic Records |
FDA 21 CFR Part 11 and GAMP compliant |
| IP protection rating & fire |
IP65 / Corresponds to UL94-HB protection class |

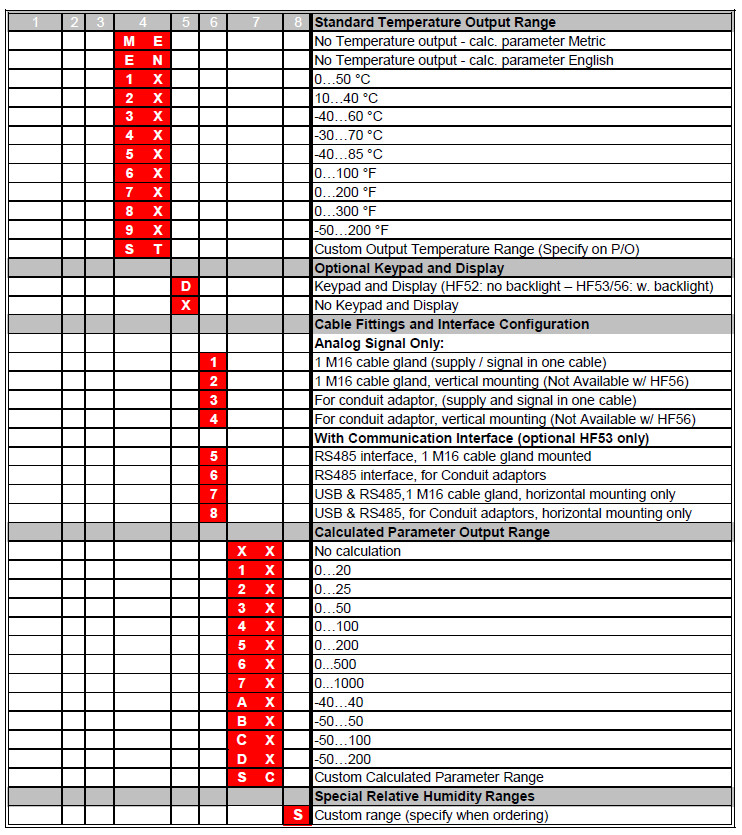

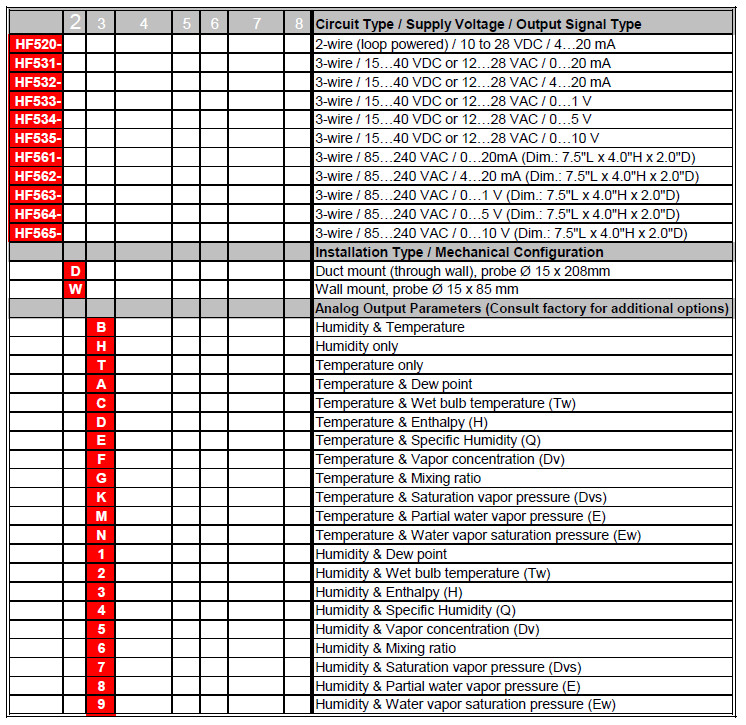

(1): HF520 transmitter is not compatible with industrial metal probesOrdering Codes
Notes:
- The HF53 can be ordered with both analog and digital interface (see "cable fittings" in the table).
- The enclosure of all models with optional display and keypad and/or with digital interface is designed to be installed in the horizontal position.
- The M16 cable grip is located at the bottom of the enclosure. The 1/2" conduit adapter in located on top of the enclosure.
- The factory default setting for the dew point calculation is frost point below freezing.
- The calculated parameter uses the same unit system (metric or English) as the temperature output.
- Custom range: be sure to clearly specify the desired range at the time of order. When a special range has been ordered, the letters ST, SC or S are used in column 4, 7 or 8 in the above table. These generic codes will be replaced with a specific code only for quantity and repeat orders.
- The probe used with the HF5 must be ordered separately. For technical information on the different probe models, refer to document E-M-HC2 Probes-V1.
- One (1) AC5005 mounting flange is included with the HF52 and HF53 duct mount transmitter.
|
The Rotronic HF55 measuring range is within 0 to 100 %RH and -100 to 200°C (-148 to 392°F), depending on the probe.
| |
