Rotronic HygroFlex3 Humidity & Temperature Transmitter
|
Item Number: HF3
Manufacturer: Rotronic
Part Number: HF3
Product Options
* denotes required field
Circuit Type / Supply Voltage / Output Signal Type*
You must select an option for 'Circuit Type / Supply Voltage / Output Signal Type'.
Installation Type*
You must select an option for 'Installation Type'.
Analog Output Parameters*
You must select an option for 'Analog Output Parameters'.
Standard Temperature Output Range Selection*
You must select an option for 'Standard Temperature Output Range Selection'.
ST : Custom Temperature Range
Optional Display (Space Mount Only)
Dew / Frost Point Range Selection
XSC: Custom Parameter Range
S: Custom Relative Humidity Range
* Whole number only
|
|

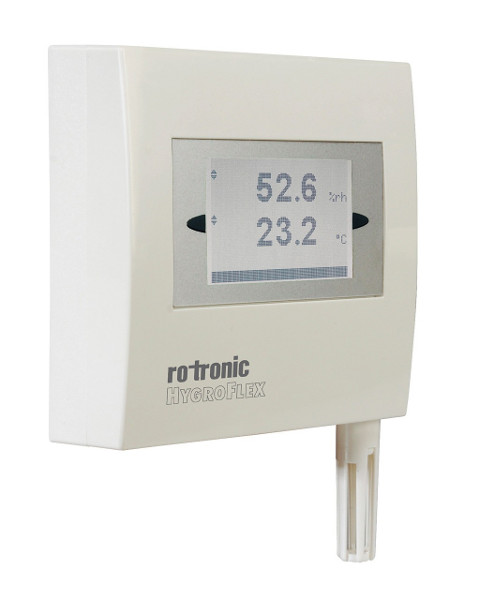

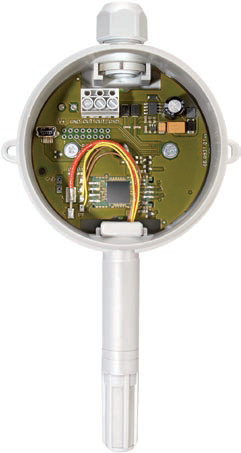

Rotronic HygroFlex3 Humidity & Temperature Transmitter
The HF3 transmitter is designed for fixed installation and it comes with an AirChip3000 chip inside the unit. The chip allows the instrument to achieve a degree of accuracy not seen before. The HF3 transmitter with the combination of advances in sensor technology and integration provides superb precision and state-of-the-art functionality, taking humidity, temperature and dew point measurement to a whole new level of performance and reliability (< 2 % rh / 0.3 K).
Features
- Relative humidity, temperature measurement and dew point calculation
- Outstanding accuracy and repeatability
- Hygromer® IN-1 humidity sensor
- Auto-diagnostics and automatic correction
- Freely selectable and scalable analog outputs
- Also available as hygrostat and thermostat
Highly versatile
• One or two selectable and scalable analog outputs
• Analog outputs assignable to relative humidity,
temperature or dew point
• 2-wire or 3/4-wire systems available
• Available with two integrated relay contacts for use
as a thermo-hygrostat |
 |
AirChip3000
• Compensates humidity and temperature
over 30,000 reference points
• 2,000 data point memory
• Dew/frost point calculation
• Sensor auto-diagnostics and automatic correction
• Active alarming and information
• ASIC (Application Specific Integrated Circuit),
micro-controller and EEPROM on one chip |
Fast response and precision measurement
• By decoupling the Pt100 temperature sensor from
the probe, thermal response is significantly improved
• Use of Pt100 1/3 Class B sensors for maximum
accuracy |
Applications
HF3 duct version
For use in ventilation shafts
|
HF3 wall version
For use in technical equipment rooms |
HF3 space version
For use in offices and rooms where appearance is important
|

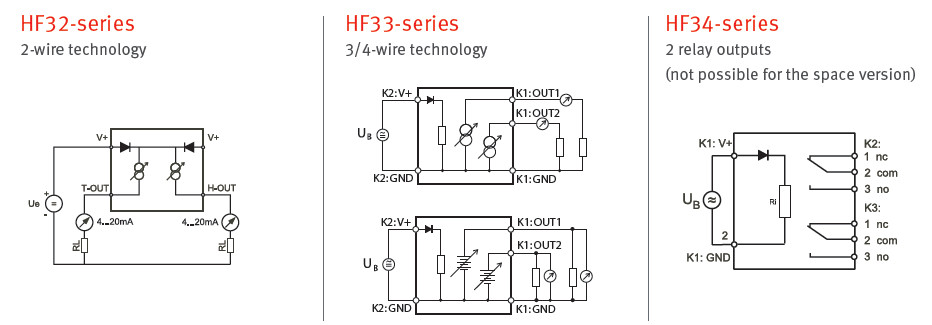

Outputs of the HygroFlex3

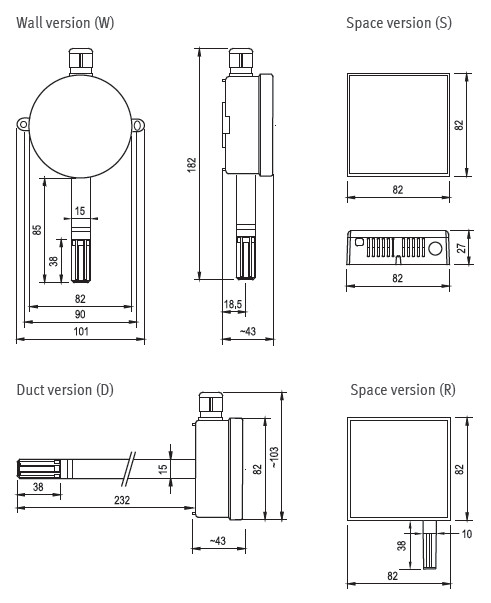

 Dimensions Technical Specifications
|
HF32
2-wires |
HF33
3/4-wires |
HF34
Hygro-/Thermostat
|
| Integrated sensors |
Yes |
| Humidity sensor |
ROTRONIC Hygromer® IN-1 |
| Temperature sensor |
Pt100 1/3 Class B |
| Accuracy at 23 ±5 °C |
±2.0 %rh / 0.3 K (±1.0 %rh / 0.2 K Type R) |
| Resolution AirChip3000 |
<0.02 %rh / 0.01 K |
| Long-term stability humidity sensor |
<1 %rh / year |
| Response time τ 63 |
<10 s |
| Measurement range |
-40…60 °C / 0…100 %rh |
| Electronics operating range |
-40…60 °C / 0…100 %rh (-10…60 °C with LCD) |
Display (Space version only)
(HF32S: no backlight)
|
Graphic LCD
Parameters freely configurable
|
| Alarm functions (programmable) |
Open or shorted sensor |
Output signals
|
Freely scalable by user
0...1 V, 0...5 V, 0...10 V, 0(4)...20 mA |
| Change in signal type |
HF33 only |
Power supply
|
HF32: 10...28 VDC: 10 V + (0.02 x load)
HF33: 15…40 VDC/12…28 VAC
HF34: 8…40 VDC /6…28 VAC |
| Power consumption |
HF32: max 40 mA, other models < 100 mA |
| Circuit type |
HF32: 2 x 2 wires, HF33: 3/4 wires |
| Min. / Max. load |
V-signal:≥1 kΩ/V / mA signal: ≤ 500 Ω |
| Firmware update |
Via service connector, requires HW4 software |
| Sensor diagnostics (Drift, state) |
Programmable. Default: off |
| Sensor protection |
Polyethylene filter |
| Max. air velocity |
20 m/s at probe |
Adjustments
|
Via ROTRONIC accessories
Humidity: multi point; temperature: 2 points |
| Hygro- /Thermostat |
2 Relays, HF34 only |
| Data logging |
Internal, 2000 data point memory |
| Dewpoint /frostpoint calculation |
Yes |
PC interface (service connector)
|
With ROTRONIC interface cable,
HW4 compatible |
| Housing material / weight |
ABS / approx. 120g |
| Cable connections |
1 x M16x1.5, on terminals |
| Standards |
CE- compliant, 2007/108/EG |
| Audit trail, Electronic Records |
FDA CFR21 Part 11 and GAMP compliant |
IP protection rating & fire
protection class |
IP65 / Corresponds to UL94-HB
|

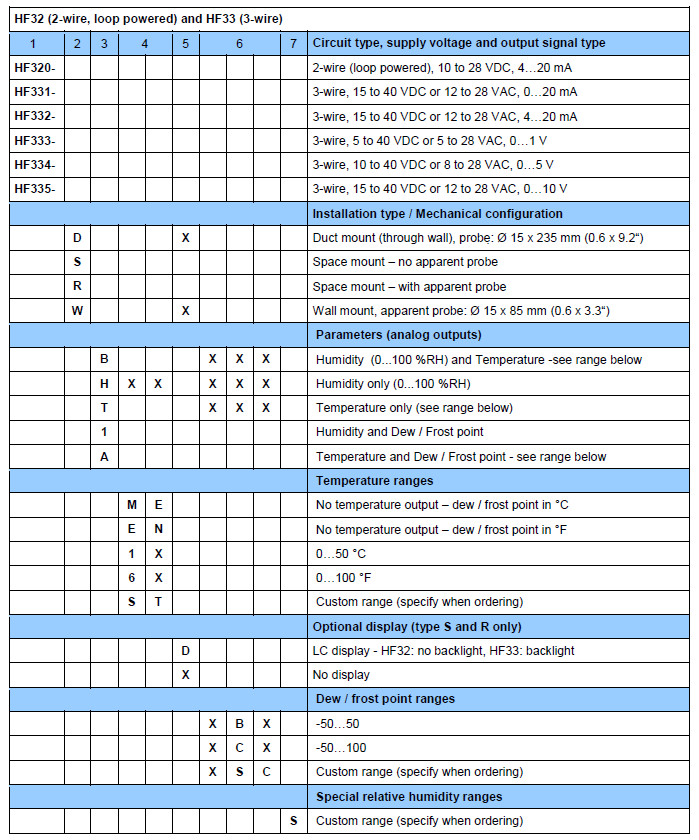

Ordering Codes Notes:
- Output 1: relative humidity or dew point
- Output 2: temperature
- The dew / frost point range uses the same unit (˚C or ˚F) as the temperature output. The factory default setting is frost point below freezing
- Custom range: be sure to clearly specify the desired range at the time of the order. When a special range has been ordered, the letters ST, XSC or S are used in columns 4, 6 or 7 in the above table. These generic codes will be replaced with a specific code only for quantity and repeat orders
- Use column 4 to specify the unit system (M or E) when temperature is not one of the analog outputs
|
