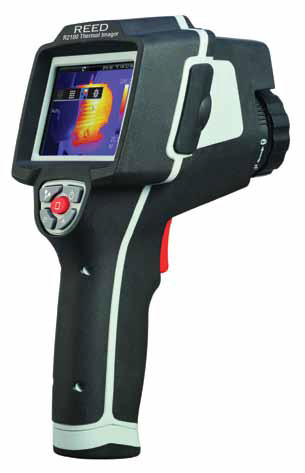

Reed Instruments R2100 Thermal Imager
|
Item Number: R2100
Manufacturer: Reed Instruments
Part Number: R2100
* Whole number only
|
|
Reed Instruments R2100 Thermal Imager
Features
- 3.5" colour TFT LCD capacitive touch screen with sun visor
- High thermal sensitivity (NETD) of <80mK
- Built-in laser and white LED flashlight
- Built-in visible light digital camera
- Includes 7.5mm (29.8 x 22.6° FOV) lens
- 20x continuous zoom
- Infrared and visual images, picture-in-picture as well as IR fusion
- Three spot, three area with min/max and average, two-line and isothermal measurement analysis
- Automatic hot/cold spot indicator
- Choice of six colour palettes including custom
- Automatic image capture
- Save images with voice annotations
- Video recording with voice annotations
- Micro SD memory card extension possible
- Includes thermal imager, 7.5mm lens, lens cap, micro SD memory card, video output cable, headset, USB cable, hood, tripod stand, shoulder strap, battery, charger, AC adapter, user manual, software CD and hard carrying case
Applications
- Plant/General Maintenance
- HVAC/R & Plumbing
- Transportation/Automotive
- Cooling and Reheating
- Serving areas
- Food Service Equipment
- Cold Storage
- Home & Building Inspection
- Electrical & Mechanical Inspection
- Predictive Maintenance
- Health & Safety
- Equine & Veterinary
- Road Construction
- Workplace Ergonomics

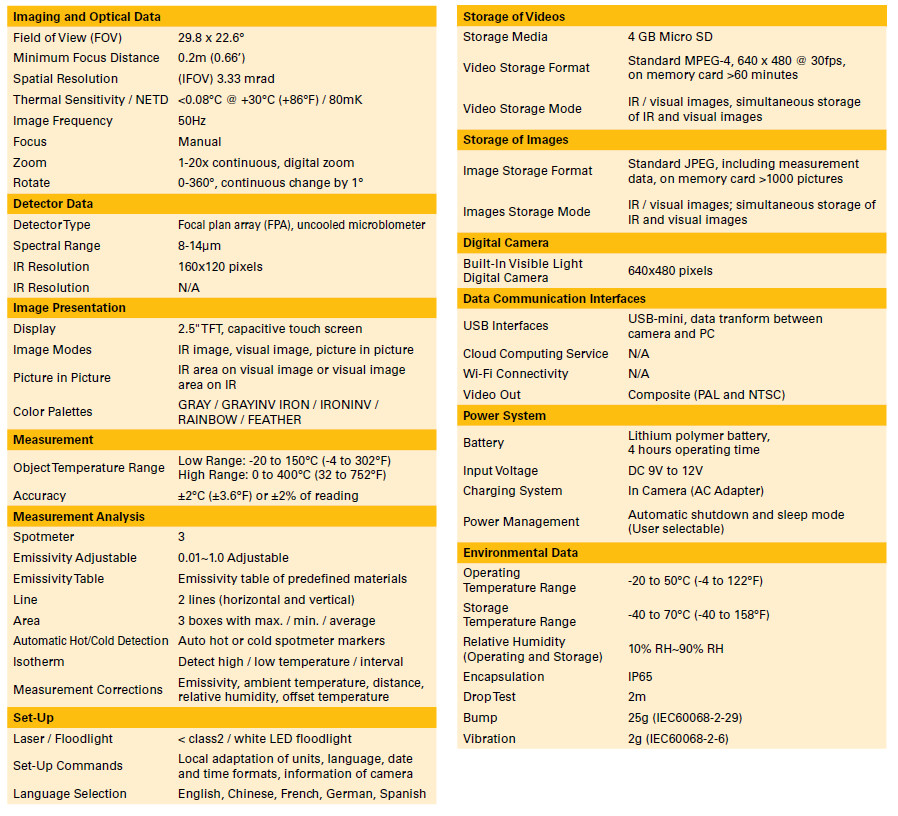

Technical SpecificationsIR Resolution: 160 x 120 pixelsField of View: 29.8 x 22.6°Detector Type: Uncooled microbolometerThermal Sensitivity (NETD): <0.08°C (80mK)Image Capture Frequency: 50HzFocus: ManualTemperature Range: -20 to 400°C (-4 to 752°F)Accuracy: ±2°C (±3.6°F) or ±2% of readingStorage Medium: 4GB micro SD cardInterface: USB-mini, audio, composite video(PAL and NTSC), Micro SD slotDrop Test: 2mEncapsulation: IP65Power Supply: 7.4V lithium polymer batteryBattery Life: 4 hoursDimensions/Weight: 243 x 103 x 160mm/920g
|
