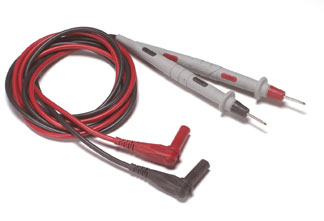

Pomona 5519A Replacemen DMM Test Leads

• Designed for Fluke, H-P, Tektronix and Wavetek DMM's with a safety style of sheathed banana jack.
• Probe body incorporates a two step mold process for insulation protection and wire strain relief.
• Probe test leads are designed with over-voltage spike protection of up to 6kV.
• Probe body inner insulation is fire retardant Polypropylene for added safety.
• Probe body and banana plug are molded directly to the wire for robust pull strength.
• Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance.
• Banana plug spring is nickel plated Beryllium Copper for long insertion life.
• UL Rated test accessory
• Probe Body: Outer Insulation - Santoprene® Rubber, Color: Gray
• Inner Insulation - Polypropylene, Fire Retardant, Color: One Black, One Red
• Tip: Nickel plated brass
• Wire: 18 AWG, 65 x 36 Tinned Copper Stand, Silicone Insulation, Length: 48" (122cm), O.D. .144" (3,66mm)
• Banana Plug: Body - Brass, Nickel Plated
• Spring - Beryllium Copper, Nickel Plated
• Insulation - PVC, Color: One Black, One Red
• RATINGS: IEC 1010-2-031, Category III, P2 Compliant, UL Rated
• Operating Voltage: 1000 VRMS/DC
• Current: 10 Amperes

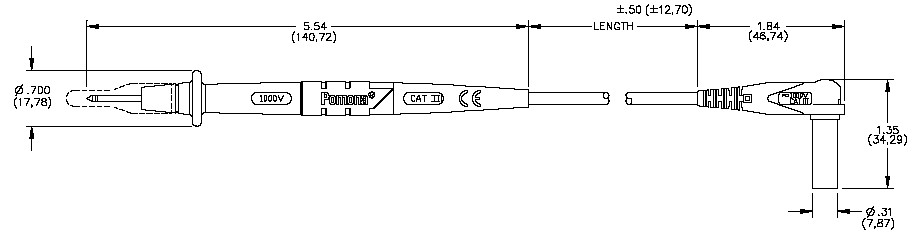

Pomona 5519A Data Sheet
