Newport 18 DIN DPi1701 Graphic Display Panel Meter and Data Logger
|
Item Number: DPi1701
Manufacturer: Newport Electronics
Part Number: DPi1701
* Whole number only
|
|
Newport 1⁄8 DIN DPi1701 Graphic Display Panel Meter and Data Logger
With Optional Alarm Relays, Isolated Analog Output,24 Vdc Excitation Voltage, and Wireless Receiver

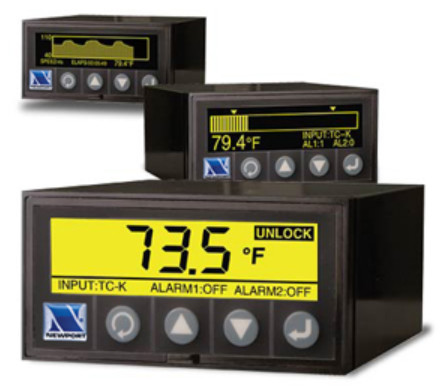

NEWPORT’s new 1/8 DIN DPi1701 Series graphic display panel meter and data logger provides unmatched display functionality and performance. The high intensity, backlit, graphic display (240 x 64 dots) provides powerful display features such as horizontal bar graph, line graph, and data logging in real time. The unit can be configured to accept Thermocouples (J, K, T, E, R, S), RTDs (2- or 3-wire), Voltage (0 to 10 Vdc), or Current (0 to 20 mA). Optional features are two Form C relays, isolated USB or RS232 PC interface, isolated analog output, isolated 24 Vdc excitation, and wireless receiver.
Features
- Monochrome, High Resolution Graphic Display
- Universal Input Accepts Thermocouples, RTD, and Process (Voltage and Current)

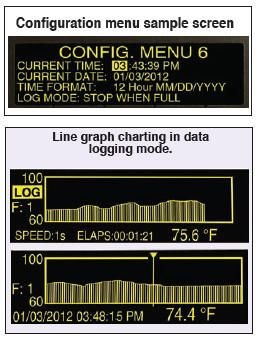

- Displays Process Input in Horizontal Bar Graph, Line Graph Charting, or Standard Digital Format
- Records 85,000 Data Points with Time Stamping
- Data Logging Based on Time and Date, Alarm 1 or 2, or Key Press
- Monitors and Displays Minimum and Maximum Process Values
- Universal Power Input from 90 to 240 Vac
- Isolated 24 Vdc Excitation to Power External Transmitters
 Technical SpecificationsDisplay: Monochrome backlit, 240 x 64 dots
Display Backlighting: High intensity yellow
Display Format: Standard digital, large digital, horizontal bar graph, line graph charting
Sampling Rates: 4 samples per second
Inputs
Thermocouple Accuracy: 0.5°C (0.9°F), 2.5°C (4.5°F) or 0.5% of full scale for R and S
Thermocouple Range:
Type J: -100 to 760°C (-148 to 1400°F)
Type K: -100 to 1260°C (-148 to 2300°F)
Type E: -200 to 849°C (-328 to 1560°F)
Type T: -200 to 400°C (-328 to 752°F)
Type R & S: 100 to 1760°C (212 to 3200°F)
Open Thermocouple Detection: Up scale
Thermocouple Lead Resistance: 100 Ω maximum
RTD: 100 Ω Platinum, 2 or 3 wire, 0.00385 curve
RTD Accuracy: 0.5°C (0.9°F)
RTD Range: -200 to 850°C (-328 to 1562°F)
Open RTD Detection: Up scale
Process (Voltage or Current)
Accuracy: 0.1% of Rdg
Voltage Input Range: 0 to 10 Vdc
Current Input Range: 0 to 20 mA/ 4 to 20 mA
Keypad: 4 tactile feedback keys
Data Logging
Recorded Data: Up to 85,000 data points with time stamping
Logging Mode: Stop When Full or Circular Buffer
Logging Start/ Stop: Press key, alarm 1 or 2 on, alarm 1 or 2 off, time and date
Output: 4 to 20 mA or 0/5 Vdc isolated
Alarms
Relay: SPDT, 250 Vac or 30 Vdc @ 3A
Alarm: Enable/disable, high/low, latch/unlatch
Deadband: Set via configuration menu
Excitation
Voltage Excitation: Isolated 24 Vdc @ 25 mA
PC Interface: Isolated USB or RS232 (9600 baud rate, 8-bit data, no parity, 1 stop bit)
Wireless
RF Transmitter Carrier: ISM 2.4 GHz, direct sequence spread spectrum, license free world wide
RF Data Packet Standard: IEEE 802.15.4 open communication architecture
RF Range:
Indoor/Urban: Up to 40 m (130')
Outdoor/Line of Sight: Up to 120 m (400')
RF Power Output: 10 dBm (10 mW)
Electrical Insulation
Power to Input/Output: 3000 Vac for 1 minute
Power to Relays: 2300 Vac for 1 minute
General
Power: 90 to 240 Vac ±10%, 50 to 400 Hz
Operating Conditions: 0 to 50°C (32 to 122°F), 90% RH non-condensing
Protection: NEMA-1/Type 1 front bezel
Dimensions: 48 H x 96 W x 118 mm D (1.89 x 3.78 x 4.65")
Panel Cutout: 45 H x 92 mm W (1.772 x 3.622")
Weight: 295 g (0.65 lb)
|
