Monarch DAX Nova-Strobe Deluxe AC Powered Stroboscope
The Nova-Strobe series represents the latest in portable stroboscope technology. The dax offers powerful features for both diagnostic inspection and speed measurements. Lightweight and bright with flash rates to 20,000 flashes per minute, these strobes are comfortable to hold and easy to operate.
The dax AC powered stroboscope (115 or 230 Vac) is designed for continuous cool operation, and weighs only 1.5 lbs. (0.68 kg).
Features:
-
Flash rates from 30 to 20,000 flashes per minute, adjustable in 0.1 step increments, the coarse/fine adjustment knob makes it quick and easy to set the exact flash rate you want. The all digital controlled microprocessor keeps readings rock steady
- Internal phase shifting allows the target to be jogged clockwise or counter clockwise in 5° increments
-
Times 2 and divide by 2 push buttons allow easy checking for actual RPM, harmonics and allow stop motion far beyond the 20,000 fpm limit
-
Store and recall up to 6 user selectable values. Last measurement memory, even with the power off
-
Flash rate may be displayed in Flashes per Minute (FPM) or Flashes per Second (Hz)
-
Individual input and output TTL jacks (1/8 inch phone) provides power to remote sensors and allows "daisy-chaining" of multiple strobes. A Tachometer mode allows accurate speed measurement up to 250,000 RPM using external sensors.
Applications:
-
Non-Contact RPM
-
Diagnostic Inspection
-
Bent Blades/Shafts
-
Slipping/worn belts
-
Stop-action Inspection
-
Textiles
 Nova-Strobe Kit
Specifications:
| Specifications |
Nova-Strobe dbx Digital, Battery |
Nova-Strobe dax Digital, AC Power |
| Range Flashes/Minute |
30-20,000 FPM / RPM |
30-20,000 FPM / RPM |
| Display |
Digital LCD |
Digital LCD |
| Accuracy/Resolution |
±0.002% of setting or +/- 1 lsd / 0.01 FPM |
| Flash Energy/Duration |
230 mJoule (20-50 µsec) |
| Average Power-Watts |
10W |
15W |
| Flash Tube Life (typical) |
100 million flashes |
100 million flashes |
| External Trigger(1/8" Phone Jack) |
TTL (24V Max) Provides 5V out |
| Tachometer Mode |
5-200,000 RPM |
5-200,000 RPM |
| Programmable Memory |
Yes |
Yes |
| Internal Phase Shift |
Yes |
Yes |
Operating Time
(fully charged batteries) |
60 minutes at 6000 FPM |
N/A |
| Power |
6 Vdc internal rechargeable batteries |
115 Vac, 50-400 Hz or 220-240 Vac, 50-400 Hz |
| Weight |
1.9 Lbs. (1.2 kg) |
1.5 Lbs. (0.72 kg) |
| Size (L x W x H) |
Body: 9" x 3.66" x 3.56" (229 x 93 x 90 mm); Reflector Housing: 4.8" (122 mm) diameter; Handle: 4.25" (108 mm) long |
|
L-1903 replacement lamp for Nova Stroboscopes
|
Our Price: Starting at $68.00
The Seahorse Hurricane Series SE-520 hard case is IP6 certified, watertight, airtight, dustproof, and available in a variety of colors with or without pick and pluck foam.
|
Our Price: Starting at $75.00
The Seahorse Hurricane Series SE-540 hard case is IP6 certified, watertight, airtight, dustproof, and available in a variety of colors with or without pick and pluck foam.
|
The Seahorse Hurricane Series SE-630 hard case is an automatic pressure purge system, has molded-in padlock holes, and is available with easy-to-install waterproof panel kits supplied with o-rings and screws.
|
Magnetic Tiggered Sensor with amplifier and (1/8") 3.5mm stereo phone plug termination
|
Remote Optical Sensor (ROS) with cable, mounting bracket and 12" reflective tape with (1/8") 3.5mm stereo phone plug termination
|
Infrared Sensor with 8' cable, (1/8") 3.5mm stereo phone plug termination and mounting bracket
|

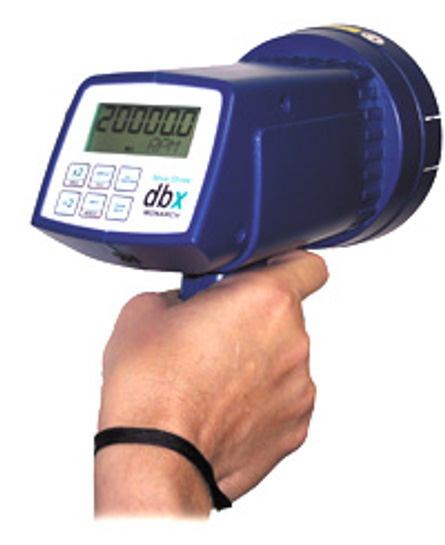

The next generation Monarch Nova-Strobe x Series Stroboscope deluxe with digital display, Battery Powered, 30-20,000 FPM.
|
