Monarch Magnetic Trigger Sensor
|
Item Number: 6180-xxx
Manufacturer: Monarch Instruments
Part Number: 6180-xxx
Product Options
* denotes required field
Monarch Sensor Cable Length Selection*
You must select an option for 'Monarch Sensor Cable Length Selection'.
* Whole number only
|
|
Monarch Magnetic Sensor
|
M-190
1-99,999 RPM. Self-powered gear sensor. M-190W Magnetic Sensor and M190P Magnetic Sensor are very popular magnetic sensors commonly used with 60 tooth 20 pitch gears. The sensors mount with 0.005 inches (0.127mm) of a 0.1 inch (2.5mm) target. These sensors require no power from our display modules as they self-generate an AC signal.
|
| |
|

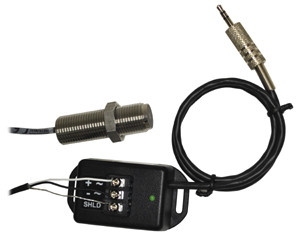

MT-190W and MT-190P
1-99,999 RPM. Same as the M-190 Magnetic Sensors but with an enhanced performance from the amplifier The amplifier extends the operating gap to 0.25 inches (6.35mm) from the target. Frequently used on gears The MT-190 and MT-190W provide a 3.3 to 24Vdc TTL output signal. |
Features
| MODEL | M-190 | MT-190 |
|---|
| Images |
 |
 |
| Operating Distance |
0.005" (0.127 mm) gap for target 0.1" (2.5 mm) minimum |
0.25" (6.35 mm) gap for target 0.1" (2.5 mm) minimum |
| Speed Range |
1-99,999 RPM |
1-250,000 RPM |
| Operating Temperature |
-100° to 225°F (- 73° to107°C) |
-100° to 225°F (- 73° to107°C) |
| Power required |
Self Generating |
3.3 to 24Vdc, 4 mA |
| Output Signal |
190V P-P |
TTL (Same as input power) |
| Standard Cable |
8 feet (2.4 m) |
8 feet (2.4 m) |
| Dimensions |
2.0 " (L) x 0.625" (50 x 16 mm) |
2.0 " (L) x 0.625" (50 x 16 mm) |
|
Reflective Tape for any non-contact photo tachometer, One 5 foot strip, 0.5
|
The M-190W requires no power from the display module and self-generates an AC signal.
|
