MadgeTech TC101A Thermocouple Data Logger
|
Item Number: TC101A
Manufacturer: MadgeTech
Part Number: TC101A
Product Options
* denotes required field
Thermocouple Connection Type Options*
You must select an option for 'Thermocouple Connection Type Options'.
Accessory & Replacement Part Options
* Whole number only
|
|

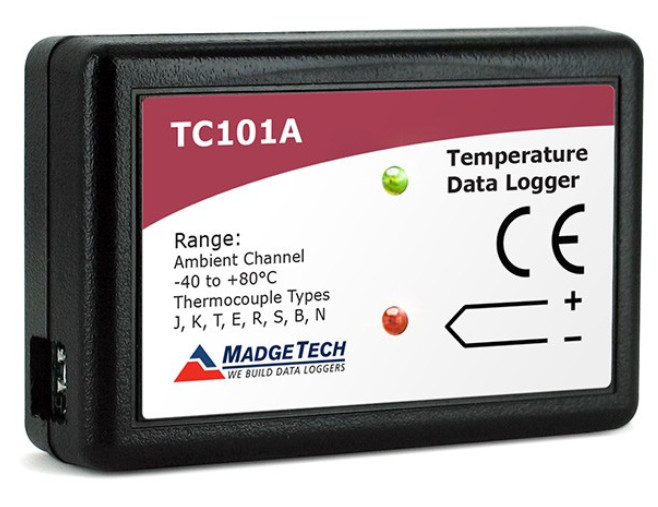

MadgeTech TC101A Thermocouple Data Logger
The TC101A is one of MadgeTech’s newest data loggers. It is part of a new series of low cost, state-of-the-art data logging devices. MadgeTech has taken the lead in offering the most advanced, low cost, battery powered data loggers in the world today.
The TC101A offers a 10 year battery life, 1 second reading rate, a multiple start/stop function, ultra-high speed download capability, 500,000 reading storage capacity, optional memory wrap, battery life indicator, optional password protection, programmable high-low alarms and more. Our research has shown that the TC101A is second to no other data logger when it comes to price and performance.

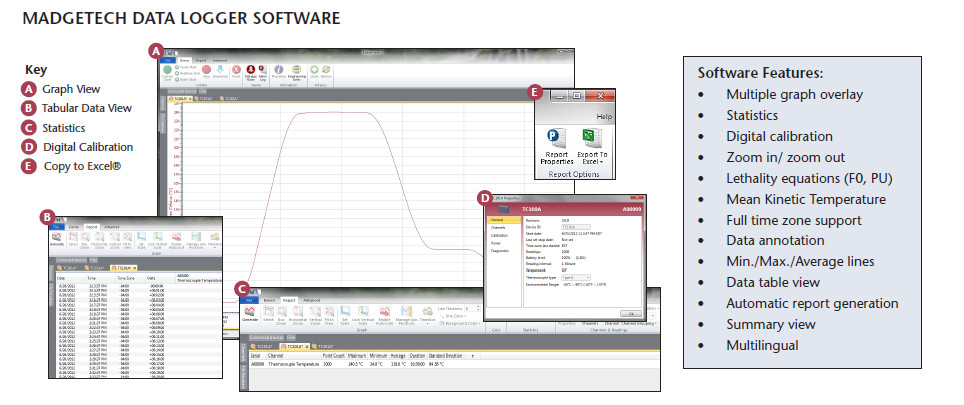

Using the MadgeTech Software, starting, stopping and downloading from the TC101A is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.
As the leader in low power data logger technology, MadgeTech continuously improves its products and develops solutions to meet ever-changing challenges. The TC101A was designed with our customers in mind. MadgeTech offers free firmware upgrades for the life of the product so that data loggers already deployed in the field can grow with new technological developments. Units do not need to be returned to the factory for upgrades. The user can do this automatically from any PC.
Thermocouple probe sold separately.
Features
- 10 Year Battery Life
- 1 Second Reading Rate
- Multiple Start/Stop Function
- Ultra High Speed Download
- 1,000,000 Reading Storage Capacity
- Memory Wrap
- Battery Life Indicator
- Optional Password Protection
- Programmable High and Low Alarms
- NIST Traceable
- Field Upgradeable
Benefits
- Simple Setup and Installation
- Minimal Long-Term Maintenance
- Long-Term Field Deployment
Applications
- Process Validation
- Dry Ice Shipments and Storage
- Oven Profiling
- HVAC
- Implement HACCP Programs
- General Purpose Temperature Recording
 Technical Specifications
|
Rugged thermocouple, for surface mount applications, has a washer mounting surface. Ideal for surface temperture measurement on motors, heater plates, coils etc.
|
PVC Thermocouple sensor with sealed epoxy tip. Standard model features a 15' length and mini male write-on connector.
|
The TC5 is a handy 5 pack of Ready-Made Insulated Thermocouples with Connector or Stripped Leads. Available in Type K, J, T or E sensor types.
|
Heavy duty transition joint thermocouple, 12" long, with 48" stainless steel overbraid leads and mini male connector. Available with Inconel or Stainless sheath. 1/16", 1/8", 3/16", 1/4" OD available.
|
Heavy duty transition joint thermocouple, 12" long, with 48" stainless steel armor leads and mini male connector. Available with Inconel or Stainless sheath. 1/16", 1/8", 3/16", 1/4" OD available.
|
Very fine tip (0.020") OD tipped sensor, 6" long, 1/16" OD Sensor with 6' teflon leads and mini male connector. Available in 304 Stainless or Inconel 600 sheath material.
|
Ready-Made Insulated Thermocouple Set with Subminiature Connector and Patented Integral Strain Relief / Wire Spool Caddy
|
The Newport MP Thermocouple measures surface temperature of ferrous materials. Idea for motors, bearings etc.
|
The IFC110 software package is compatible with all Madgetech micro series loggers
| |
