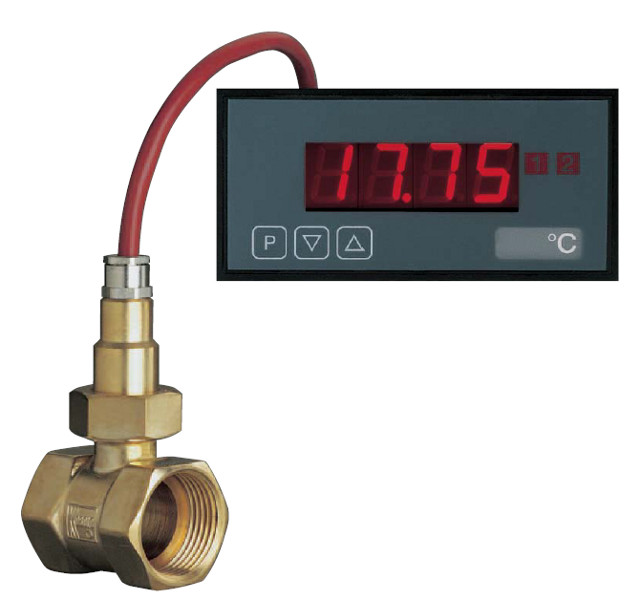

 Kobold TSA Resistive Temperature Sensor Kobold TSA Resistive Temperature Sensor with Digital Display |
|

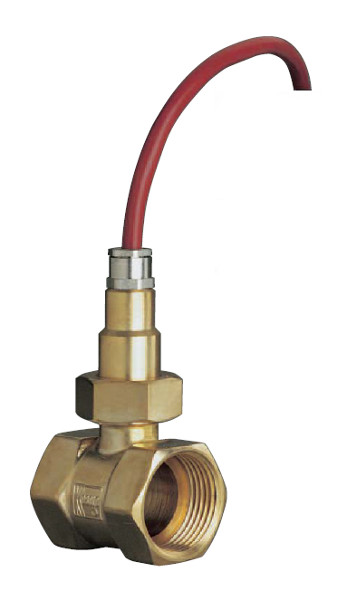

Kobold TSA Resistive Temperature Sensor
The KOBOLD model TSA temperature sensors respond quickly and are designed to operate between -40 and +150 °C. A laser-trimmed electronic sensor serves as measuring element in a rugged housing made of brass or stainless steel that is suitable for rugged service. Due to the laser trimming, the output signal of the temperature sensor is strong, therefore no line compensation is required for a supply leads of less than 20 m. The temperature sensor resistance is linear with a positive temperature coefficient. A suitable control system input or indicating device is needed to evaluate the output signal. The temperature sensors are delivered in a housing with female thread from ¼" to 1.5" NPT and 1.5 m silicone-rubber-insulated cable.
Features
- Measuring range: -40...150°C
- Measuring accuracy:
±2.5°C or Pt100
according to IEC 751
- Connection:

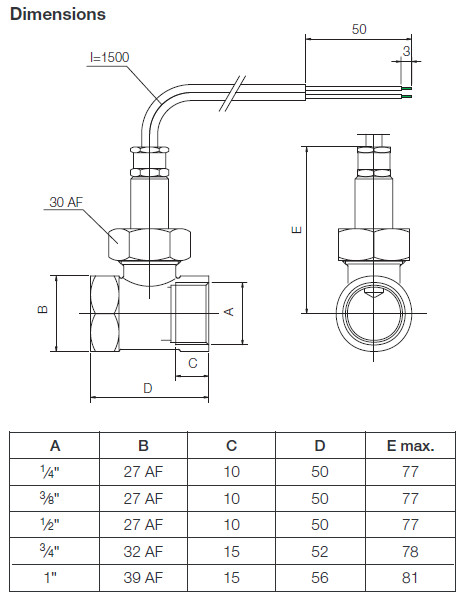

1⁄4" ... 1.5" NPT female
- Materials: brass, stainless steel
- Materials: brass, stainless steel
- No line compensation for supply leads
< 20 m required
- Linear temperature sensitivity
- Good long-term stability
- Rugged housing for rough service

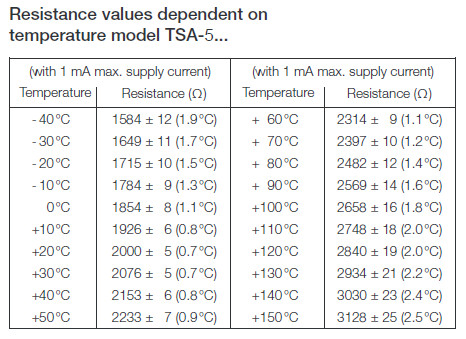

Technical SpecificationsMaterialHousing: brass or 304 stainless steelSeal: FKMCable: 1.5 m silicone-rubber-insulated cableMax. operating pressure:Brass: 230 PSIStainless steel: 360 PSIMedia temperature: -40 ... 150 °CMax. supply current: 1 mAMeasuring accuracy:Model TSA-5...: at 20°C: ± 0.7°C over the entire measuring range: ± 2.5°CModel TSA-6...: category B according to IEC 751 Seeresistance thermometers for further details
|
