Kobold SV-6100 Flowmeter and Switch (Brass)
|
Item Number: SV-6100
Manufacturer: Kobold Instruments, Inc.
Part Number: SV-6100
Product Options
Kobold SV-6100 Model Options
* Whole number only
|
|

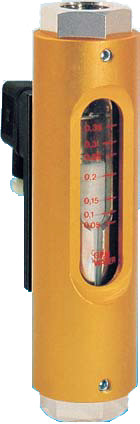

Kobold SV-6100 Flowmeter and Switch (Brass)
KOBOLD SV flowmeters and switches work on the well-known float system, but without the use of the open conical measuring tube. Instead the instruments use a cylindrical control tube with a conical groove along its axis. The upper edge of the float indicates the flow on the measuring glass, which is calibrated in GPM or SCFM.
Features
- ±4% Full Scale Accuracy
- Small, Compact Design, Low Weight
- Direct Reading Scales for Water and Air
- Wide Measuring Range
- Vertical Connections for Easy Installation

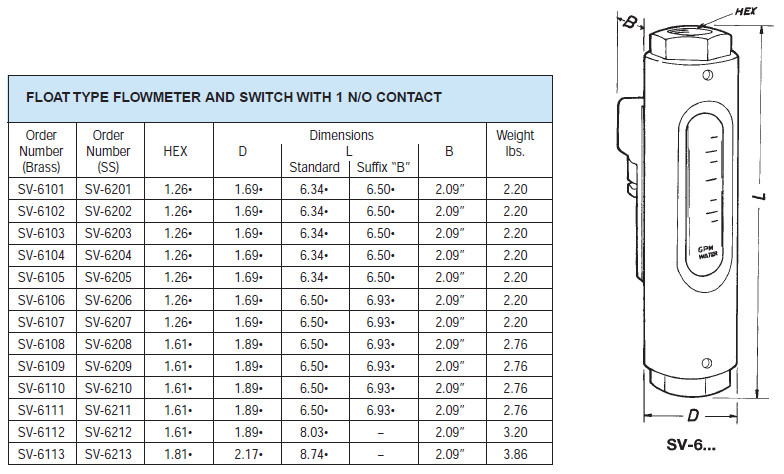

Dimensions Technical Specifications
| Measuring/Switching Range |
|
| Water |
0.075-0.35 to 2.5-40 GPM |
| Air |
0.25-1.25 to 10-150 SCFM |
| Fitting |
1/4" - 1-1/4" NPT |
| Material |
Ni-plated Brass, SS |
| Max. pressure |
145 PSIG |
| Max. temperature |
160°F/240°F |
| Accuracy |
± 4% FS |
| Option |
Reed contact |
|
