Kobold SEN OEM Pressure Transmitter
|
Item Number: SEN
Configuration: -NODISPLAY
Manufacturer: Kobold Instruments, Inc.
Part Number: SEN
Product Options
Kobold SEN Fitting, Accuracy, and Output Type
Kobold SEN Ranges
Kobold AUF Model Options
* Whole number only
|

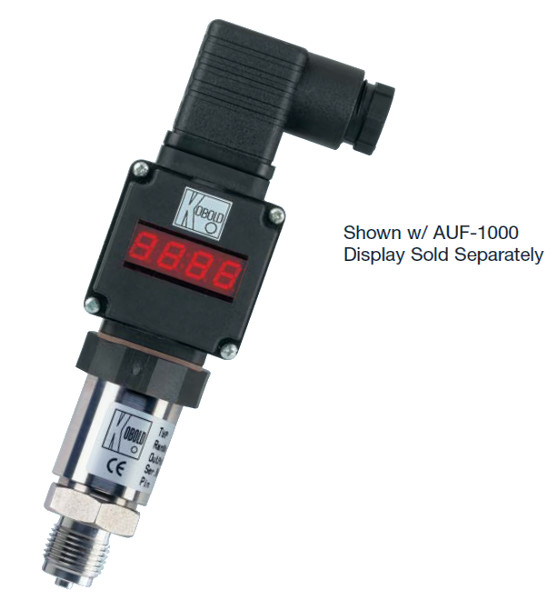

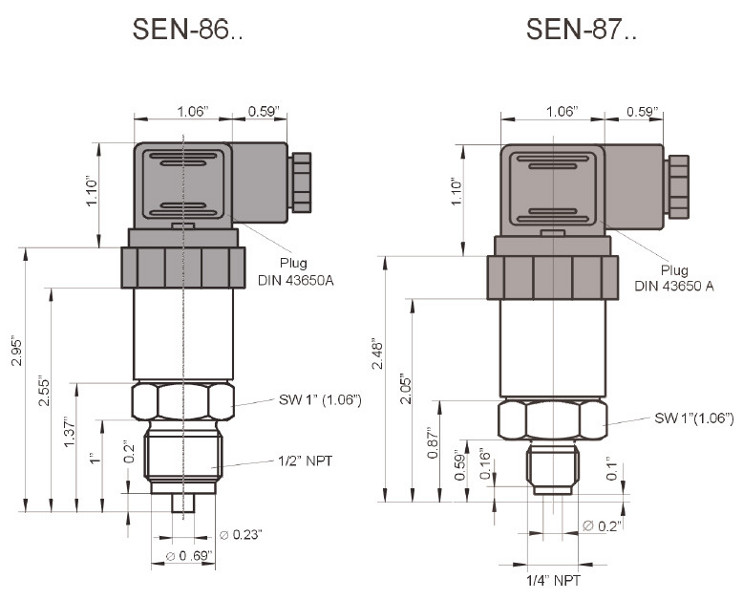

 Kobold SEN OEM Pressure Transmitter Kobold SEN OEM Pressure Transmitter Dimensions Kobold SEN show with optional AUF-1000 Display |
|

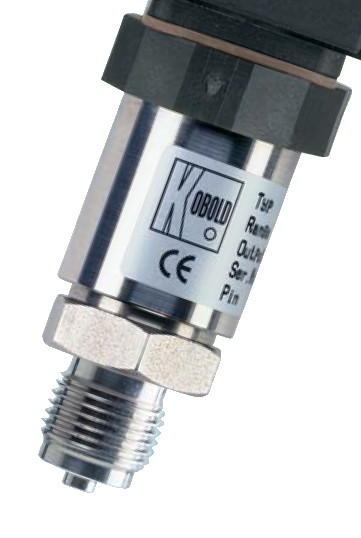

Kobold SEN OEM Pressure Transmitter
The Kobold SEN series pressure transmitters combine the reliability of a solid state ceramic sensor at a great price point. The SEN series is available in accuracy classes of either ±1.0% or ±0.5% of full scale value. 4-20 mA, 0-5 VDC or 0-10 VDC outputs are available allowing the SEN to interface with any control system, recorder or process display. The heart of the SEN is its ceramic piezo-resistive sensing element. Ceramic sensors are known for exceptionally long cycle life with virtually no calibration drift. These features, along with the compact, robust stainless steel package, make the SEN an ideal choice for OEM applications. Call for OEM price plans and private labelling.
Features
- Ranges 0-30” Hg Vacuum to 0-7500 PSIG
- 0.5% or 1.0% of Full Scale Accuracy
- 4-20 mA, 0-5 VDC or 0-10 VDC Outputs
- Ceramic Pressure Sensing System for High Cycle Life
- Economical Price for OEM Applications
- Includes Hirschmann connector

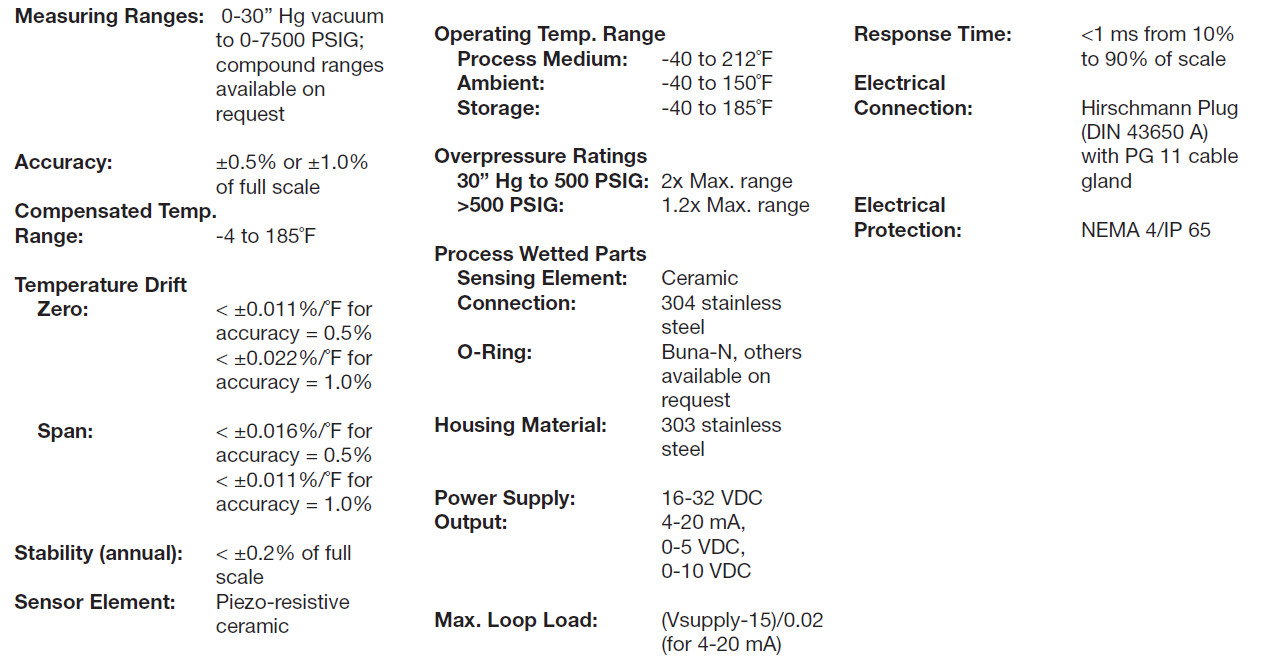

Technical Specifications
|
Kobold AUF is a universal display unit usable in all 4-20 mA transmission circuits. Sandwiched directly between a standard DIN 43650 (Hirschmann style) plug and socket assembly, the AUF is the easiest of displays to install.
| |
