Kobold AUF Compact Local Electronic Display
|
Item Number: AUF
Manufacturer: Kobold Instruments, Inc.
Part Number: AUF
Product Options
Kobold AUF Model Options
* Whole number only
|
|

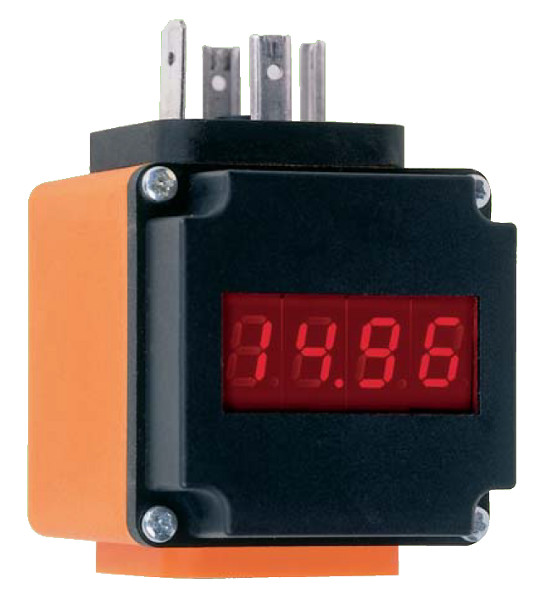

Kobold AUF Compact Local Electronic Display
The AUF is a universal display unit usable in all 4-20 mA transmission circuits. Sandwiched directly between a standard DIN 43650 (Hirschmann style) plug and socket assembly, the AUF is the easiest of displays to install. The AUF is fully scalable through two control buttons. Programming capabilities include scaling, decimal point location, damping and, for units with a switch, setpoint value. Power is provided to the AUF directly via the 4–20 mA loop, so no additional power supply is required. The programming information resides inside the AUF’s EEPROM memory, making the unit immune to power failures up to ten years in duration (time enough to put your kids through college). Small, easily installed… the AUF is the ideal way to get more from your transmitter. Now you can have your signal, and see it too.
Features
- Local Indication for Transducers & Transmitters
- 4-20 mA Loop-Power Driven
- Works with Standard DIN 43650 Hirschmann® Plug
- 4 Digit Accuracy
- Switch Available
|
