Kobold PS-5000 OEM Paddle Flow Switch
|
Item Number: PS-5000

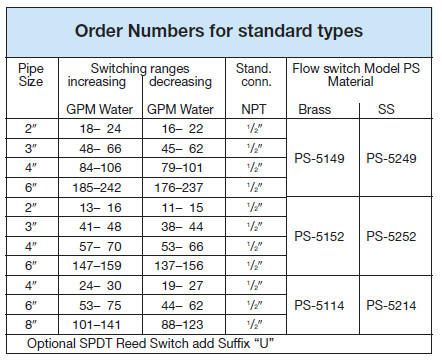

Configuration: PS-5152
Manufacturer: Kobold Instruments, Inc.
Part Number: PS-5000
Product Options
* denotes required field
Kobold PS-5000 Model Selection*
You must select an option for 'Kobold PS-5000 Model Selection'.
Kobold PS-5000 Cable Options
Kobold PS-5000 Switch Output Options
* Whole number only
|
|

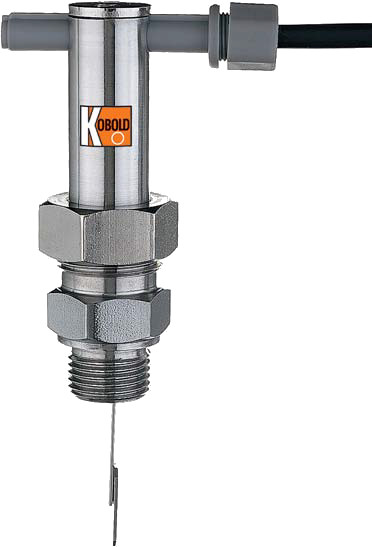

Kobold PS-5000 OEM Paddle Flow Switch
KOBOLD paddle type flow switches can be used wherever a simple economic yet reliable monitoring instrument is required for flow switching applications. The device operates as follows: The flowing medium presses against the paddle of the KOBOLD flow switch. The paddle is fitted to one end of a balance arm which is in direct contact with a pre-stressed leaf spring. At the other end of the balance arm is a permanent magnet. This magnet actuates a reed contact located within a moveable housing outside the media. The reed contact switches on or off depending on the position of the permanent magnet and the switch housing. The status of the switch may then be used to electrically control the fluid flow. The movable reed switch on the Kobold PSR/PS allows the contacts to be set either normally open (N/O) or normally closed (N/C).
Features
- Switch Point Adjustable
- Easy to Install
- Brass or SS Construction
- Low Cost
- Maximum Pressure: 1450 PSIG (most models)
  Technical SpecificationsMaximum Temperature: 230°FMaximum Pressure: 1450 PSIG(NOTE: 360 PSIG max for PSR-5132 & PSR-5140)Materials:Paddle: SS 304Leaf Spring: SS 301Beam: SS 301Locking Plate: brass or SS 304Contact Housing: Polyamid, glass reinforced, NEMA 4Cable: PVCO-Ring: Buna-N for brass units; Viton for SS unitsContact: Reed-switch SPST, N/O or N/C (SPDT Optional)Maximum Contact Ratings: 50 VA, (50 Watt, 250 VAC, 1.5A)Standard Cable Length: 5ftOrientation: Horizontal PipesMax Flow: 5x switching range increasing
|
Kobold PSR-5100 (Brass) can be used wherever a simple economic yet reliable monitoring instrument is required for flow switching applications.
|
Kobold PSR-5200 (Stainless Steel) can be used wherever a simple economic yet reliable monitoring instrument is required for flow switching applications.
|
