Kobold NSE Stainless Steel Float Level Switch

Our Price: $1,074.00
Item Number: NSE
Manufacturer: Kobold Instruments, Inc.
Part Number: NSE

Product Options

* denotes required field

Model Selection*
Kobold NSE Option

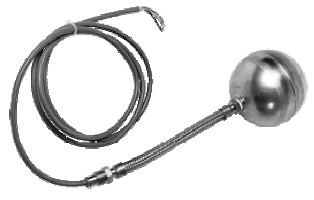

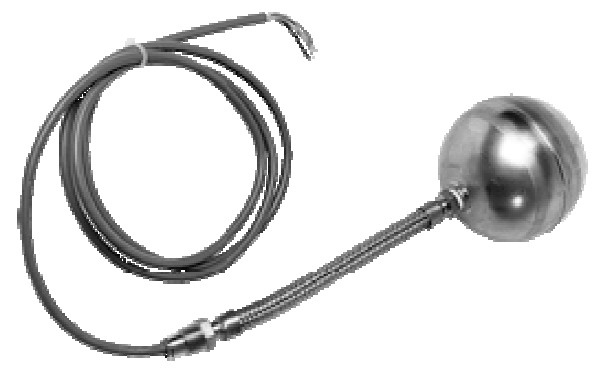

Kobold NSE Stainless Steel Float Level Switch
Kobold NSE Stainless Steel Float Level Switch

The KOBOLD NSE Series stainless steel tethered float level switches enable liquid levels to be monitored easily and reliably. Tank levels may be conveniently controlled by the installation of two floats, one as a minimum level, the other as a maximum and then connected to a latching relay (sold separately) for automatic tank level control. These stainless steel float level switches can be installed wherever magnetic liquid level switches are unsuitable due to the risk of the float jamming with debris or coating-type media. All types of compatible liquids, including hot, contaminated or pulp-like media may be monitored with the KOBOLD NSE Series stainless steel float level switch.


Features
  • For All Types of Compatible Liquids
  • SPDT Reed Switch (Mercury-Free)
  • 316 Stainless Steel Wetted Construction
  • 302°F Maximum Temperature
  • 220 PSIG Maximum Pressure
  • Cylindrical or Ball Float Design

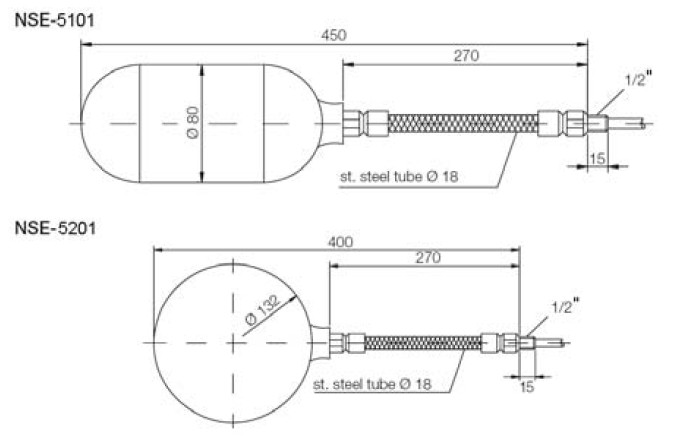

Dimensions

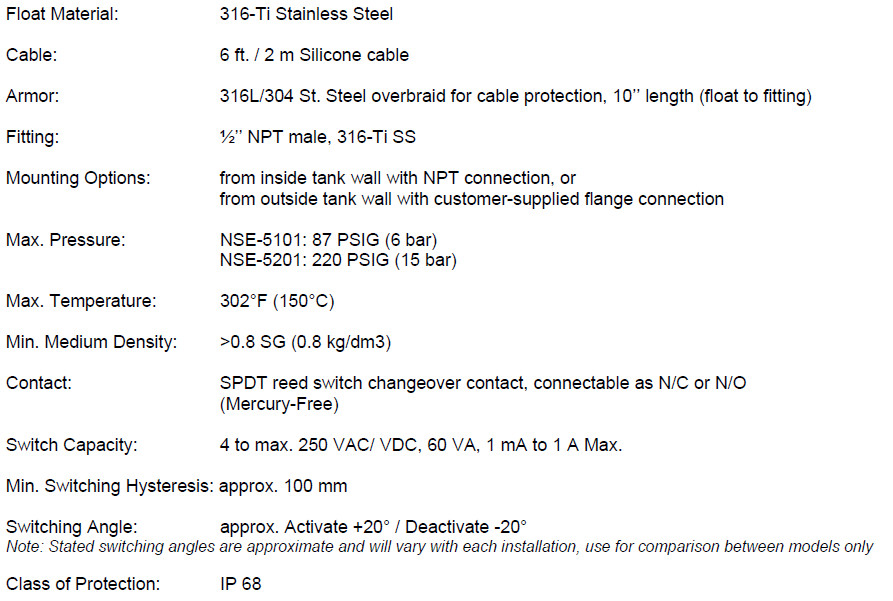

Technical Specifications
