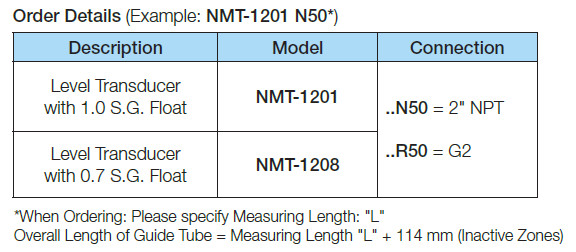

Model Selection*
You must select an option for 'Model Selection'.
* Whole number only
|
|
Call for custom length quote
Free shipping not offered for this product

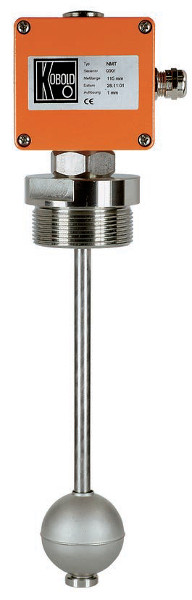

Kobold NMT Magnetostrictive Level Meter
The NMT Series consists of a magnetostrictive sensor in the measuring tube and an integral, four-wire transmitter with the connection box. This meter utilizes the principle of echo time measurement. The current pulses are transmitted through the wire and produce an annular magnetic field around the wire. The wire is then charged axially by magnets fitted internally to the float. A torsional impulse is generated when the magnetic fields align in which it spreads with ultrasonic speed in both directions. The NMT Series incorporated electronics converts the time signal to a standard 4-20 mA analog signal.
Features
- Measuring Length: 300...4000 mm
- Accuracy: ±1 mm
- Max. Pressure: 145 PSIG
- Media Temperature Range: -4...158 °F
- Material: Stainless Steel
- 4-20 mA, 4-Wire Analog Output
- Insensitive to Shock and Vibrations

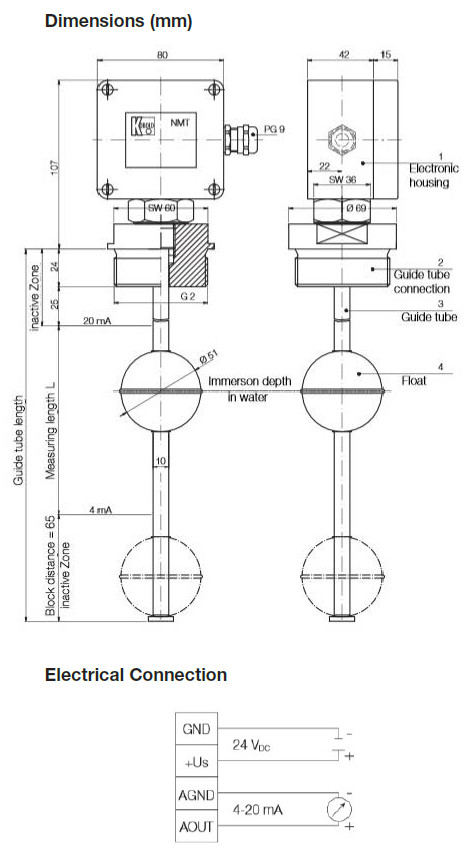

Dimensions
Technical Specifications
| Accuracy: |
±1 mm |
| Measuring Length: |
300...4000 mm |
| Length of Measuring Tube: |
Measuring Length + 114 mm |
| Overall Length: |
See Dimensional Drawings |
| Standard Float Density: |
1.0 S.G. (1.0 kg/dm3) |
| Special Float Density: |
0.7 S.G. (0.7 kg/dm3) |
| Operating Temperature: |
-4...158 °F |
| Max. Operating Pressure: |
145 PSIG |
| Materials |
|
| Connection: |
316L Stainless Steel |
| Measuring Tube: |
316L Stainless Steel |
Float:
|
UNS 32760 Stainless Steel
(1.0 S.G.)
316L Stainless Steel
(0.7 S.G.) |
| Connection Box: |
Aluminum w/ Cable Gland |
| Process Connection: |
2" NPT or G2 Male |
| Analog Output: |
4-20 mA, 4-wire |
| Load: |
500 Ω
|
Power Supply:
|
24 VDC ± 20%,
Max. 150 mA |
| Ingress Protection: |
IP 65 |
|
