Kobold DF Paddle Flow Sensor With Frequency Output (Brass/Poly, FNPT Thread)
|
Item Number: DF-0300
Manufacturer: Kobold Instruments, Inc.
Part Number: DF-0300
Product Options
* denotes required field
Kobold DF-0300 Flow Range Model Selection*
You must select an option for 'Kobold DF-0300 Flow Range Model Selection'.
* Whole number only
|
|

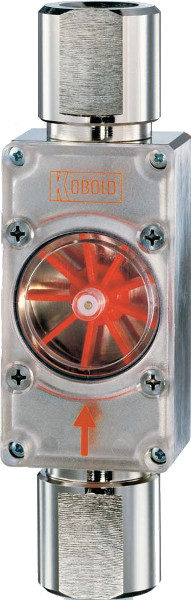

Kobold DF Paddle Flow Sensor With Frequency Output (Brass/Poly, FNPT Thread)
The KOBOLD DF series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals. The DF is a compact flow sensor which employs permanent magnets embedded in a rotating paddle wheel. A Hall-effect sensor detects the magnet passing and provides an output which is proportional to flowrate. The DF sensor is supplied with a pulse frequency output. The compact size, variety of material combinations and economical price make the DF a perfect flow sensor for many industrial or OEM applications.
Feature
- ±2.5% of Full Scale Accuracy
- Frequency Output
- Easy to Install, No Straight Run Required
- Robust and Reliable

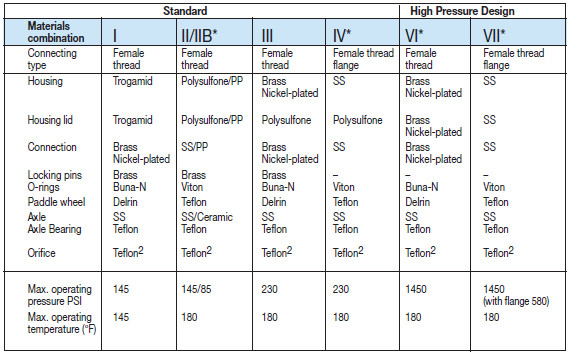

- 7 Different Material Combinations Available
Technical Specifications
| Measuring Range |
0.02-0.14 GPM 1.5-36 GPM water |
| Fitting |
1/4" - 1-1/2" NPT, 1/2" - 1-1/2" ANSI flange |
| Material |
Ni-Plated Brass, SS, Trogamid, Polysulfone, PVDF |
| Max. Pressure Ranges |
85-1450 PSIG |
| Max. Temperature |
180°F |
| Accuracy |
± 2.5% FS |
| Electrical Output |
Pulse Frequency |

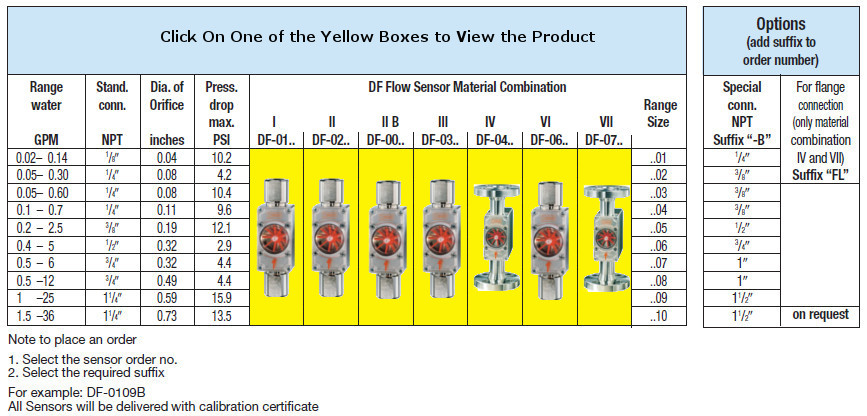

Order Information
|
Kobold DF-0100 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-0200 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-0000 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-0600 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-0400 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-7300 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-0700 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-8300 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
|
Kobold DF-4300 series paddlewheel flow sensor offers the variety of seven material combinations, allowing the DF to stand up to a multitude of low-viscosity liquids and aggressive chemicals.
| |
